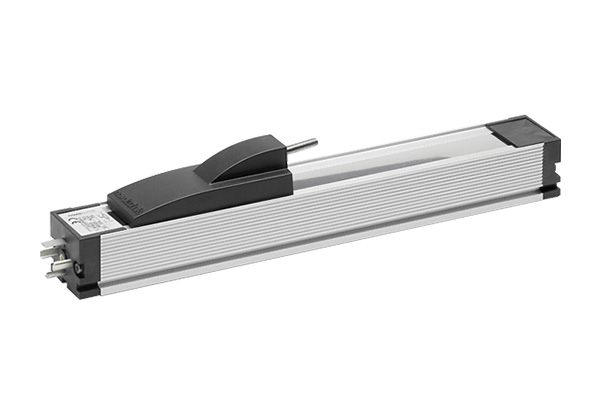

TLH Potentiometric Linear Scale

TLH Potentiometric Linear Scale are used for linear position control and distance measurement. Thanks to the ball joint connection, they are not affected by axial misalignments. They provide precise and long-lasting position measurement while occupying minimal space with their rodless and top-sliding design.

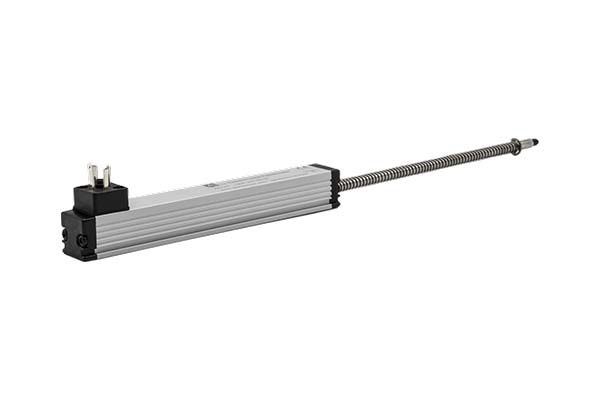

LWH Potentiometric Linear Scale

The LWH Series Potentiometric Linear Scales operate linearly based on the potentiometric (resistive) principle. They provide precise and long-lasting position measurements. Thanks to their shaft's narrow bearing tolerance and the surface coated with special material, they can measure at very high speeds.

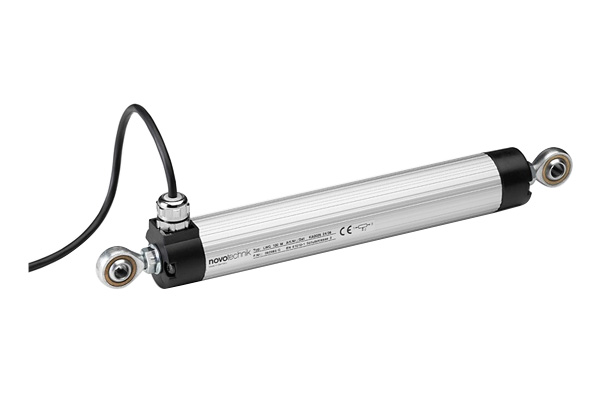

LWG Potentiometric Linear Scale

LWG Series Potentiometric Linear Scales operate linearly based on the potentiometric (resistive) principle. They provide precise position measurement with a durable body and allow for easy installation thanks to the movable joints (ball joints) at both ends. They also enable the measurement of expansion in angular measurements.

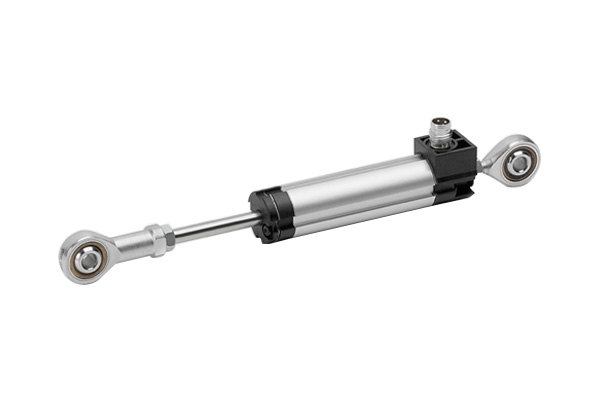

TEX Potentiometric Linear Scale

TEX Series Potentiometric Linear Scales operate linearly based on the potentiometric (resistive) principle. They provide precise position measurements. These scales are cost-effective, designed with a compact and small form, making them easy to install. They offer three different body options: hinged, rod, and spring-loaded.

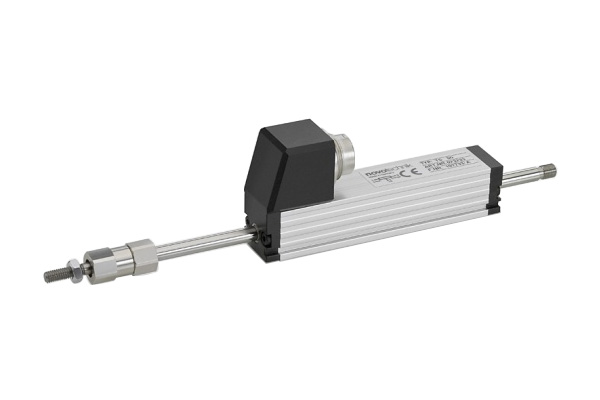

T Potentiometric Linear Scale

T Series Potentiometric Linear Scales operate linearly based on the potentiometric (resistive) principle. They offer precise and cost-effective position measurement. With a compact design and the ability to operate at high speeds, they provide a high repeatability value of 0.002 mm.

TS Potentiometric Linear Scale

TS Series Potentiometric Linear Scales operate linearly based on the potentiometric (resistive) principle. They provide precise and cost-effective position measurements. With a compact design and the ability to operate at high speeds, they offer a high repeatability value of 0.002 mm.

TR Potentiometric Linear Scale

TR Series Potentiometric Linear Scales operate linearly based on the potentiometric (resistive) principle. They provide precise and cost-effective position measurements. With a compact design and the ability to operate at high speeds, they feature a spring mechanism that pushes the shaft outward. The scales offer a high repeatability value of 0.002 mm.

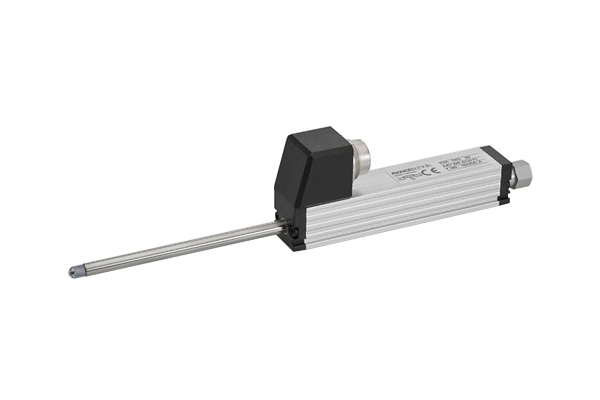

TRS Potentiometric Linear Scale

TRS Series Potentiometric Linear Scales operate based on the potentiometric (resistive) principle, providing precise and cost-effective position measurement. They feature a compact design, the ability to operate at high speeds, and a spring-loaded push rod mechanism. With a high repeatability value of 0.002 mm, these linear scales ensure accurate and reliable performance.

KL Potentiometric Linear Scale

KL Series Linear Scales operate based on the potentiometric principle, providing precise and cost-effective position measurement. They feature a compact design and the ability to operate at high speeds. An optional return spring is available.

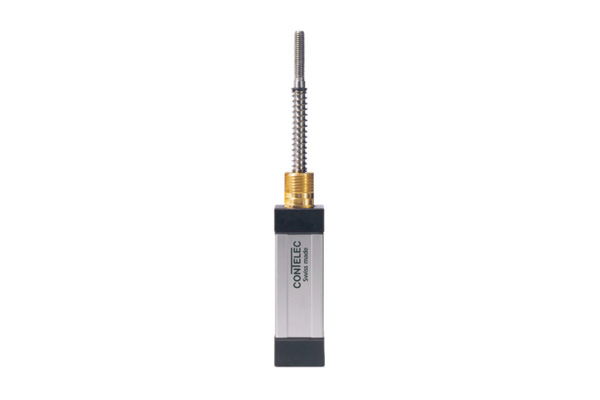

KLR Potentiometric Linear Scale

KLR Series Linear Scales operate based on the potentiometric principle, providing precise and cost-effective position measurement. They feature a compact design and the ability to operate at high speeds. An optional return spring is available.

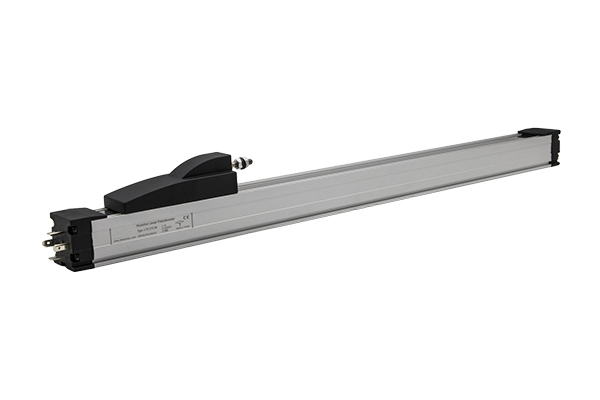

LTK Linear Potentiometer

LTK Series Potentiometric Linear Scales feature a shaftless and sliding system as their most distinctive characteristic. They offer potentiometric, 4-20 mA (optional 0-20 mA), or 0-10V analog output options. Available in stroke lengths up to 1000 mm.

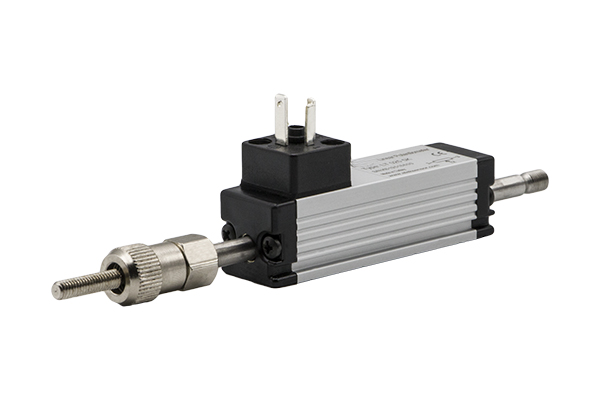

LT Linear Potentiometer

LT Series potentiometric linear scales are distinguished by their compact size, making them ideal for use in tight spaces. They offer 4-20 mA (optional 0-20 mA) or 0-10V analog output options and are available with stroke lengths up to 300 mm.

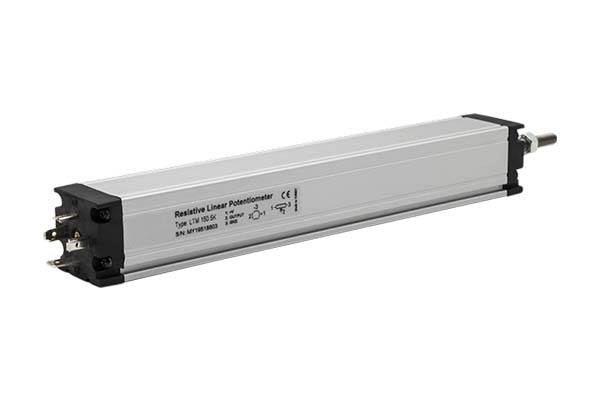

LTM Linear Potentiometer

LTM Series potentiometric linear scales are the most commonly used models in industry. They offer 4-20 mA (optional 0-20 mA) or 0-10V analog output options. Stroke lengths are available up to 1000 mm.

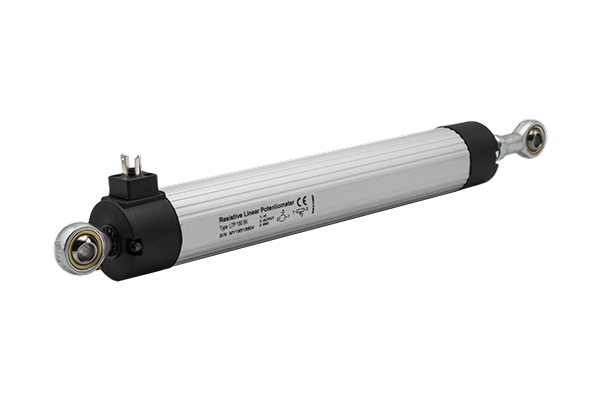

LTP Linear Potentiometer

LTP Series potentiometric linear scales are distinguished by their double-sided hinged design. They offer 4-20 mA (optional 0-20 mA) or 0-10V analog output options. Stroke lengths are available up to 1000 mm.

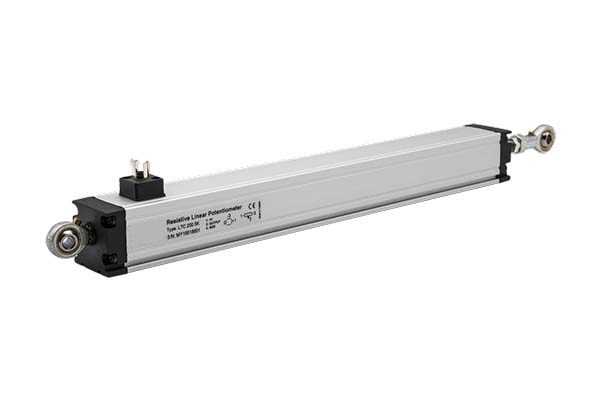

LTC Linear Potentiometer

LTC Series potentiometric linear scales are distinguished by their double-sided hinged design. They offer 4-20 mA (optional 0-20 mA) or 0-10V analog output options. Stroke lengths are available up to 1000 mm.

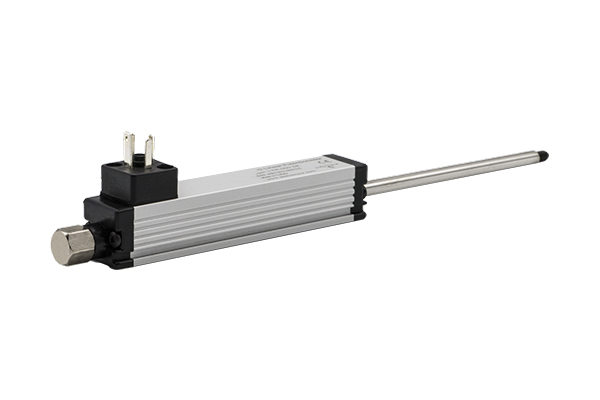

LTR Linear Potentiometer

The LTR series potentiometric linear rulers feature a key characteristic: a spring return mechanism. They offer analog output options of 4-20 mA (optional 0-20 mA) or 0-10V. Stroke lengths are available up to 300 mm.

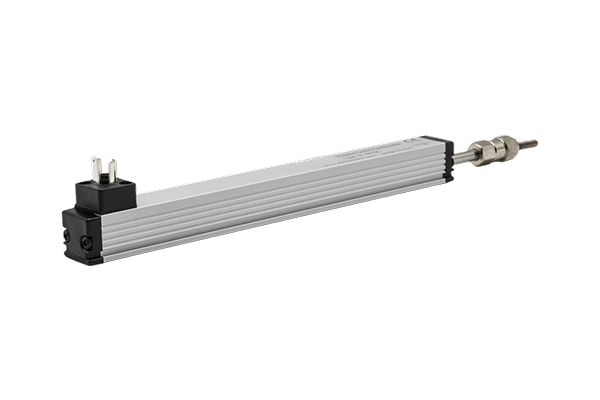

LF Linear Potentiometer

The LF series potentiometric linear rulers are designed so that the moving rod does not extend from the back of the ruler. They offer analog output options of 4-20 mA (optional 0-20 mA) or 0-10V. Stroke lengths are available up to 300 mm.

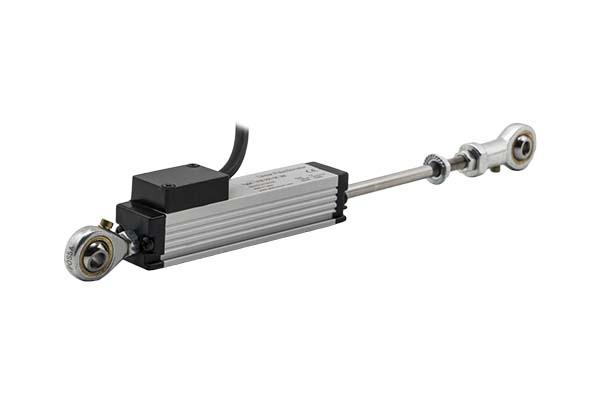

LFM Linear Potentiometer

The LFM series potentiometric linear rulers can be used to measure linear or angular movements thanks to their double-jointed housing on both sides. They offer analog output options of 4-20 mA (optional 0-20 mA) or 0-10V. Stroke lengths are available up to 300 mm.

LFR Linear Potentiometer

The LFR series potentiometric linear rulers can be used as a probe/taster thanks to their spring return rod design. They offer analog output options of 4-20 mA (optional 0-20 mA) or 0-10V. Stroke lengths are available up to 300 mm.
