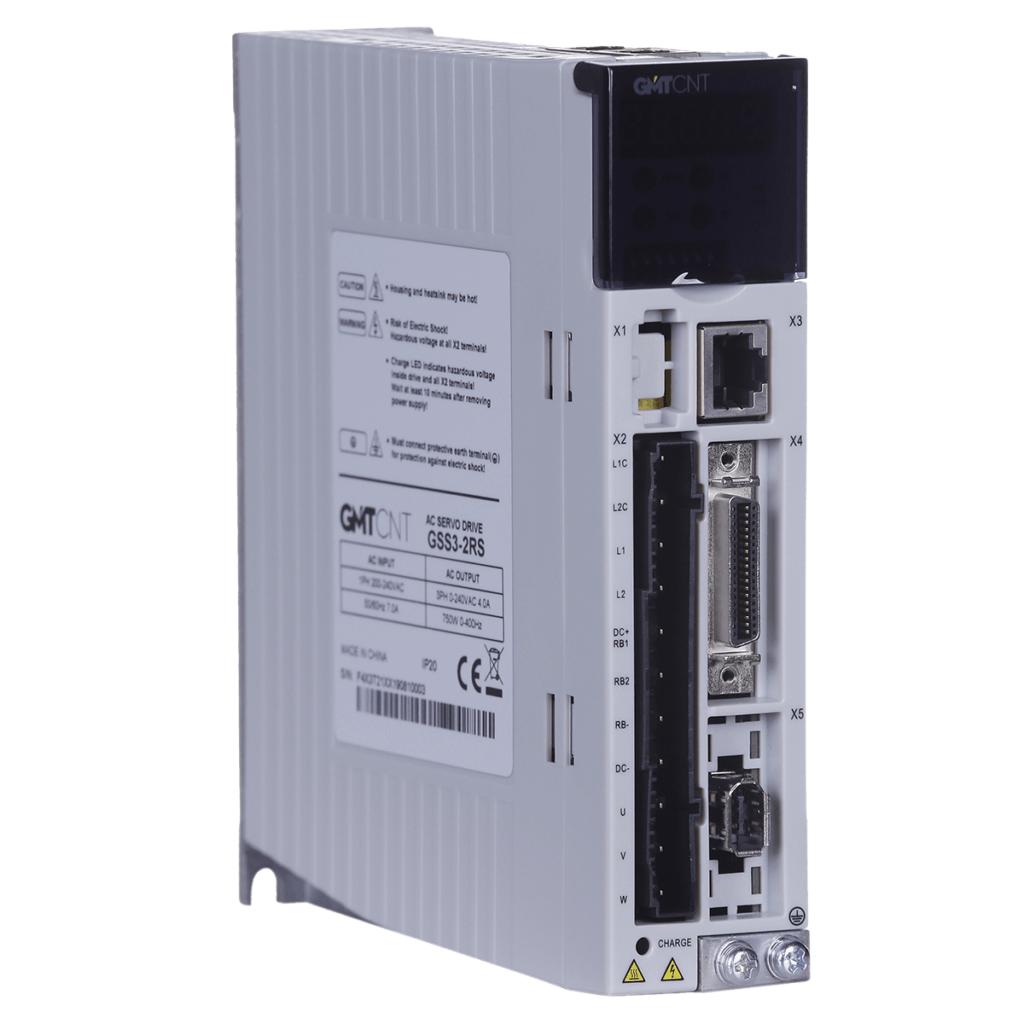

GSS3-2RS / GSS3-2EC

It operates with 200-750W motors, feedback via Nikon Encoder, and 200-240VAC power supply. It offers position, speed, and torque control, and provides Modbus RTU and EtherCat communication support. With protection functions such as overvoltage and overheating, as well as analog/digital input and output, it ensures safe and efficient performance.

GSS3-3RS / GSS3-3EC

It works with 1-2 kW motors to provide position, speed, and torque control. Nikon Encoder feedback, Modbus RTU, and EtherCat communication are supported. With 7 digital inputs, 5 digital outputs, 2 analog inputs, and protection functions, it ensures reliable performance in automation applications.

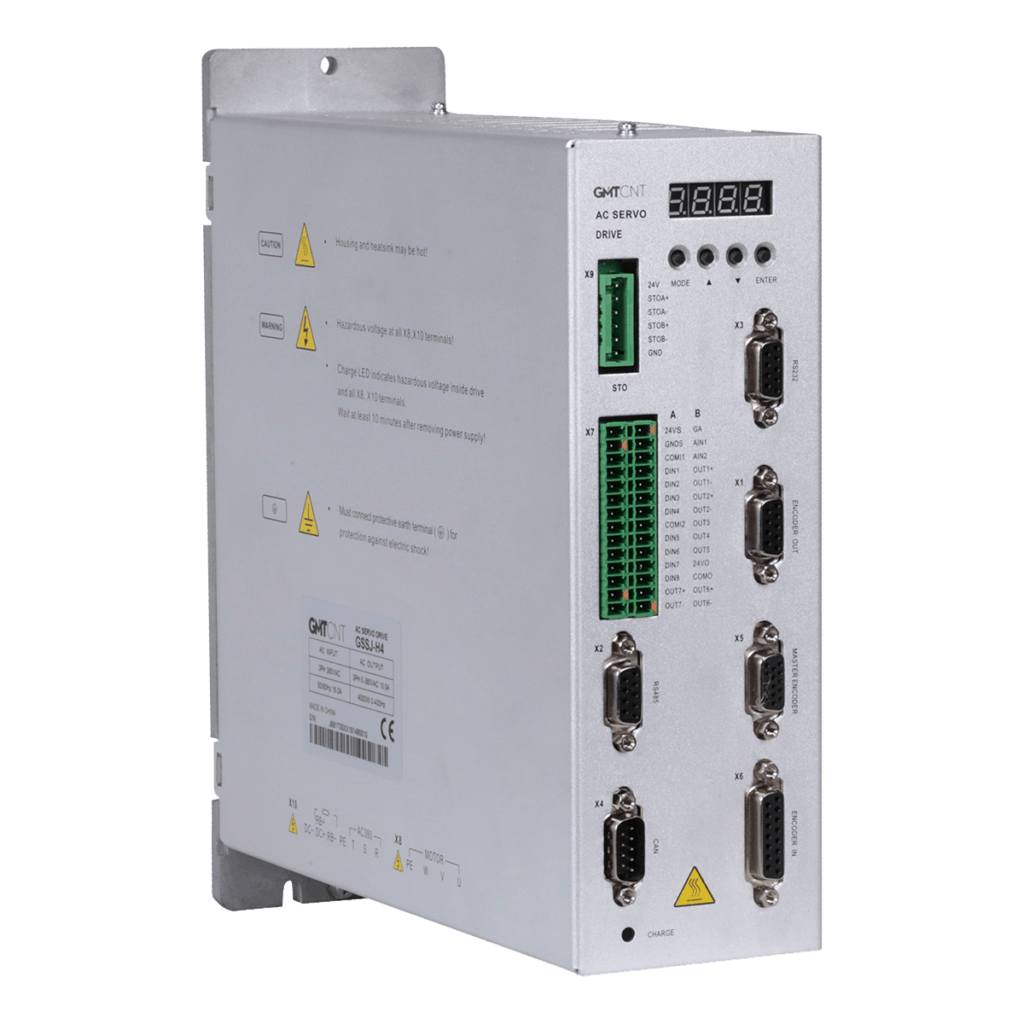

GSSJ-H4

It works with 3-3.5 kW three-phase motors to provide precise position, speed, and torque control. With features like Modbus RTU support, 8 digital inputs, 7 digital outputs, 2 analog inputs, and brake control, it is suitable for a wide range of automation applications. It ensures reliability with built-in protection functions.

GSSJ-H5

It works with 4.4 kW three-phase motors to provide precise position, speed, and torque control. With Modbus RTU, 8 digital inputs, 7 digital outputs, 2 analog inputs, and 24VDC brake control, it offers a wide range of features. It ensures safe and stable operation with overvoltage, undervoltage, short circuit, and overheating protection functions.

GSM80F-0750W-20B-30D-KLY

The 750W servo motor, featuring an 80mm flange connection, 19mm shaft diameter, and 2.39Nm torque, provides high precision and stability with its 20-bit Nikon encoder. It offers an effective solution for test devices, presses, cutting, filling, packaging, and plastic machines, making it an excellent choice for automation needs.

GSM80F-0750W-20B-30D-KLY-B

The 750W brake servo motor provides precise positioning and control with an 80mm flange connection, 19mm shaft diameter, and 2.39Nm torque. Its 20-bit Nikon encoder ensures stable speed and torque management. It is a preferred choice for efficient and reliable solutions in test devices, presses, cutting, filling, packaging, and plastic machinery.

GSM130F-1000W-16B-20D-MC

The 1000W servo motor, with a 130mm flange connection, 22mm shaft diameter, and a 4.8Nm torque capacity, offers exceptional performance. Thanks to its 20-bit Nikon encoder, it provides precise speed, position, and torque control. It is an effective and reliable solution for test devices, presses, cutting, filling, packaging, plastic, and food machinery.

GSM130F-1000W-16B-20D-MCB

The 1000W brake servo motor, with a 130mm flange connection, 22mm shaft diameter, and a 4.8Nm torque capacity, provides a precise and reliable solution. Its 20-bit Nikon encoder ensures superior speed, position, and torque control. It is widely used in test devices, presses, cutting, filling, packaging, plastic, and food machinery.

GSM130F-1500W-16B-20D-MC

The 1500W servo motor, with a 130mm flange connection and 22mm shaft diameter, offers efficient performance. Its 20-bit Nikon encoder provides precise speed, torque, and position control. With a torque capacity of 7.2Nm, this stable-performing motor is ideal for test devices, presses, cutting, filling, packaging, plastics, and food machinery.

GSM130F-1500W-16B-20D-MCB

The 1500W brake servo motor, with a 130mm flange connection and 22mm shaft diameter, delivers powerful performance. Its 20-bit Nikon encoder provides precise speed, torque, and position control. With a torque capacity of 7.2Nm, this stable-performing motor is widely used in test devices, presses, cutting, filling, packaging, plastics, and food machinery.

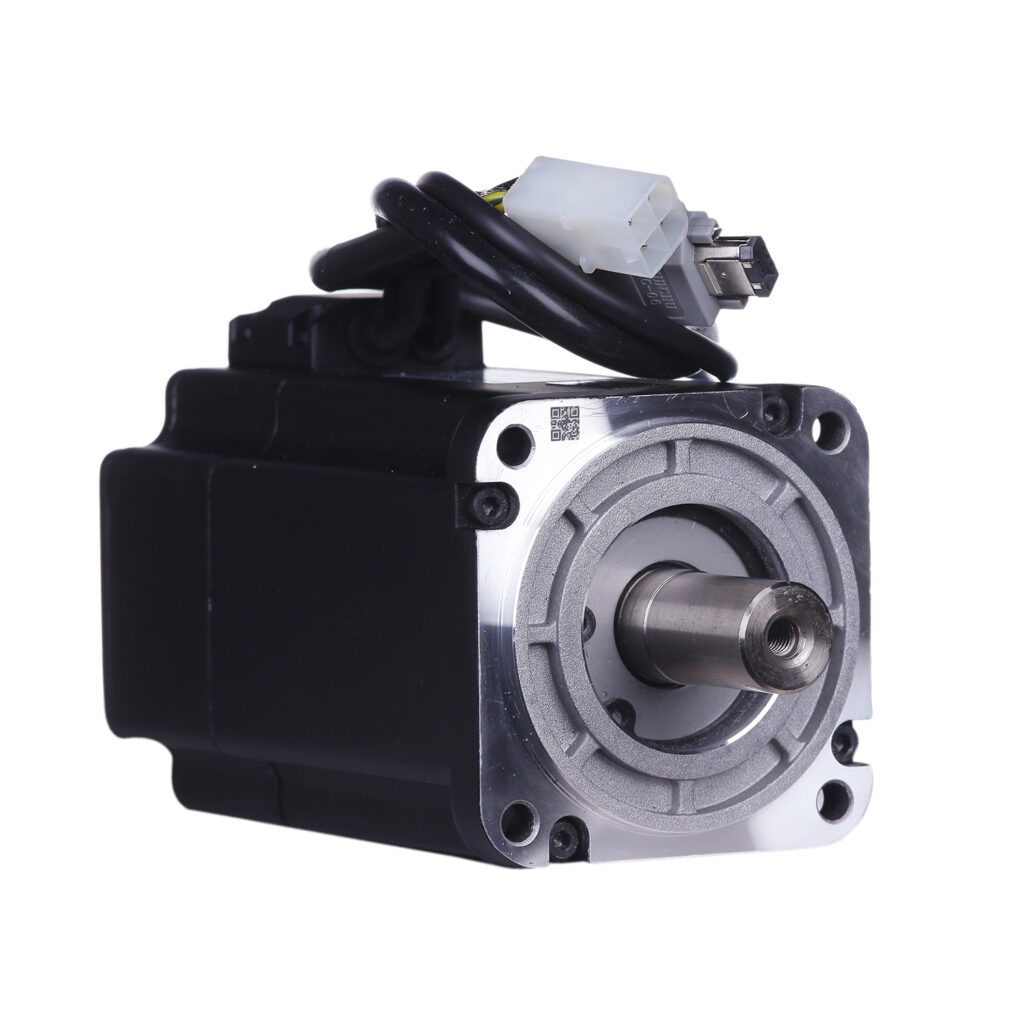

GSM130F-2000W-16B-20D-MC

The 2000W servo motor, with a 130mm flange connection and 22mm shaft diameter, delivers powerful performance. Its 20-bit Nikon encoder ensures precise speed, torque, and position control. With a torque capacity of 9.6Nm, this stable-performing motor is widely used in test devices, presses, cutting, filling, packaging, plastics, and food machinery.

GSM130F-2000W-16B-20D-MCB

The 2000W brake servo motor, with a 130mm flange connection and 22mm shaft diameter, delivers powerful performance. Its 20-bit Nikon encoder provides precise speed, torque, and position control. With a torque capacity of 9.6Nm, this motor is widely used in test devices, presses, cutting, filling, packaging, plastics, and food machinery.

GS180D-350-15AYK-4HC

The 3.5kW servo motor, with a 180mm flange connection and 42mm shaft diameter, delivers powerful performance. Its 2500 pulse internal encoder ensures precise speed, torque, and position control. With a speed of 1500rpm and a torque capacity of 22Nm, it is ideal for industrial applications. This motor is widely used in test devices, presses, cutting, filling, packaging, plastics, and food machinery.

GS180D-350-15AFK-4HC

The 3.5kW brake servo motor offers efficient performance with microprocessor and semiconductor technology. With its 3.5kW power, 180mm flange connection, and 42mm shaft diameter, it delivers strong performance. Its 2500 pulse encoder provides precise speed, torque, and position control. With a speed of 1500rpm and a torque capacity of 22Nm, it is suitable for industrial machines.

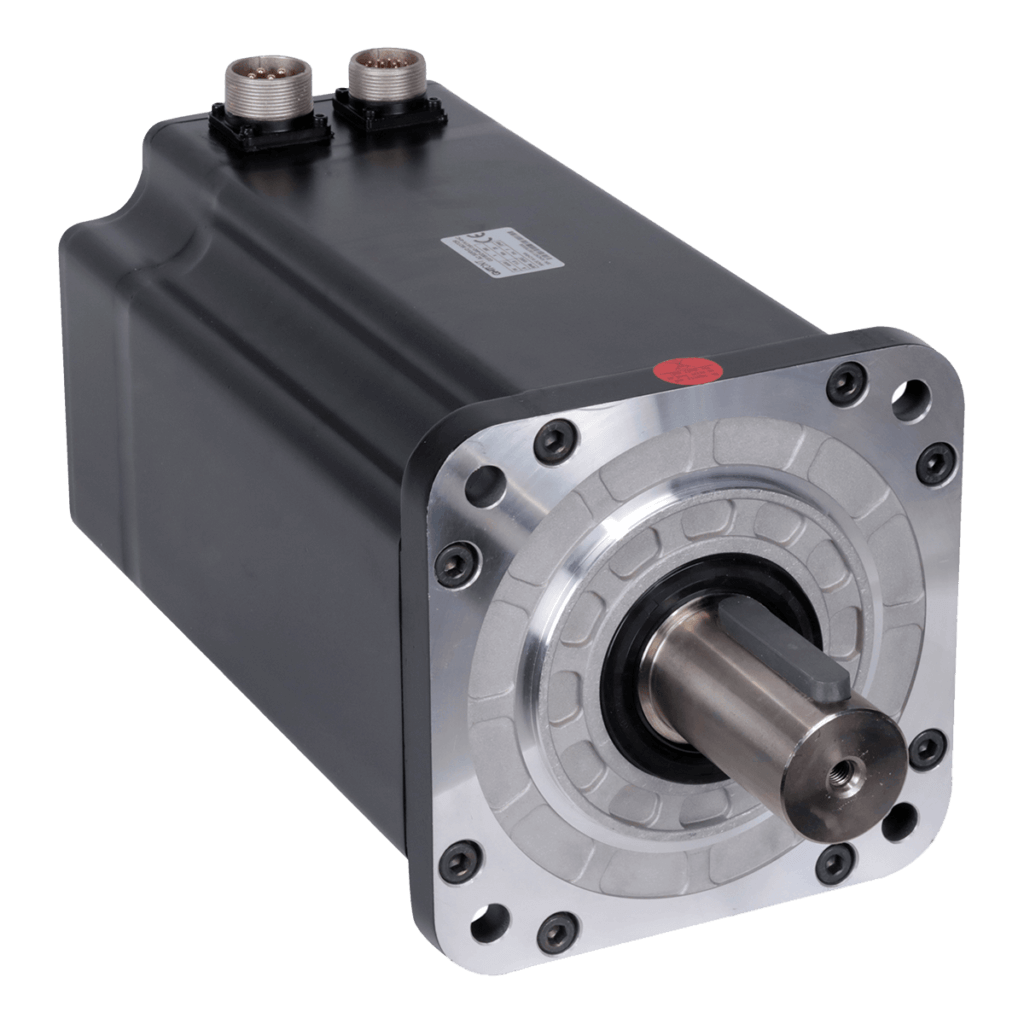

GS180D-440-15AYK-4HC

The 4.4kW servo motor, with a 180mm flange connection and 42mm shaft diameter, delivers powerful performance. Its 2500 pulse internal encoder provides precise speed, torque, and position control. With a speed of 1500rpm and a torque capacity of 28Nm, it is suitable for use in test devices, presses, cutting, filling, packaging, plastics, and food machinery.

GS180D-440-15AFK-4HC

The 4.4kW brake servo motor delivers high performance with a 180mm flange connection and a 42mm shaft diameter. Its 2500 pulse internal encoder provides precise speed, torque, and position control. With a speed of 1500rpm and a torque capacity of 28Nm, it is suitable for use in test devices, presses, cutting, filling, packaging, plastics, and food machinery.

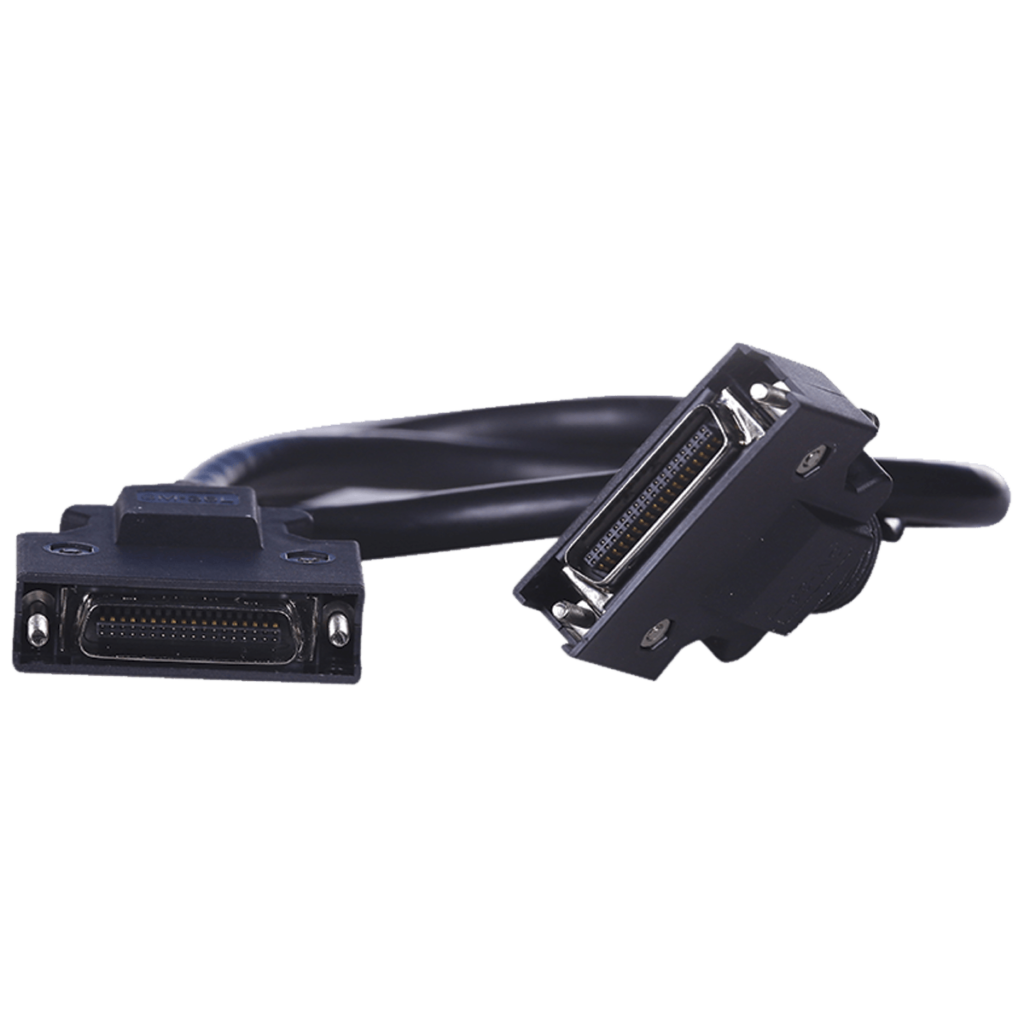

S-36E-C

It provides easy installation inside the panel with S-BT-36.

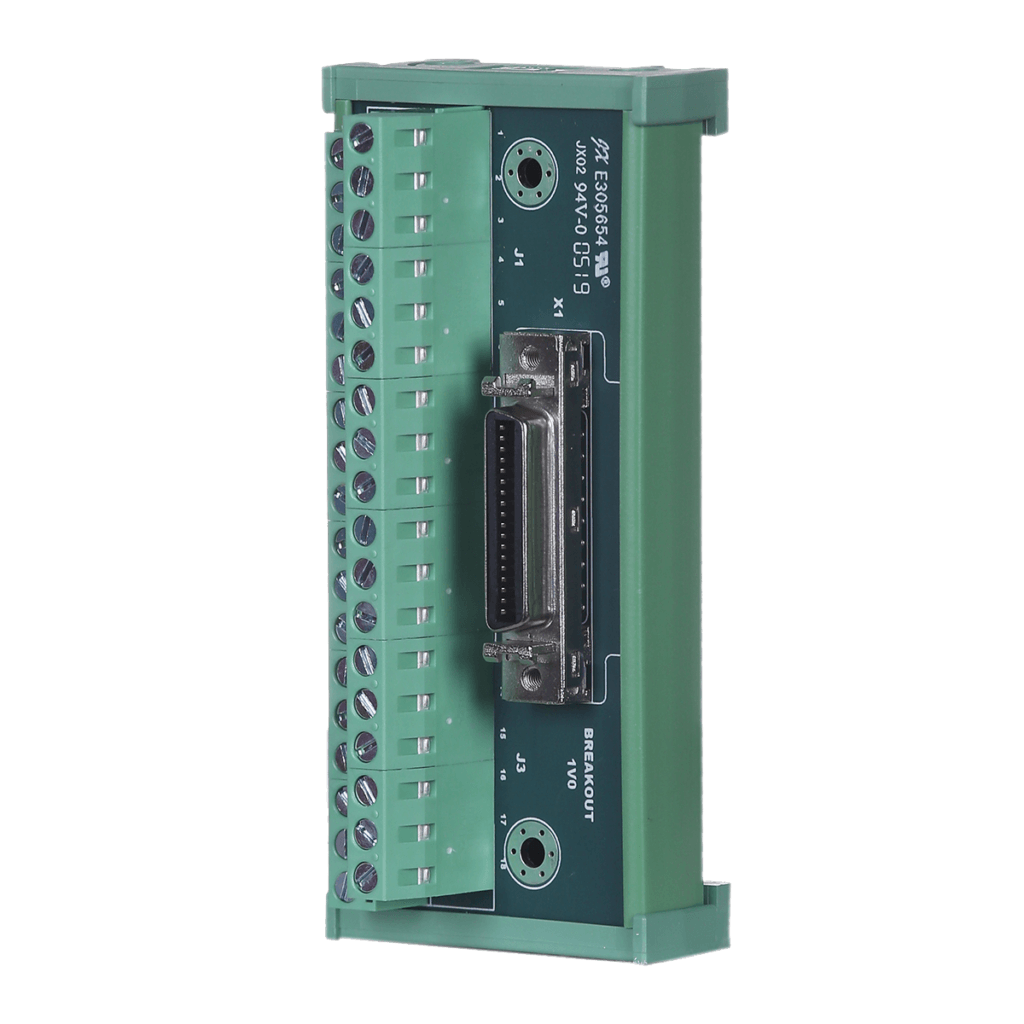

S-BT-36

It provides easy installation inside the panel when used with S-36E-C.
