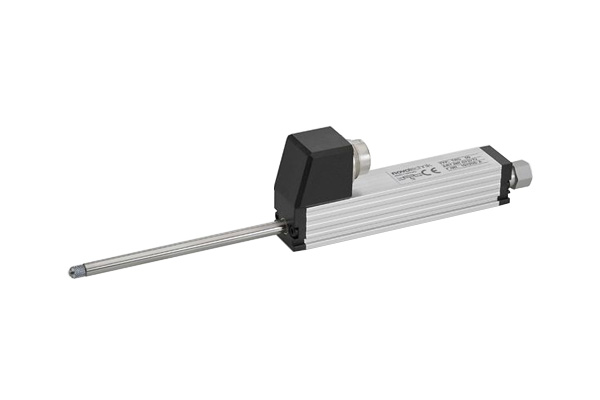

    TRS Potentiometric Linear Scale

    TRS Series Potentiometric Linear Scales operate based on the potentiometric (resistive) principle, providing precise and cost-effective position measurement. They feature a compact design, the ability to operate at high speeds, and a spring-loaded push rod mechanism. With a high repeatability value of 0.002 mm, these linear scales ensure accurate and reliable performance.

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    TRS SERIES LINEAR POTENTIOMETER

    The TRS Series Potentiometric Linear Scales from the German company Novotechnik operate based on the potentiometric (resistive) principle for linear measurement.

    The TRS Series Linear Scales are produced with a spring-loaded mechanism.

    Thanks to the return spring, Novotechnik TRS Series Scales function as a TASTER.

    With TRS Series Linear Potentiometers, tension control and tension adjustment can be performed.

    They measure without being attached to the material, relying only on contact-based sensing.

    The TRS Series Scales are used for thickness, position, and continuous motion material control measurements.

    Thanks to their compact structure, TRS Series Scales allow easy installation in very tight spaces.

    Potentiometric Linear Scales are highly precise due to their polymer-coated high-quality resistive tracks and platinum/silver-coated multi-contact spring contacts.

    With high linearity, they provide smooth analog signals and are highly durable.

    As analog devices, they do not lose position information in case of power outages.

    They do not miss rapid movements and always maintain accurate position information.

    They are resistant to vibration and impacts.

    Novotechnik minimizes production losses with its high repeatability value.

    Resolution < 0.01 mm
    Operating Temperature -30°C ... +100°C
    Operating Speed 5 m/s
    Electrical Connection 5-pin connector M16x0.75 (IEC 130-9), other connectors available upon request
