    LWG Potentiometric Linear Scale

    LWG Series Potentiometric Linear Scales operate linearly based on the potentiometric (resistive) principle. They provide precise position measurement with a durable body and allow for easy installation thanks to the movable joints (ball joints) at both ends. They also enable the measurement of expansion in angular measurements.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

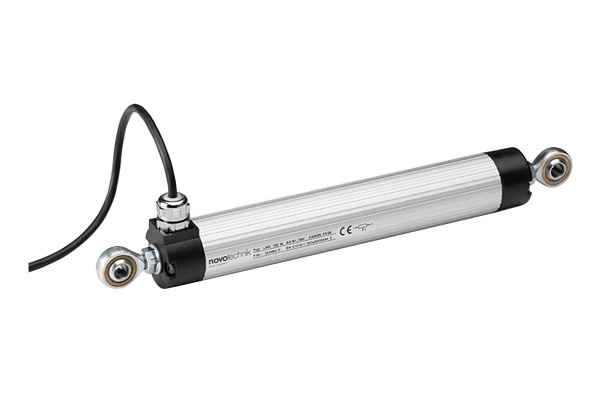

    LWG SERIES LINEAR POTENTIOMETER

    The LWG Series Potentiometric Linear Scales from German Novotechnik operate linearly based on the potentiometric (resistive) principle.

    The LWG series consists of industrial-type linear scales with dual-sided joints.

    They are mounted through the joint holes on both sides.

    They are used for linear and angular distance measurements.

    Potentiometric Linear Scales are highly precise due to their polymer-coated high-quality resistive tracks and platinum/silver-coated multi-finger spring contacts.

    With high linearity, they provide a smooth analog signal and have an exceptionally long lifespan.

    Since they are analog, they do not lose position data in case of power outages.

    They do not miss position readings even at high speeds, ensuring accurate real-time positioning.

    They are resistant to vibrations and impacts.

    Novotechnik minimizes production losses with its high repeatability value.

    Resolution < 0.01 mm
    Operating Temperature -30°C ... +100°C
    Operating Speed 5m/s
    Electrical Connection 4-pin round connector, M12x1 3-wire PVC cable, 3x0.34 mm, shielded, 1 m length
