    Universal PID Controllers

    Emos Group Industrial Electronics Industrial Automation and Control Universal PID Controllers

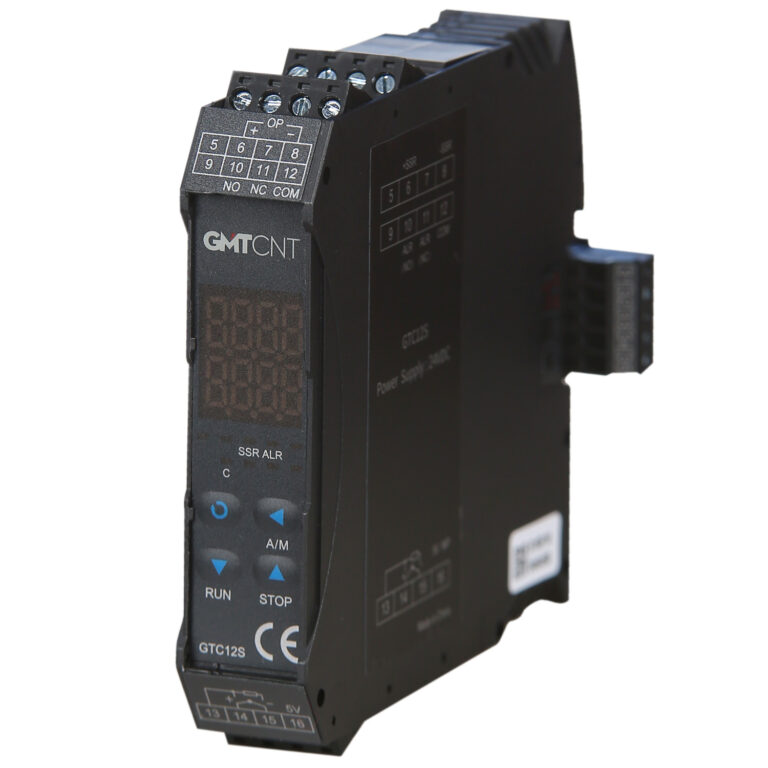

    GTC12S

    Universal Input, SSR Output, PID Control
    Power Supply 24VDC (-15%, +10%)
    Power Consumption ≤5W
    Supported Sensor Types Thermocouple: J, K, S, R, E, T, B, N, WRe3-WRe25, WRe5-WRe26, Cu50, Pt100
    DC Voltage 0 ~ 5V, 1 ~ 5V, 0 ~ 1V, 0 ~ 100mV, 0 ~ 20mV, 0 ~ 500mV, etc.

    PDF

    Whatsapp

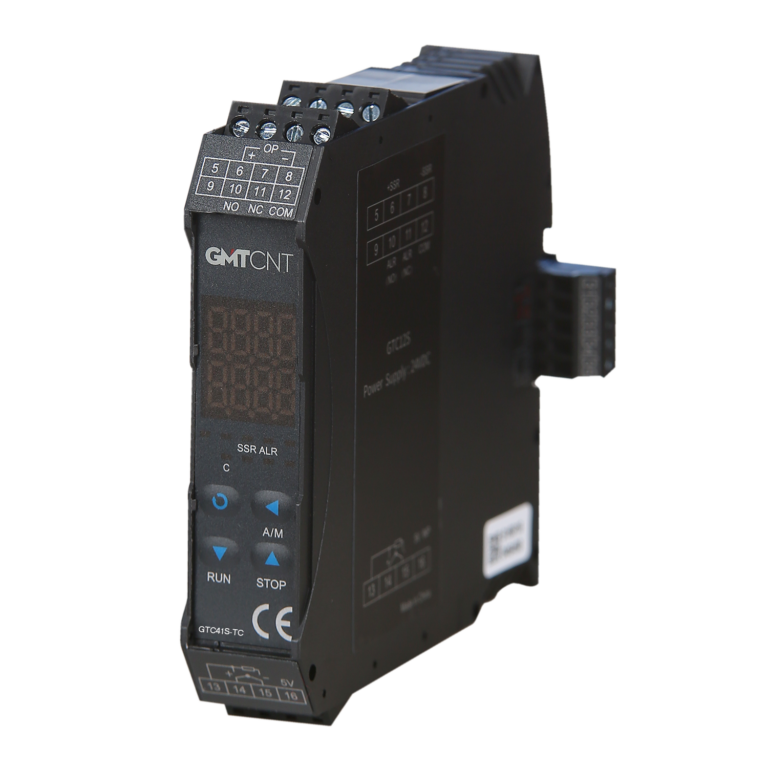

    GTC41S-TC

    4 Channel Thermocouple Input, 4 Channel SSR Output, PID Control
    Power Supply 24VDC (-15%, +10%)
    Power Consumption ≤5W
    Isolation Withstanding Voltage Between terminals ≥600V
    Supported Sensor Types Thermocouples: J, K, S, R, E, T, B, N, WRe3-WRe25, WRe5-WRe26

    PDF

    Whatsapp

    GTC41S-PT

    4 Channel PT-100 Input, 4 Channel SSR Output, PID Control
    Besleme 24VDC (-15%, +10%)
    Güç tüketimi ≤5W
    Desteklenen sensör tipleri Pt100
    Okuma aralığı Pt100(-200~+800℃ )、Pt100( -80.00~+300.00℃ )

    PDF

    Whatsapp

    GTC12A

    4-Channel Thermocouple Input, 4-Channel SSR Output, PID Control
    Power Supply 24VDC (-15%, +10%)
    Power Consumption ≤5W
    Supported Sensor Types Analog: 4-20mA/0-20mA Thermocouple: J, K, S, R, E, T, B, N, WRe3-WRe25, WRe5-WRe26, Cu50, Pt100
    DC Voltage 0 ~ 5V, 1 ~ 5V, 0 ~ 1V, 0 ~ 100mV, 0 ~ 20mV, 0 ~ 500mV, etc.

    PDF

    Whatsapp

    GTC12R

    Universal Input, Relay Output, PID Control
    Power Supply 24VDC (-15%, +10%)
    Power Consumption ≤5W
    Supported Sensor Types Analog: 4-20mA/0-20mA Thermocouple: J,K, S, R, E, T, B, N, WRe3-WRe25, WRe5-WRe26,Cu50, Pt100
    DC Voltage 0 ~ 5V, 1 ~ 5V, 0 ~ 1V, 0 ~ 100mV, 0 ~ 20mV, 0 ~ 500mV, etc.

    PDF

    Whatsapp

    GTC12S-D

    Universal Input, SSR+Relay Output (Heating/Cooling, Dual PID Control)
    Power Supply 24VDC (-15%, +10%)
    Power Consumption ≤5W
    Supported Sensor Types Thermocouple: J, K, S, R, E, T, B, N, WRe3-WRe25, WRe5-WRe26, Cu50, Pt100
    DC Voltage 0 ~ 5V, 1 ~ 5V, 0 ~ 1V, 0 ~ 100mV, 0 ~ 20mV, 0 ~ 500mV

    PDF

    Whatsapp

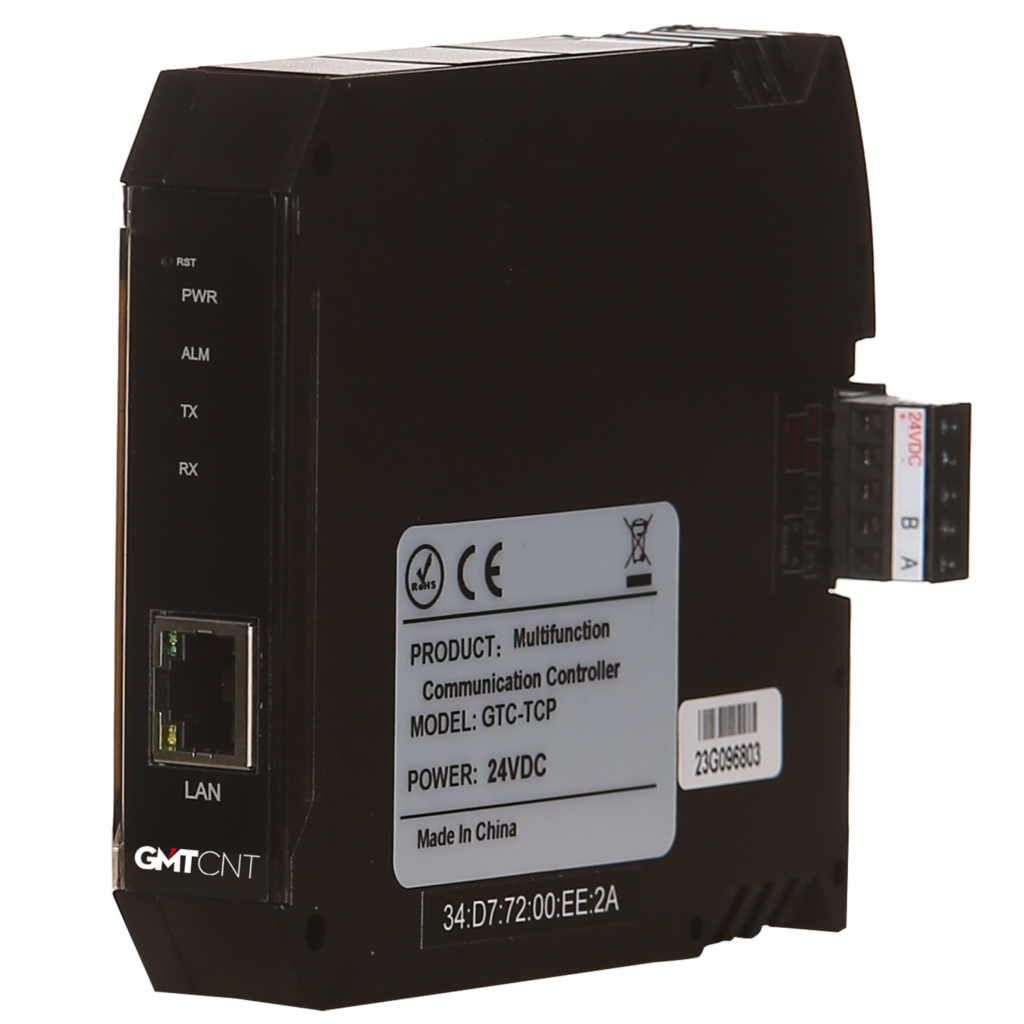

    GTC_TCP

    32 Channel Modbus TCP Module

    PDF

    Whatsapp

    GTC-ETCH

    8 Channel Ethernet Module
    Power Supply 24VDC, -15%, +10%
    Power Consumption ≤5W
    Supported Sensor Types Thermocouples: K, S, R, E, J, T, B, N, WRe3-WRe25, WRe5-WRe26, Cu50, Pt100
    DC Voltage 0 ~ 5V, 1 ~ 5V, 0 ~ 1V, 0 ~ 100mV, 0 ~ 20mV, 0 ~ 500mV, etc.
