    TEX Potentiometric Linear Scale

    TEX Series Potentiometric Linear Scales operate linearly based on the potentiometric (resistive) principle. They provide precise position measurements. These scales are cost-effective, designed with a compact and small form, making them easy to install. They offer three different body options: hinged, rod, and spring-loaded.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

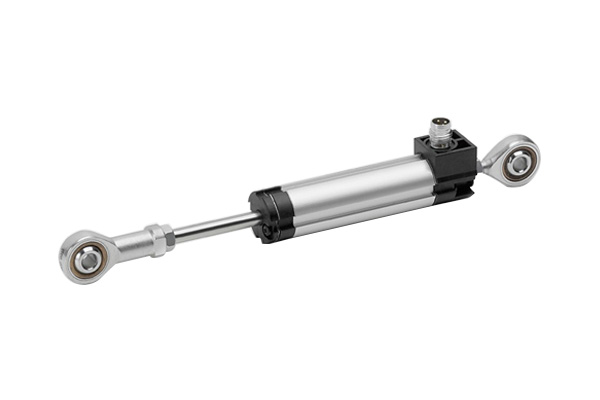

    TEX SERIES LINEAR POTENTIOMETER

    The TEX Series Potentiometric Linear Scales from the German company Novotechnik operate linearly based on the potentiometric (resistive) principle.

    The TEX series consists of dual-sided hinged type linear scales.

    TEX Series Potentiometric Scales are used for linear and angular position control and distance measurements.

    Thanks to their movable hinge, these scales are unaffected by parallel inaccuracies.

    The TEX Series scales offer easy installation in tight spaces due to their minimal design.

    Potentiometric Linear Scales are highly sensitive, thanks to their polymer-coated high-quality resistive tracks and platinum/silver-coated multi-finger spring contacts.

    They provide smooth analog signals with high linearity and have an exceptionally long lifespan.

    As analog devices, they do not lose position data in the event of a power outage.

    They do not miss position readings even during fast movements, ensuring accurate position information at all times.

    They are resistant to vibrations and impacts.

    Novotechnik minimizes production losses with its high repeatability value.

    Resolution < 0.01 mm
    Operating Temperature -40°C ... +80°C
    Operating Speed 5m/s
    Electrical Connection 3-pin round connector, M8x1 3-wire PVC cable, 3x0.14 mm, shielded, 2 or 5 meters length
