    Magnetic Rulers

    Emos Group Digital Measurement Systems Digital Measuring Rulers Magnetic Rulers

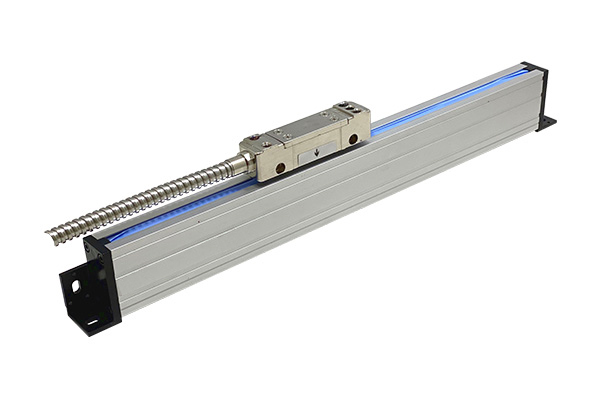

    EMS310 Magnetic Scales

    EMS310 Magnetic Scales are used in lathes, milling machines, boring machines, grinding machines, special machinery, and automation applications. They have a standard resolution of 5 µm (0.005). They are manufactured up to a measurement/stroke length of 20 meters.
    Resolution 5µm, 10µm, 25µm, 50µm, 62.5µm, 100µm...
    Operating Temperature -25°C ... +85°C
    Operating Speed 3 m/s
    Electrical Connection D-Sub 9 pin, 5 or 8 x 0.14 mm² shielded cable
    Power Supply Voltage 10 ... 30 VDC or 5 VDC

    PDF

    Whatsapp

    Buy Now

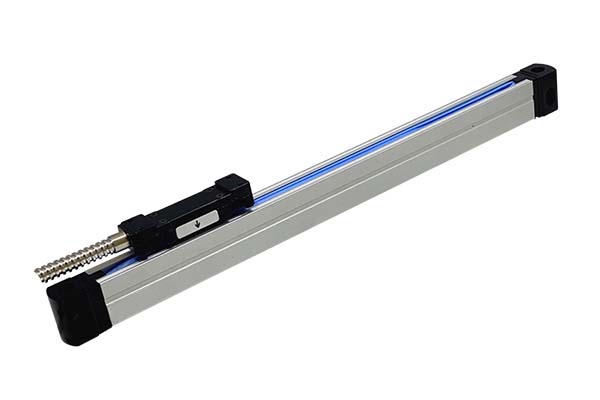

    EMS320 Magnetic Scales

    EMS320 Magnetic Scales are used in lathes, milling machines, boring machines, grinding machines, special machinery, and automation applications. They have a standard resolution of 5 µm (0.005). They are manufactured up to ameasurement/stroke length of 1000 mm.
    Resolution 1µm, 5µm, 10µm, 25µm, 50µm, 62.5µm, 100µm...
    Operating Temperature -25°C ... +85°C
    Operating Speed 3 m/s
    Electrical Connection D-Sub 9 pin, 5 or 8 x 0.14 mm² shielded cable
    Power Supply Voltage PPL: 10..30 VDC or TTL: 5 VDC

    PDF

    Whatsapp

    Buy Now

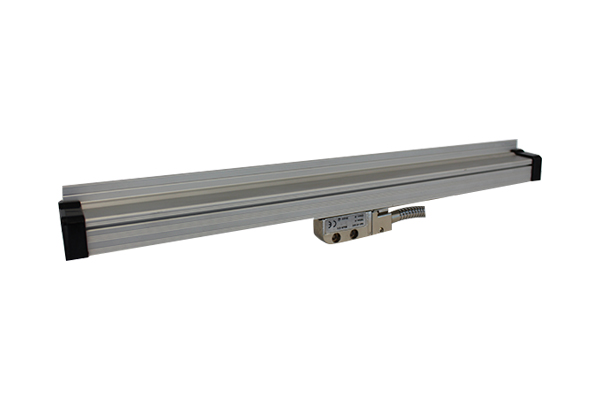

    EMS110 Magnetic Scales

    EMS110 Magnetic Scales are used in lathes, milling machines, boring machines, grinding machines, special machinery, and automation applications. It has a standard resolution of 5 µm (0.005). It can be applied up to a measurement length of 20 meters.
    Resolution 5µm, 10µm, 25µm, 50µm, 62.5µm, 100µm...
    Operating Temperature -25°C ... +85°C
    Operating Speed 3 m/s
    Electrical Connection D-Sub 9 pin, 5 or 8 x 0.14 mm² shielded cable
    Power Supply Voltage PPL: 10..30 VDC or TTL: 5 VDC

    PDF

    Whatsapp

    Buy Now

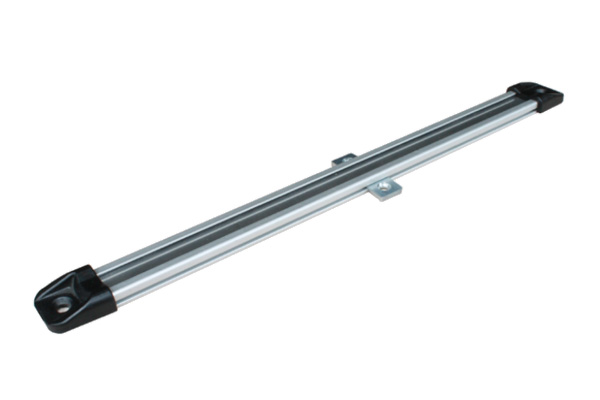

    EMS200 Magnetic Scales

    EMS200 Magnetic Scales are used in lathes, milling machines, boring machines, grinding machines, special machinery, and automation applications. They have a standard resolution of 5 µm (0.005). They can be applied up to a measurement length of 20 meters.
    Resolution 5µm, 10µm, 25µm, 50µm, 62.5µm, 100µm...
    Operating Temperature -25°C ... +85°C
    Operating Speed 3 m/s
    Electrical Connection D-Sub 9 pin, 5 or 8 x 0.14 mm² shielded cable
    Power Supply Voltage PPL: 10..30 VDC or TTL: 5 VDC
