    Step Motors and Drives

    Emos Group Industrial Electronics Industrial Automation and Control Step Motors and Drives

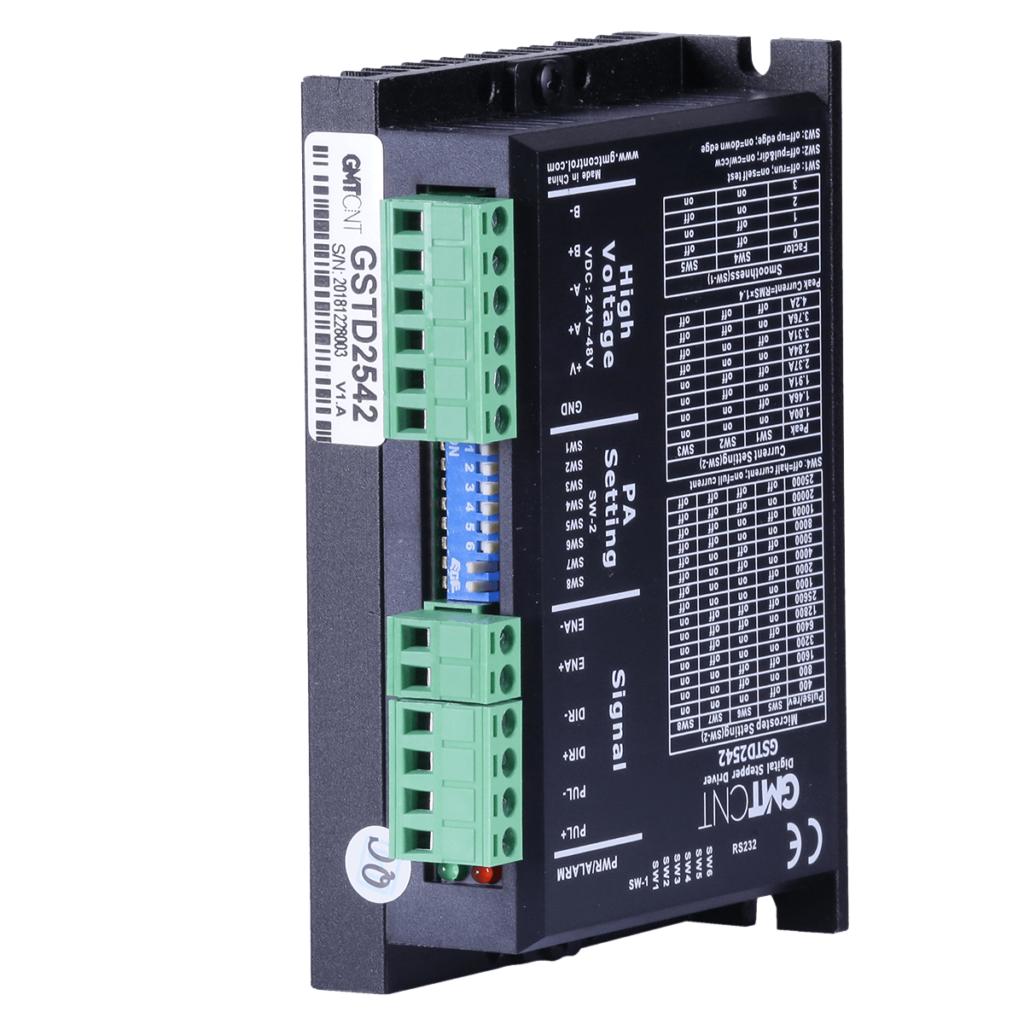

    GSTD-2542

    GSTD-2542 Step Driver provides 32-bit DSP technology, current adjustment, low noise, and enhanced safety.
    Power Supply 24 ~ 48 VDC
    Peak Current 4.2A
    Logical Input Current 16mA
    Input Frequency 200kHz

    PDF

    Whatsapp

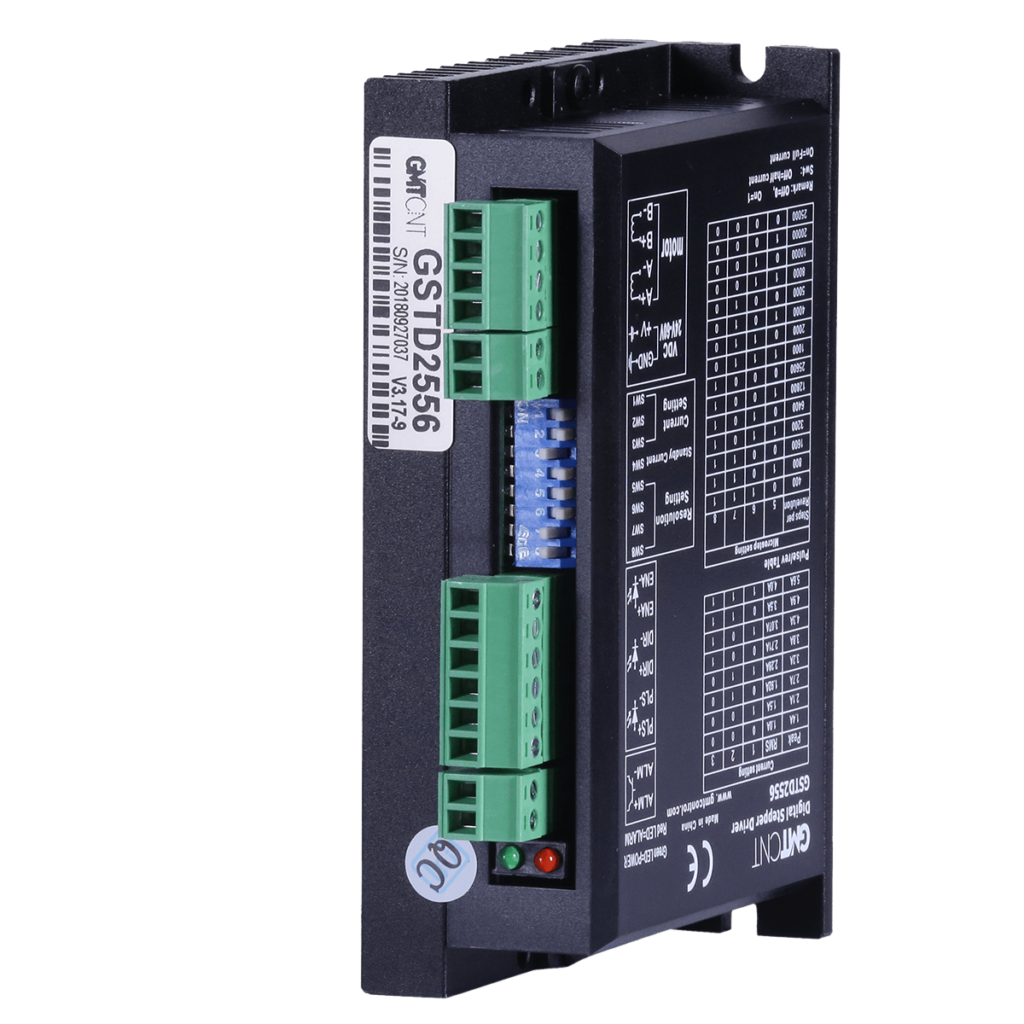

    GSTD-2556

    Step Driver, 32-bit DSP technology, low noise, current adjustment, and high safety.
    Supply 24 ~ 60 VDC
    Peak Current 5.6A
    Logical Input Current 16mA
    Input Frequency 200kHz

    PDF

    Whatsapp

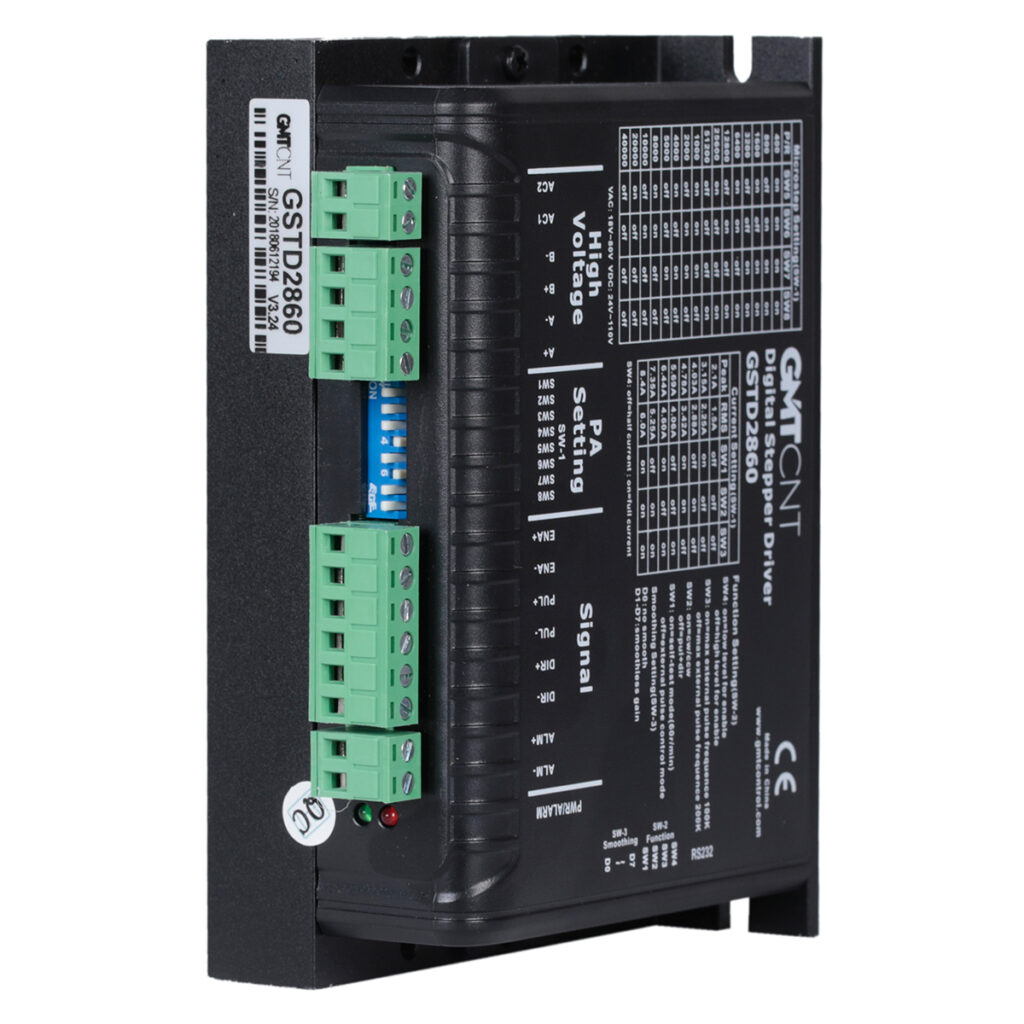

    GSTD-2860

    The step driver offers 32-bit DSP technology, current adjustment, high safety, and micro-step adjustment.
    Power Supply 18-80VAC…24-110VDC
    Peak Current 8.2A
    Logic Input Current 10mA
    Input Frequency 250kHz

    PDF

    Whatsapp

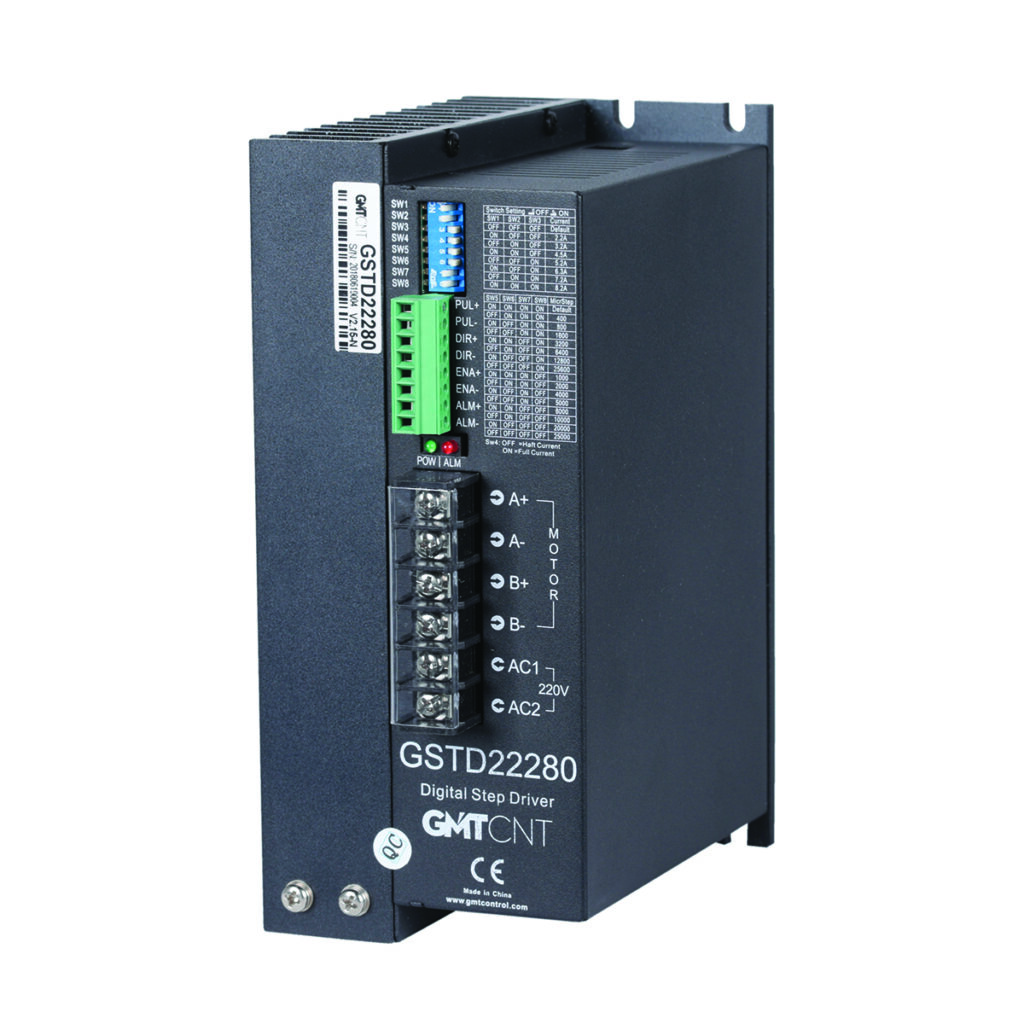

    GSTD-22280

    The Step Driver offers 32-bit DSP technology, low noise and vibration, and protection features.
    Power Supply 80 ~ 240VAC
    Peak Current 8.4A
    Logical Input Current 16mA
    Input Frequency 200kHz

    PDF

    Whatsapp

    LGSD-0A10-8A

    GSTM4218-048-810 is a Nema17 stepper motor with 0.2Nm torque and a 42mm flange.
    Power Supply 18 ~ 40VDC
    Peak Current 8A
    Logic Input Current 16mA
    Input Frequency 200kHz

    PDF

    Whatsapp

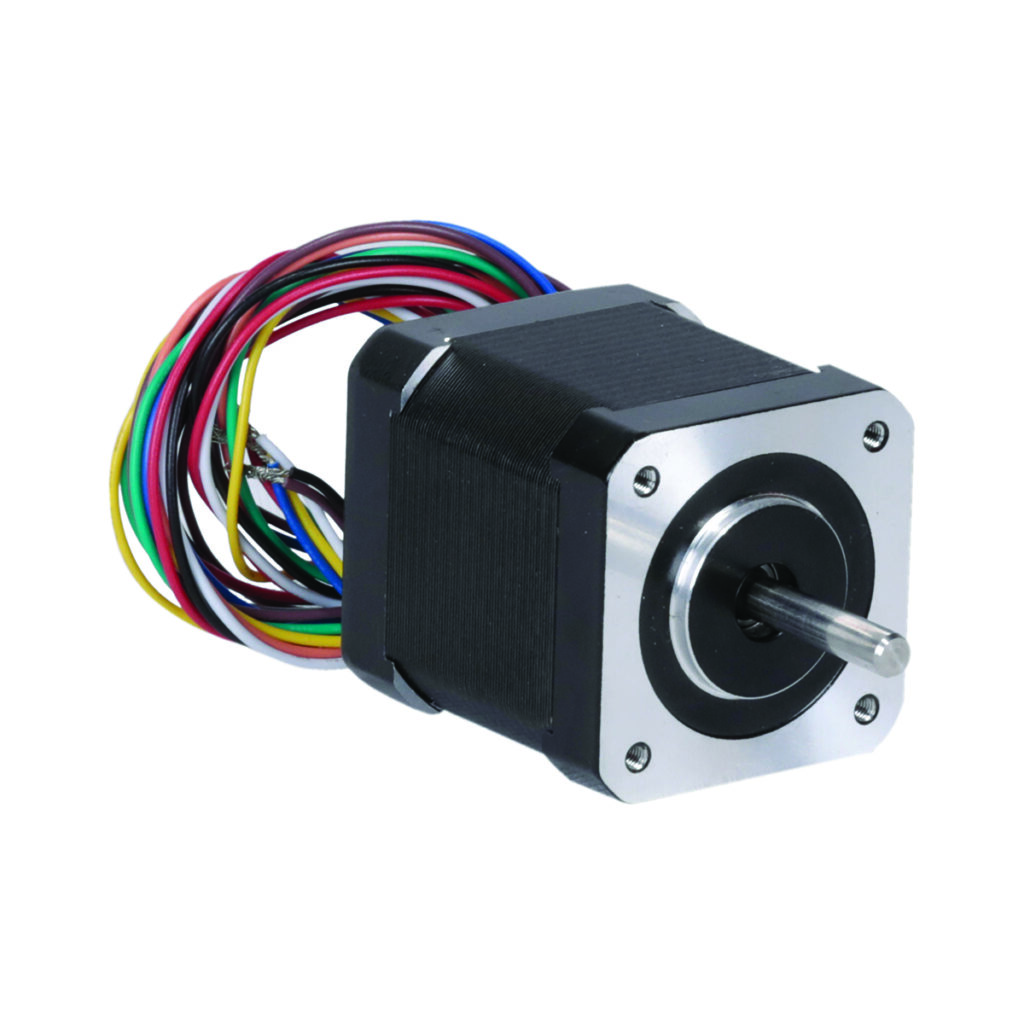

    GSTM4218-048-810

    GSTM4218-048-810 is a Nema17 stepper motor with a 0.2Nm torque and a 42mm flange.
    Suitable Driver GSTD2542
    Nominal Torque 0.34Nm
    Nominal Current 1.0A
    Rotor Inertia 82 g-cm²

    PDF

    Whatsapp

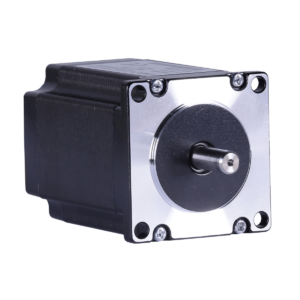

    GSTM5718-080-830

    GSTM5718-080-830, Nema23 stepper motor, offering 2.0Nm torque and a 57mm flange.
    Suitable Driver GSTD2542
    Nominal Torque 2.0Nm
    Nominal Current 3.0A
    Rotor Inertia 480 g-cm²

    PDF

    Whatsapp

    GSTM8618-080-842

    GSTM8618-080-842 is a Nema34 stepper motor with 4.5Nm torque and an 86mm flange.
    Compatible Driver GSTD2860
    Nominal Torque 4.5Nm
    Nominal Current 4.2A
    Rotor Inertia 1400 g-cm²

    PDF

    Whatsapp

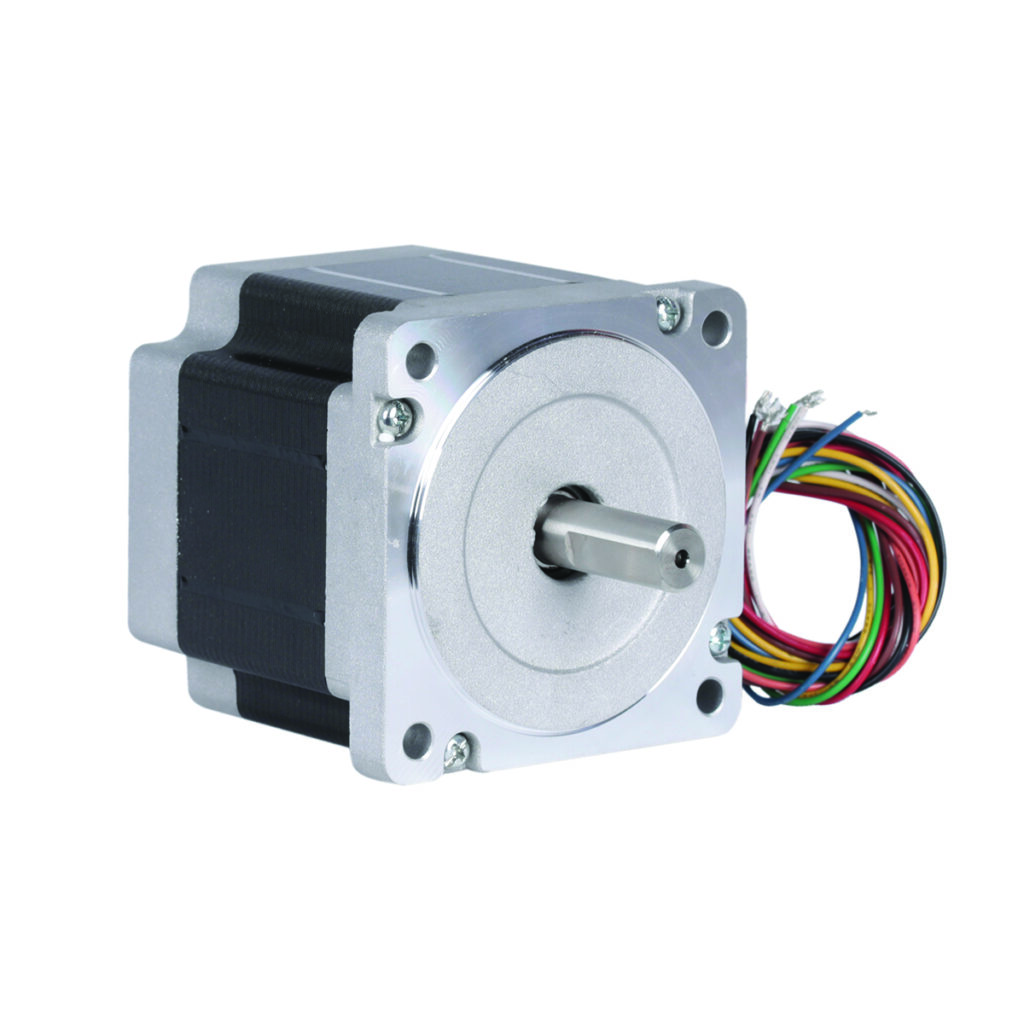

    GSTM8618-118-842

    GSTM8618-118-842 is a Nema34 stepper motor that offers 8.5Nm torque and an 86mm flange.
    Compatible Driver GSTD2860
    Nominal Torque 8.5Nm
    Nominal Current 4.2A
    Rotor Inertia 270000 g-cm²

    PDF

    Whatsapp

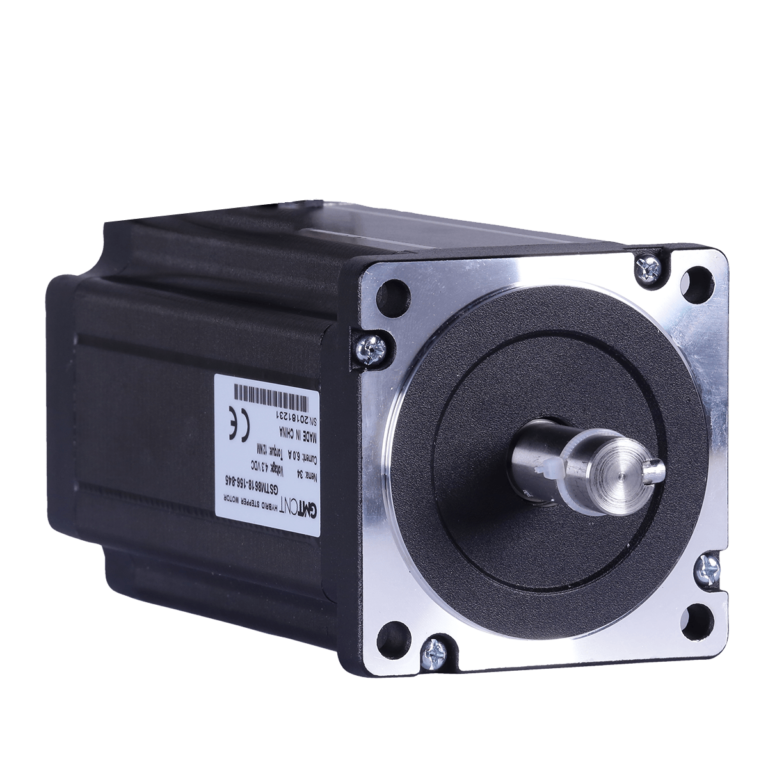

    GSTM8618-156-845

    GSTM8618-156-845, Nema34 stepper motor, with 12Nm torque and 86mm flange.
    Compatible Driver GSTD2860
    Nominal Torque 12Nm
    Nominal Current 4.5A
    Rotor Inertia 4000 g-cm²

    PDF

    Whatsapp

    GSTM11018-115-460

    GSTM11018-115-460 is a Nema42 stepper motor with 12Nm torque and a 110mm flange.
    Compatible Driver GSTD22280
    Nominal Torque 12Nm
    Nominal Current 6.0A
    Rotor Inertia 11 kg-cm²

    PDF

    Whatsapp

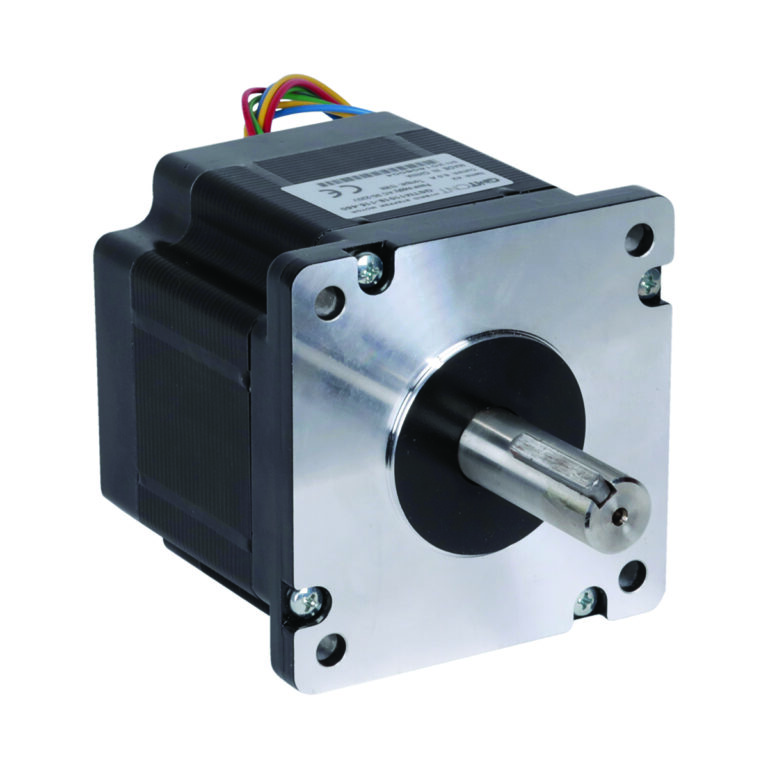

    GSTM11018-150-460

    GSTM11018-150-460, Nema42 stepper motor, offers 20Nm torque and a 110mm flange
    Compatible Driver  GSTD22280
    Nominal Torque 20Nm
    Nominal Current  6.0A
    Rotor Inertia 11 kg-cm²

    PDF

    Whatsapp

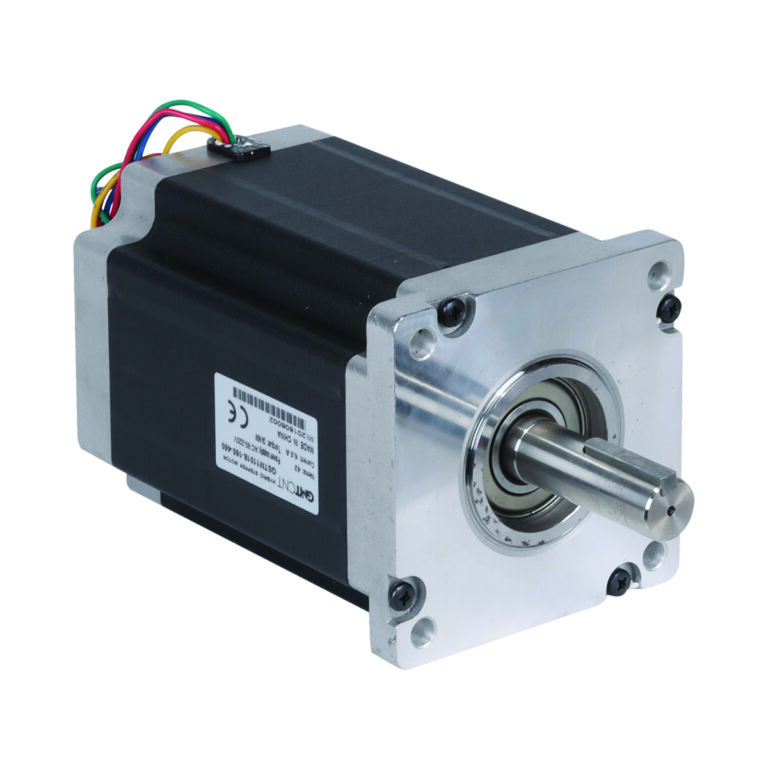

    GSTM11018-165-460

    GSTM11018-165-460 is a Nema42 stepper motor with 24.0Nm torque and a 110mm flange.
    Compatible Driver GSTD22280
    Nominal Torque 24Nm
    Nominal Current  6.0A
    Rotor Inertia 12.5 kg-cm²

    PDF

    Whatsapp

    IGSS-573620

    IGSS-573620, a compactly designed, closed-loop stepper motor, offers high accuracy and protection.
    Operating Temperature  70 °C Max
    Protection Class IP20 on the body, IP50 at the shaft seal
    Length 165mm
    Weight 9.5kg

    PDF

    Whatsapp

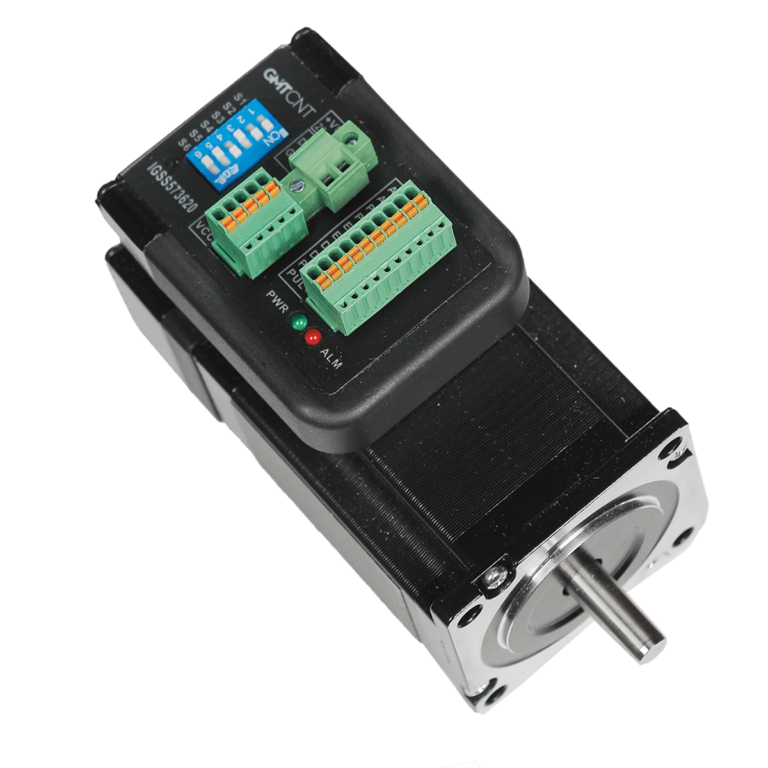

    IGSS-603630

    IGSS-603630, 3.0Nm torque, integrated driver, offers high accuracy and position tracking.
    Supply Voltage 24 – 50 VDC
    Flange 60 Flange
    Torque 3Nm
    Pulse Input Frequency 200kHz

    PDF

    Whatsapp

    LGSM86-35

    Stepper Motor, Nema34, has 2.5Nm torque, 86mm flange, and 4A current.
    Nominal Torque 2.5Nm
    Nominal Current 4A
    Step Angle 1.8°
    Number of Wires 4

    Whatsapp

    LGSM86-45C

    Step Motor, Nema34, has 4.5Nm torque, an 86mm flange, and a 6A current rating.
    Nominal Torque 4.5Nm
    Nominal Current 6A
    Rotor Inertia 1400 g-cm²
    Step Angle 1.8°

    Whatsapp
