    Mold Milling

    Emos Group Machine Tools Mill Mold Milling

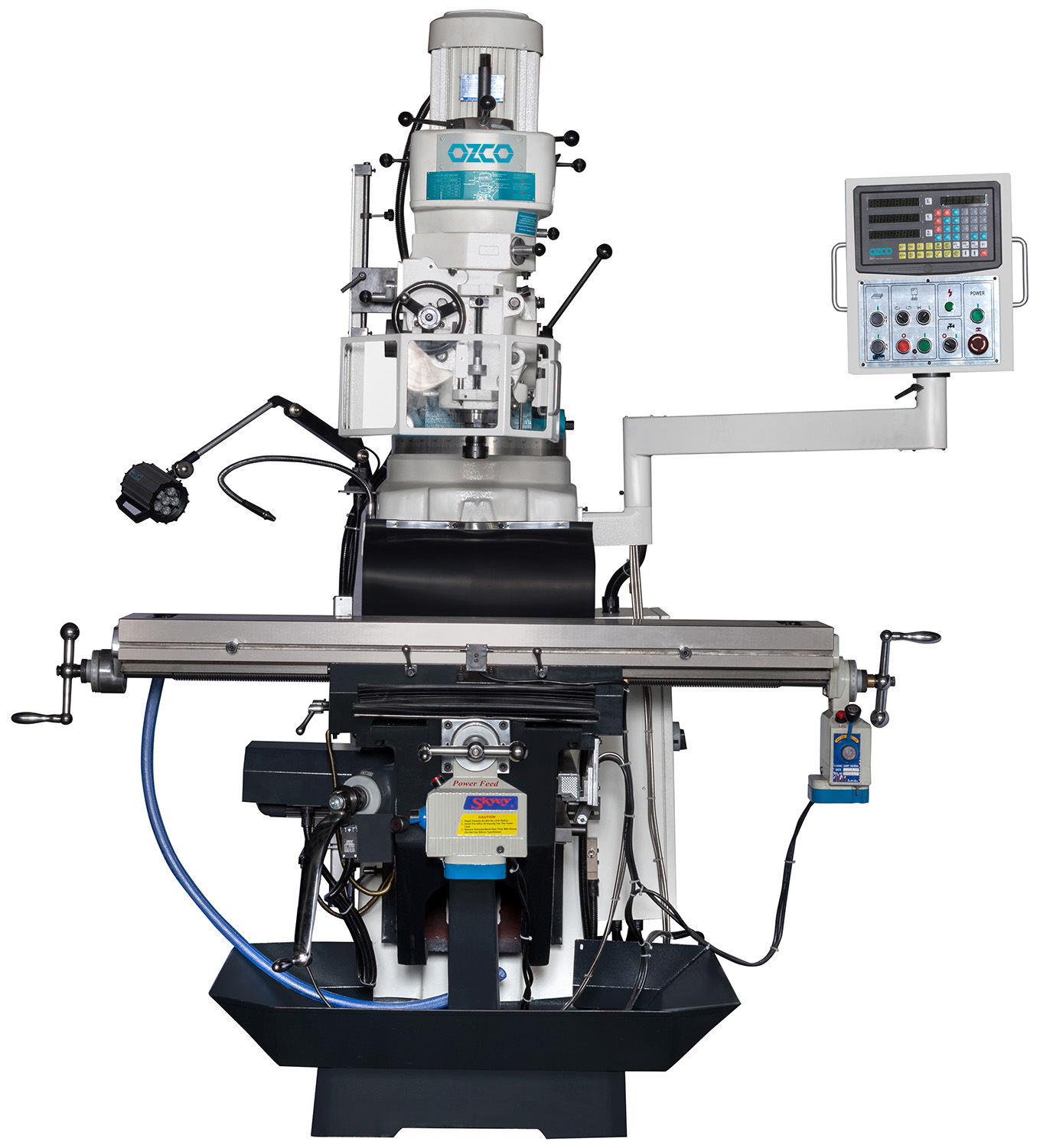

    F4 Mold Milling Machine

    The F4 Mold Milling Machine, with its high-quality Meehanite casting and durable construction, is an excellent solution for professional molding operations.
    Motor Power 3.75 kW, 400 V w
    Cooling Pump Power 1/8 Hp (100) w
    Table Dimensions 1370x254 mm
    X Axis Travel 950 mm

    Whatsapp

    F4 Pro Mold Milling Machine

    The F4 Pro Mold Milling Machine is the ideal solution for professional molding applications with its durable structure and high-precision machining capacity.
    Motor Power 3.75 kW, 400 V w
    Cooling Pump Power 1/8 Hp (100 W) w
    Table Dimensions 1370x254 mm
    X Axis Travel 825 mm

    Whatsapp

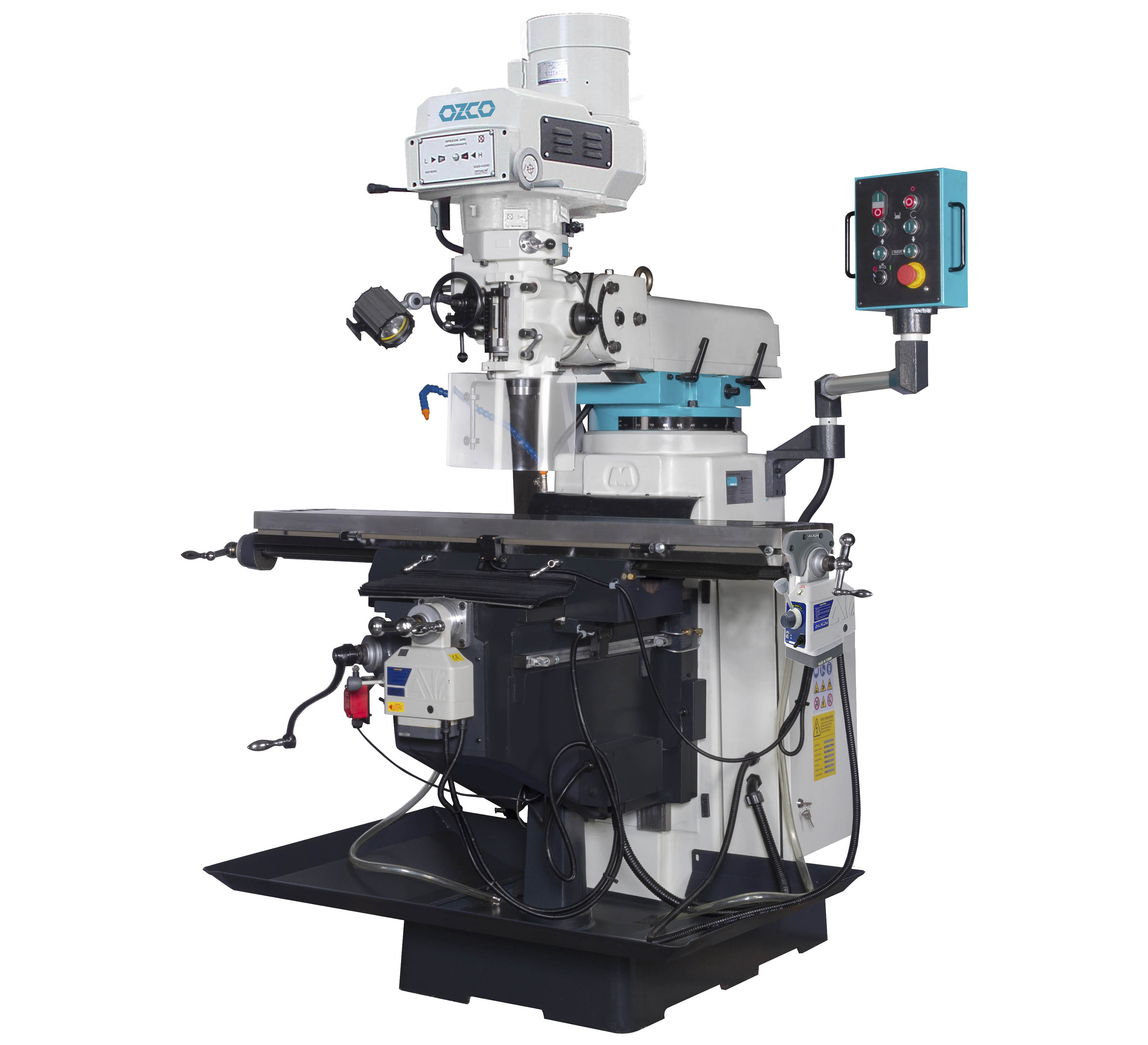

    F4V Pro Mold Milling Machine

    The F4V Pro Mold Milling Machine offers superior performance for molding operations with high precision and powerful machining capabilities.
    Motor Power 3.75 kW, 400 V w
    Cooling Pump Power 1/8 Hp (100) w
    Table Dimensions 1370x254 mm
    X Axis Travel 825 mm

    Whatsapp

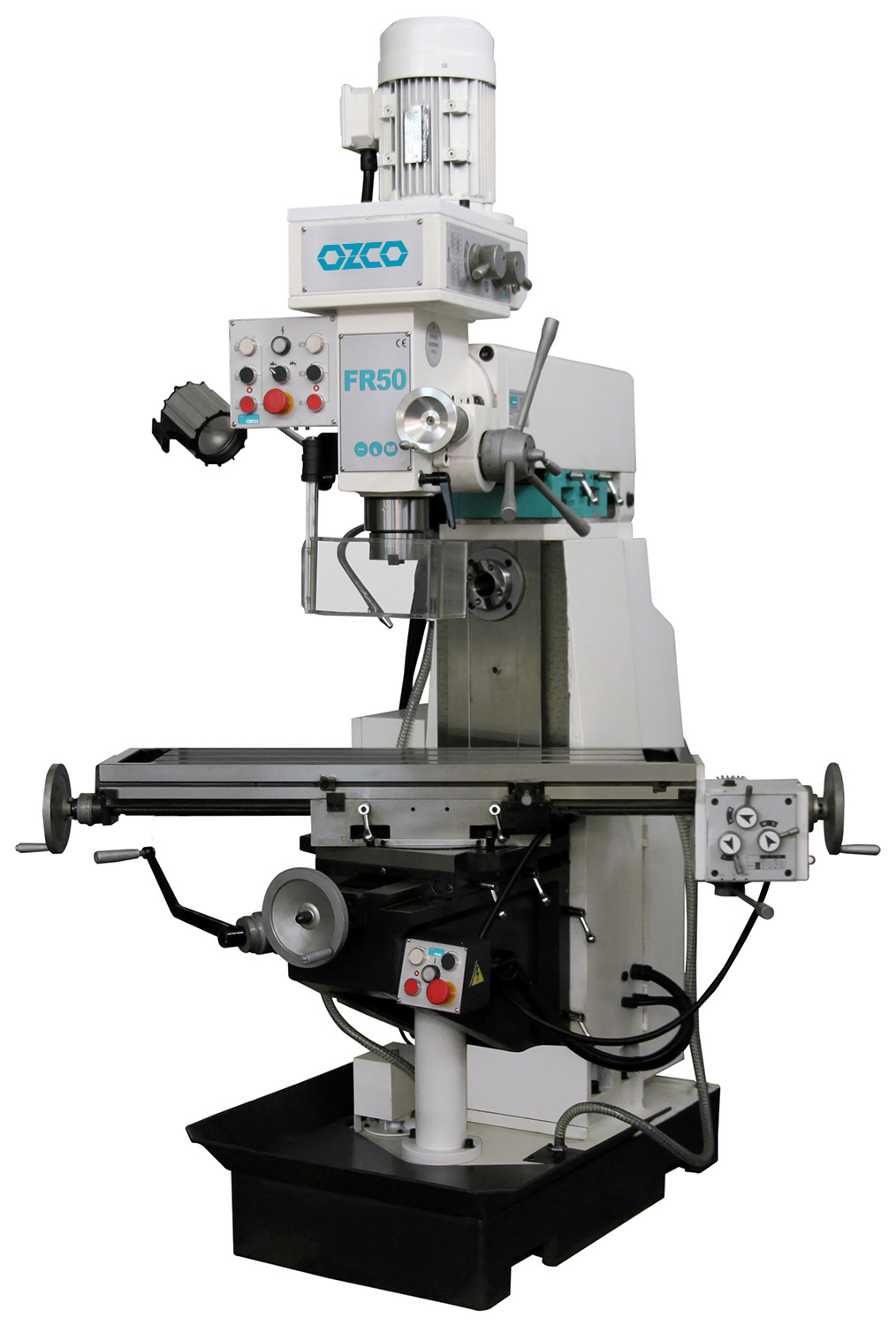

    FR50 Universal Mold Milling Machine

    The FR50 Universal Mold Milling Machine is an ideal solution for professional molding applications, offering powerful performance and high machining capacity.
    Motor Power Vertical: 1.5 kW, Horizontal: 1.5 kW, 400 V w
    Cooling Pump Power 40 w
    Table Dimensions 1000x240 mm
    X Axis Travel 580 mm

    Whatsapp

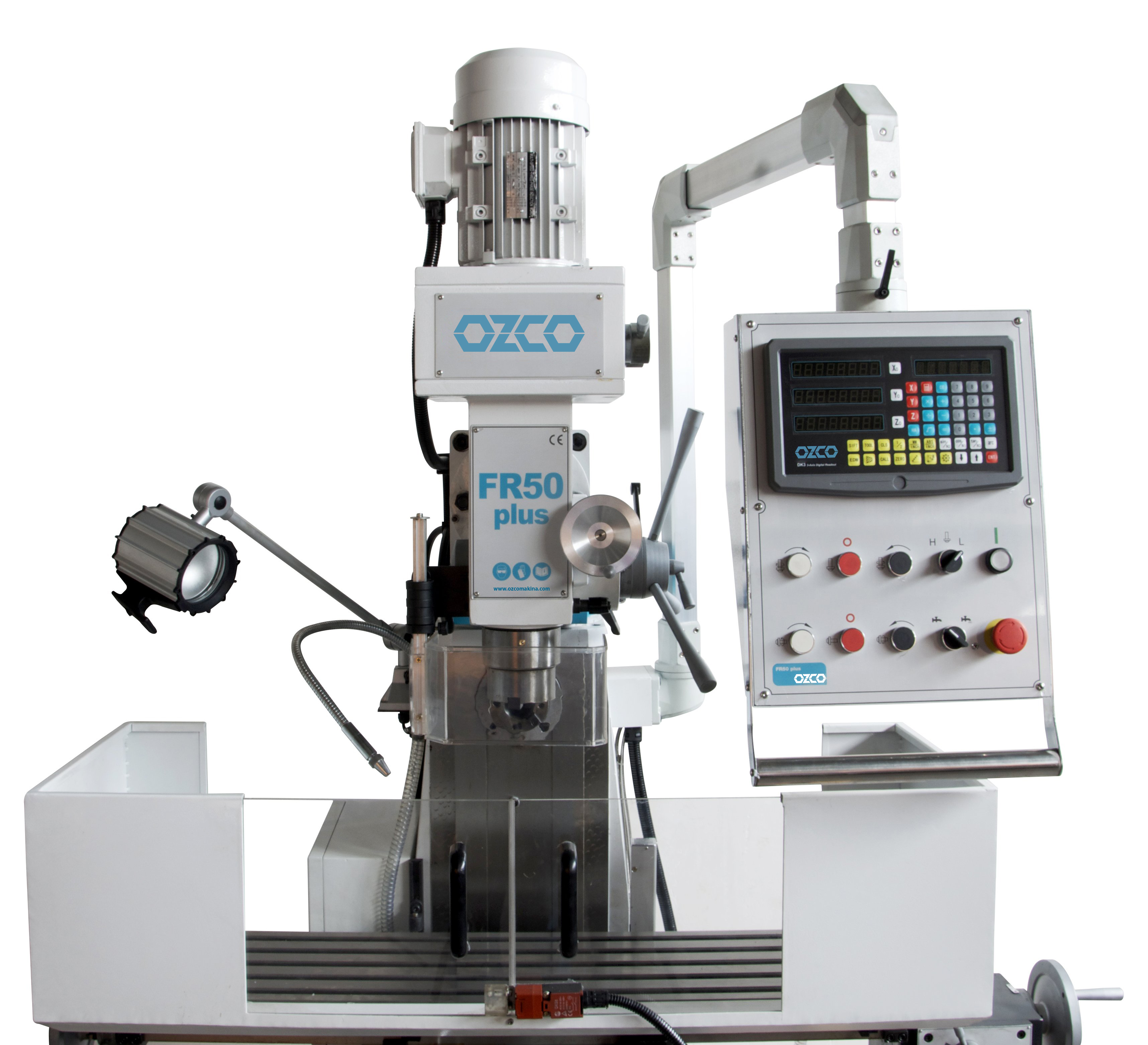

    FR50 Plus Universal Toolmaker Milling Machine

    FR50 Plus Universal Toolmaker Milling Machine is designed for professional toolmaking applications, offering high precision and outstanding durability.
    Motor Power Vertical: 1.5 kW, Horizontal: 1.5 kW, 400 V
    Coolant Pump Power 40 W
    Table Dimensions 1000 x 240 mm
    X-Axis Travel 580 mm

    Whatsapp

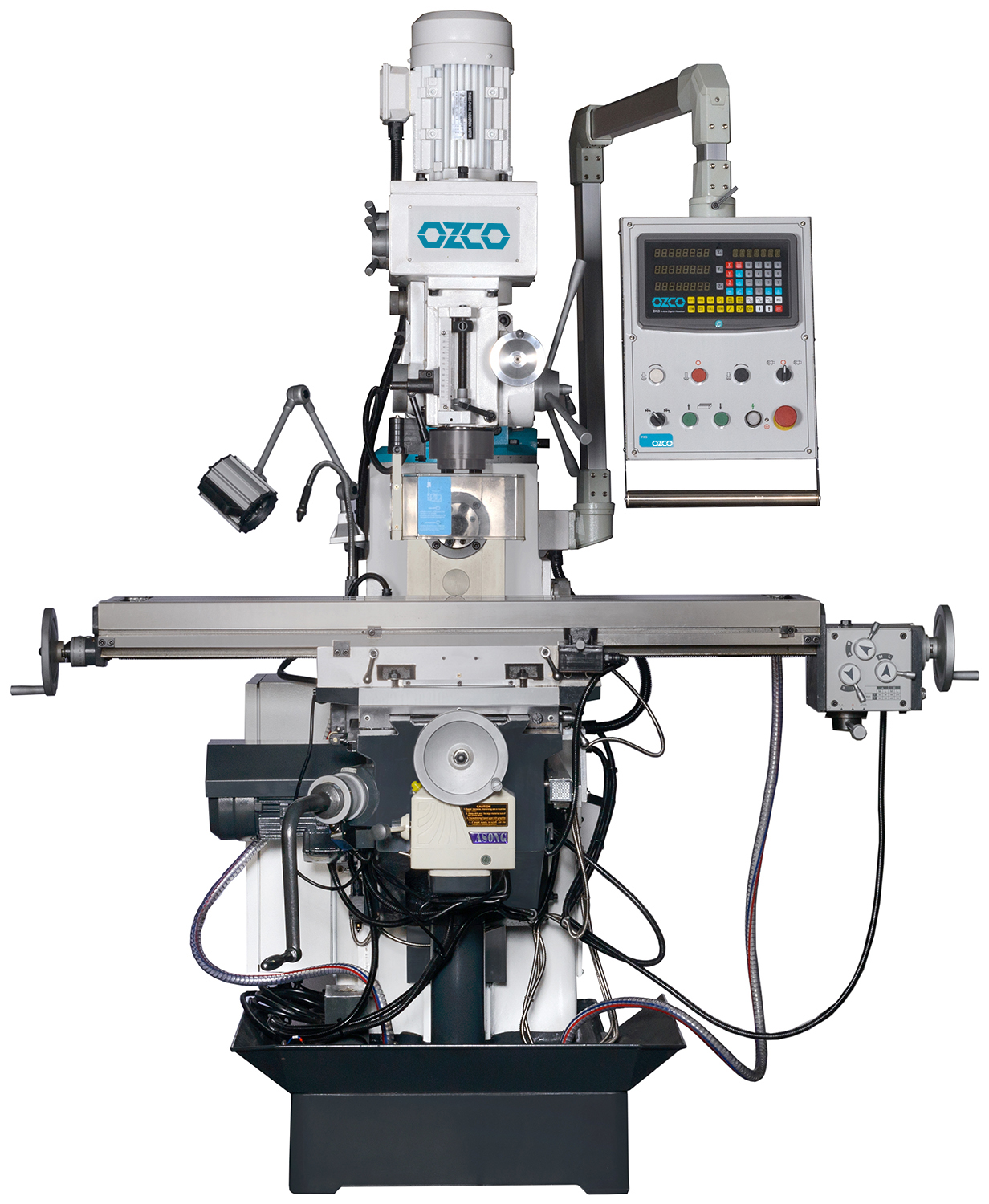

    FR3 Universal Toolmaker Milling Machine

    FR3 Universal Toolmaker Milling Machine is an ideal solution for mold-making operations with its compact design and precision machining capabilities.
    Motor Power Vertical: 2.2 kW, Horizontal: 2.2 kW, 400 V
    Operation Type Vertical: Gear Driven, Horizontal: Gear Driven
    Coolant Pump Power 90 W
    Table Dimensions 1270 x 280 mm

    Whatsapp

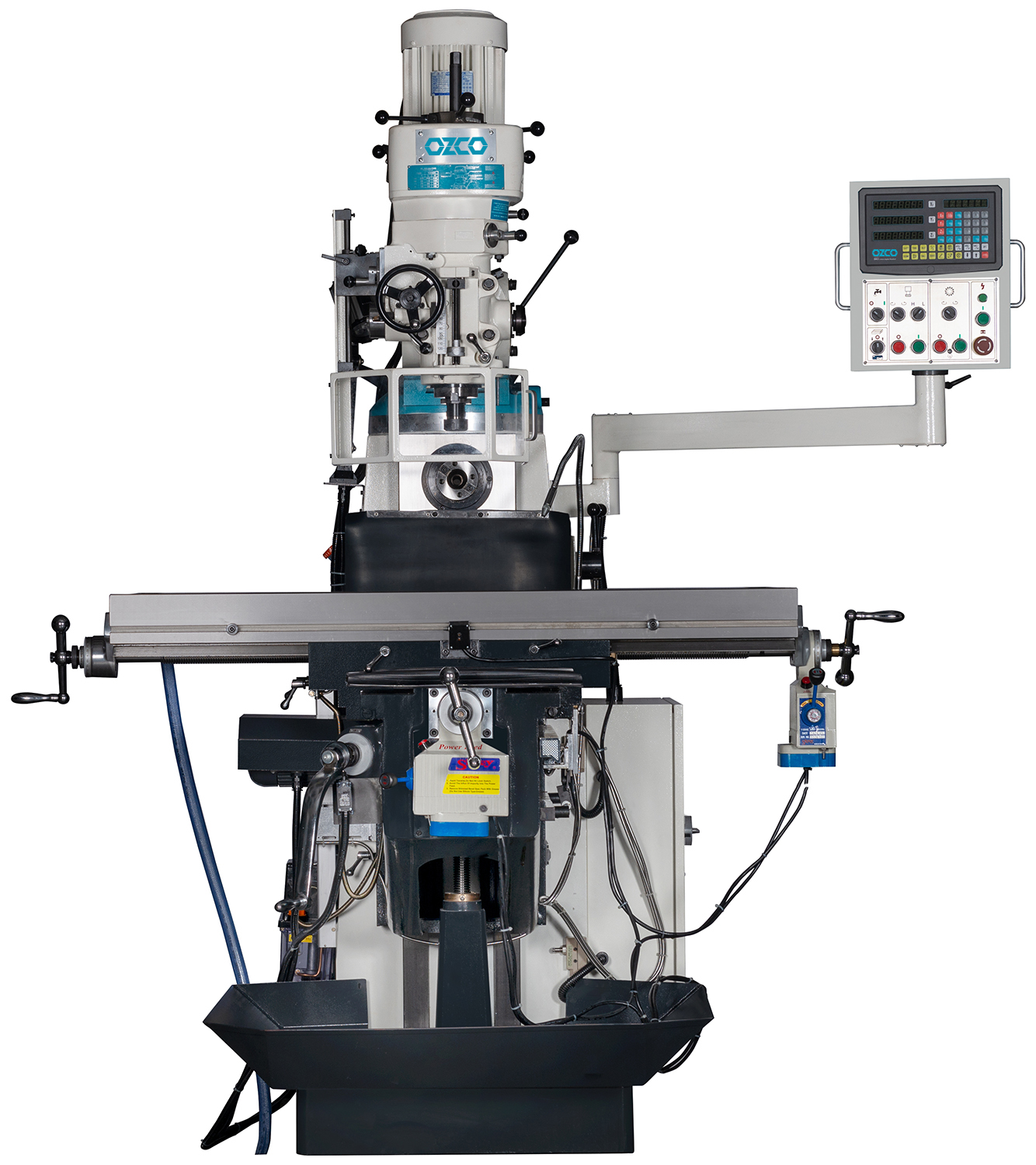

    FR4 Universal Mold Milling Machine

    The FR4 Universal Mold Milling Machine is a reliable and efficient milling solution with its robust construction and precision machining capabilities.
    Motor Power Vertical: 3.75 kW, Horizontal: 2.2 kW, 400 V w
    Working Type Vertical: Belt-driven, Horizontal: Gear-driven
    Cooling Pump Power 90 w
    Table Dimensions 1370x305 mm

    Whatsapp

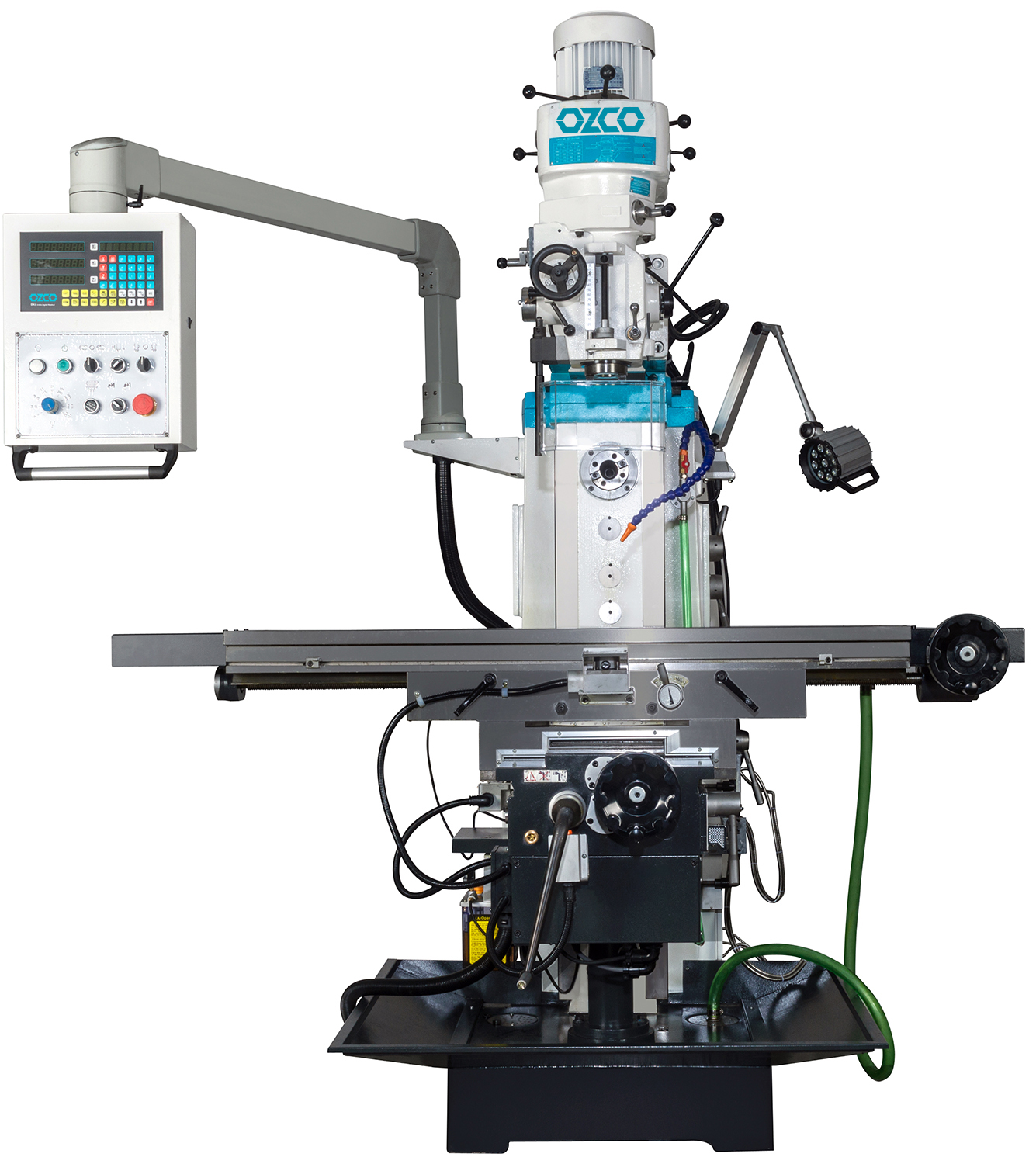

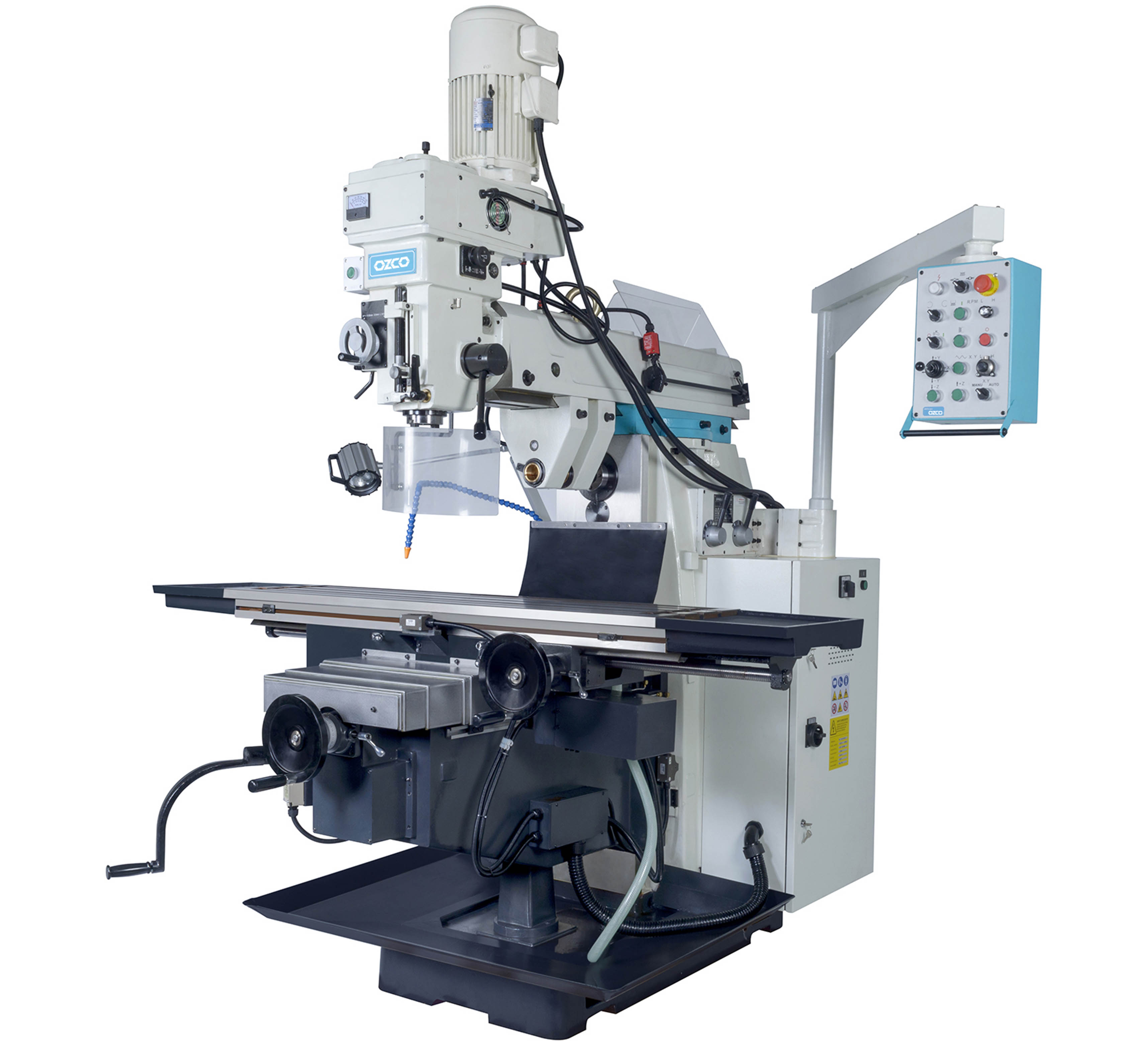

    FR5 Servo Universal Mold Milling Machine

    The FR5 Servo Universal Mold Milling Machine is a durable and efficient solution with servo motor-driven axes and precision machining features.
    Motor Power Vertical: 3.75 kW, Horizontal: 3.0 kW, 400 V w
    Cooling Pump Power 90 w
    Table Dimensions 1370x320 mm
    Maximum Table Load Capacity 300 kg

    Whatsapp

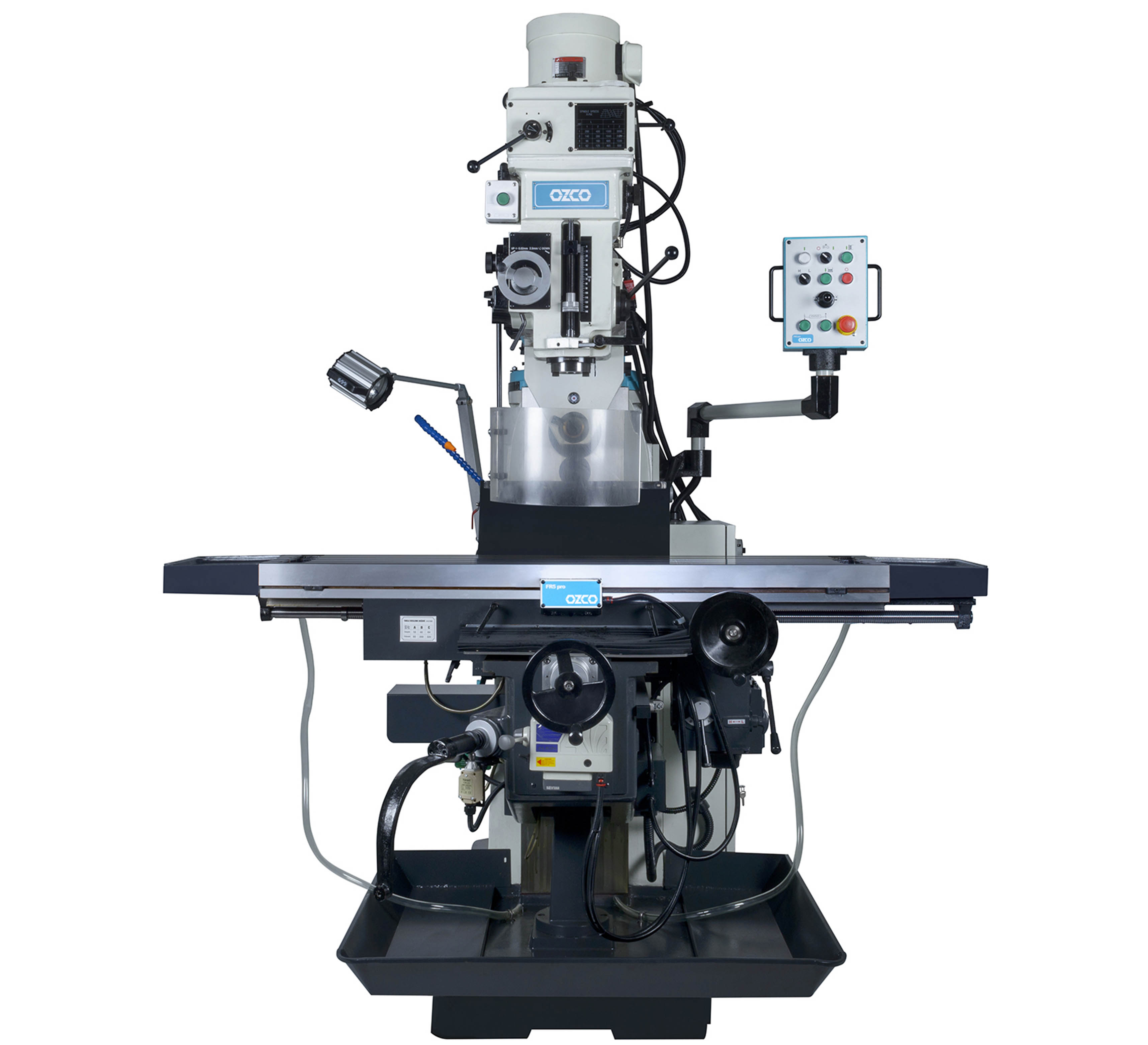

    FR5 Pro Servo Universal Mold Milling Machine

    The FR5 Pro Servo Universal Mold Milling Machine is designed for professional use, featuring servo motor-driven axes, stepless speed adjustment, and exceptional machining capabilities.
    Motor Power Vertical: 5 Hp (3.75 kW), Horizontal: 5 Hp (3.75 kW) 400 V w
    Cooling Pump Power 1/8 Hp (100) w
    Table Dimensions 1470x300 mm
    Maximum Table Load Capacity 300 kg

    Whatsapp

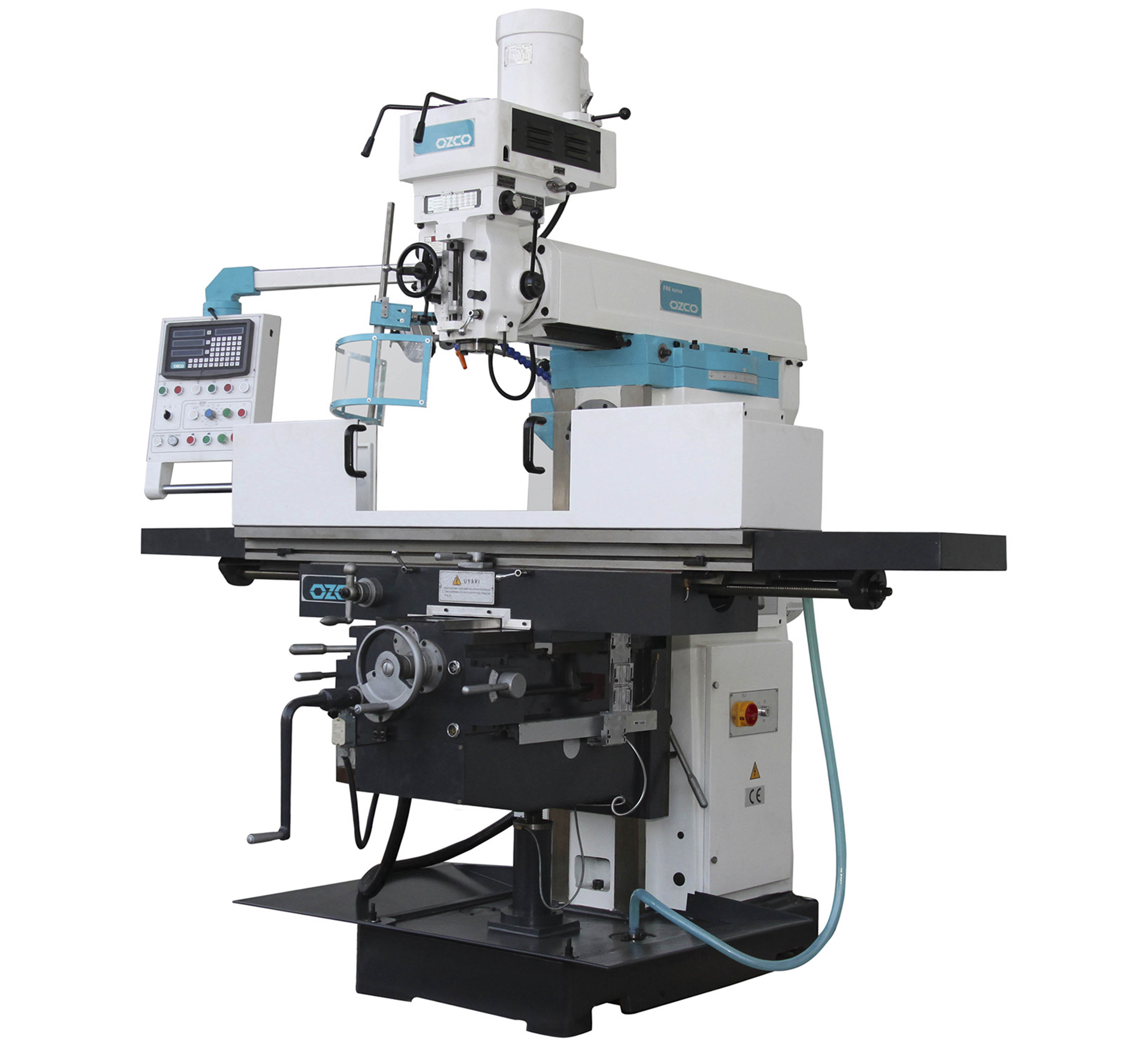

    FR6 Servo Universal Mold Milling Machine

    The FR6 Servo Universal Mold Milling Machine is an ideal solution for precision machining, featuring servo motor-driven axes, stepless speed control, and a durable design.
    Motor Power Vertical: 5.5 kW, Horizontal: 5.5 kW, 400 V
    Cooling Pump Power 90 W
    Table Size 1600x360 mm
    Table Load Capacity (max.) 400 kg

    Whatsapp

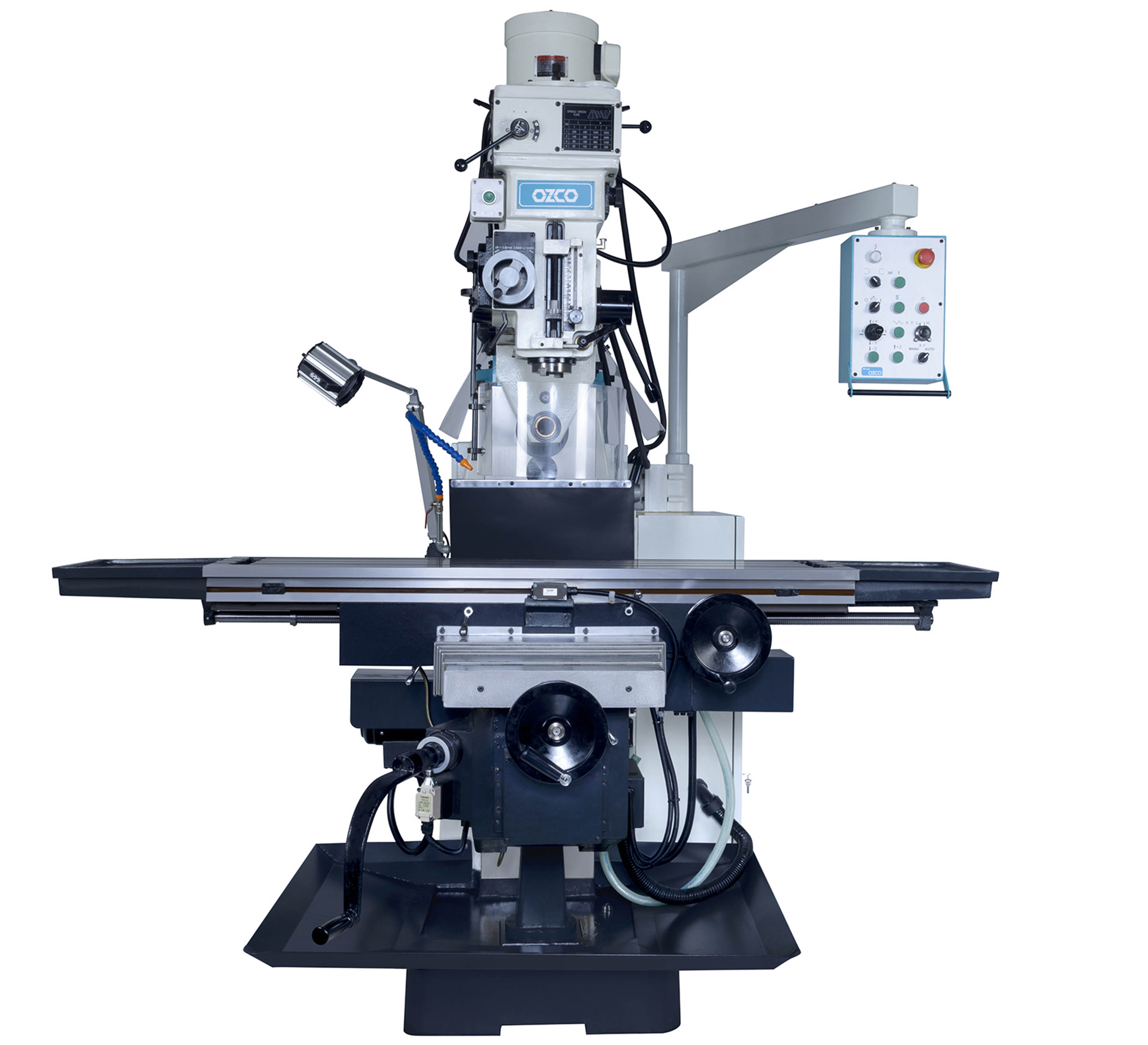

    FR7 Pro Universal Mold Milling Machine

    The FR7V PRO Universal Mold Milling Machine is a precise and durable machining solution with stepless speed control, Yaskawa servo motors, and Turcite-B slideways.
    Motor Power Vertical: 3.75 kW, Horizontal: 3.75 kW, 400 V
    Table Size 1470x300 mm
    Table Load Capacity (max.) 400 kg
    X Axis Movement 1120 mm

    Whatsapp

    FR7V Pro Servo Universal Mold Milling Machine

    With stepless vario speed control and Yaskawa servo motors on the X and Y axes, it offers precision machining performance.
    Motor Power Vertical: 3.75 kW, Horizontal: 3.75 kW, 400 V
    Table Size 1470x370 mm
    Table Load Capacity (max.) 400 kg
    X Axis Movement 1120 mm

    Whatsapp

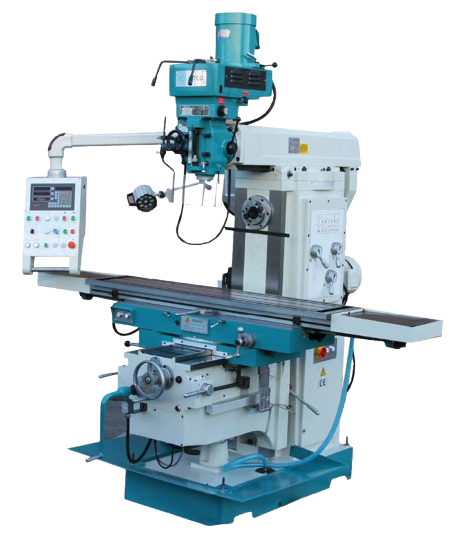

    JVHM 1 Servo

    Table size is 1650 x 360 mm, Table X, Y, and Z axis travels are 1200 x 300 x 450 mm, Spindle diameter is 105 mm.
    Table Size 1650×360 mm
    Maximum Table Travel 1300×300×450 mm
    Distance Between Spindle and Table 150–550 mm
    Distance Between Horizontal Spindle and Table 0–420 mm

    Whatsapp

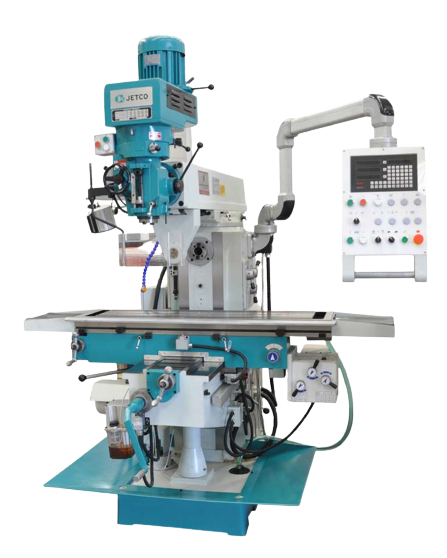

    JVHM 2S

    Table size is 1320 x 320 mm, Table X, Y & Z axis travels are 800 x 300 x 380 mm, Spindle diameter is 105 mm.
    Table Size 1320×320 mm
    Spindle Taper (Vertical/Horizontal) ISO40 mm
    Distance Between Spindle and Table 150–500 mm
    Distance Between Spindle and Column 200–780 mm

    Whatsapp

    JVHM 4A

    Table size is 1370 x 305 mm, Table X, Y & Z axis travels are 880 x 420 x 500 mm, Spindle diameter is 105 mm.

    Whatsapp

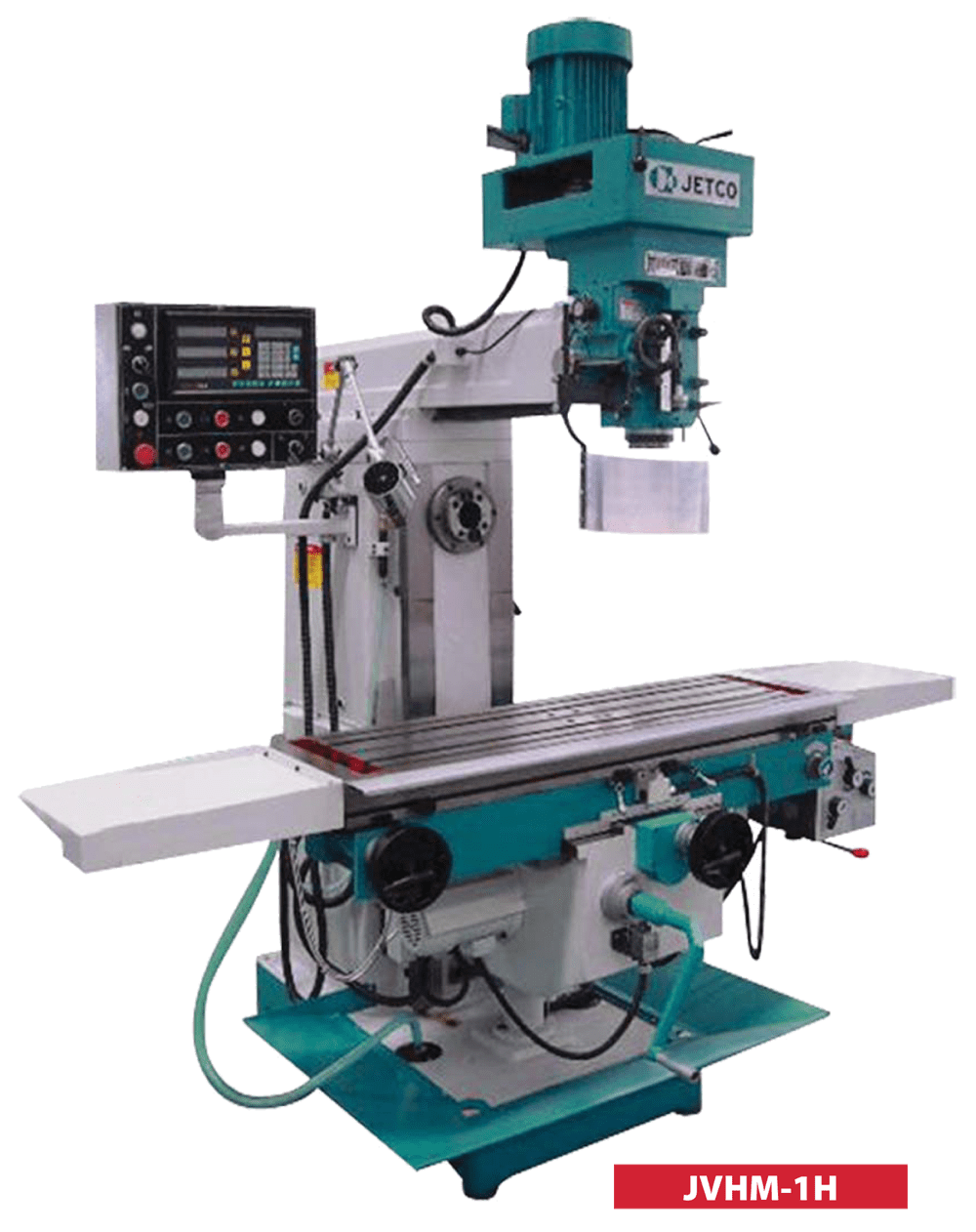

    JVHM 1

    The table size is 1320 x 360 mm, with X, Y, and Z axis movements of 1000 x 300 x 450 mm, and the spindle diameter is 105 mm.
    Table Size 1320×360 mm
    Maximum Table Movement 1000x300x450 mm
    Distance Between Spindle and Table 180-630 mm
    Distance Between Horizontal Spindle and Table 20-470 mm

    Whatsapp

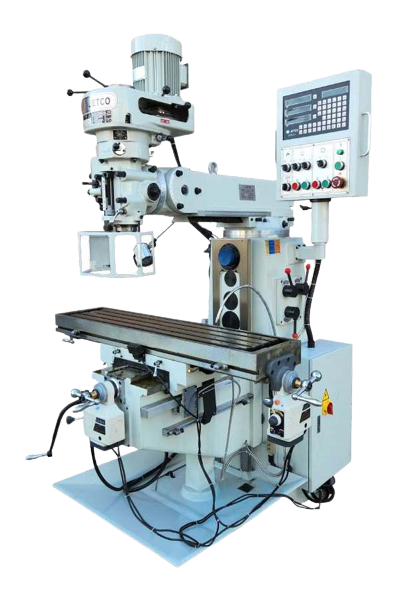

    JTM 4A

    The table size is 1370 x 305 mm. The X, Y, and Z axis movements of the table are 880 x 420 x 500 mm. The spindle diameter is 105 mm.

    PDF

    Whatsapp

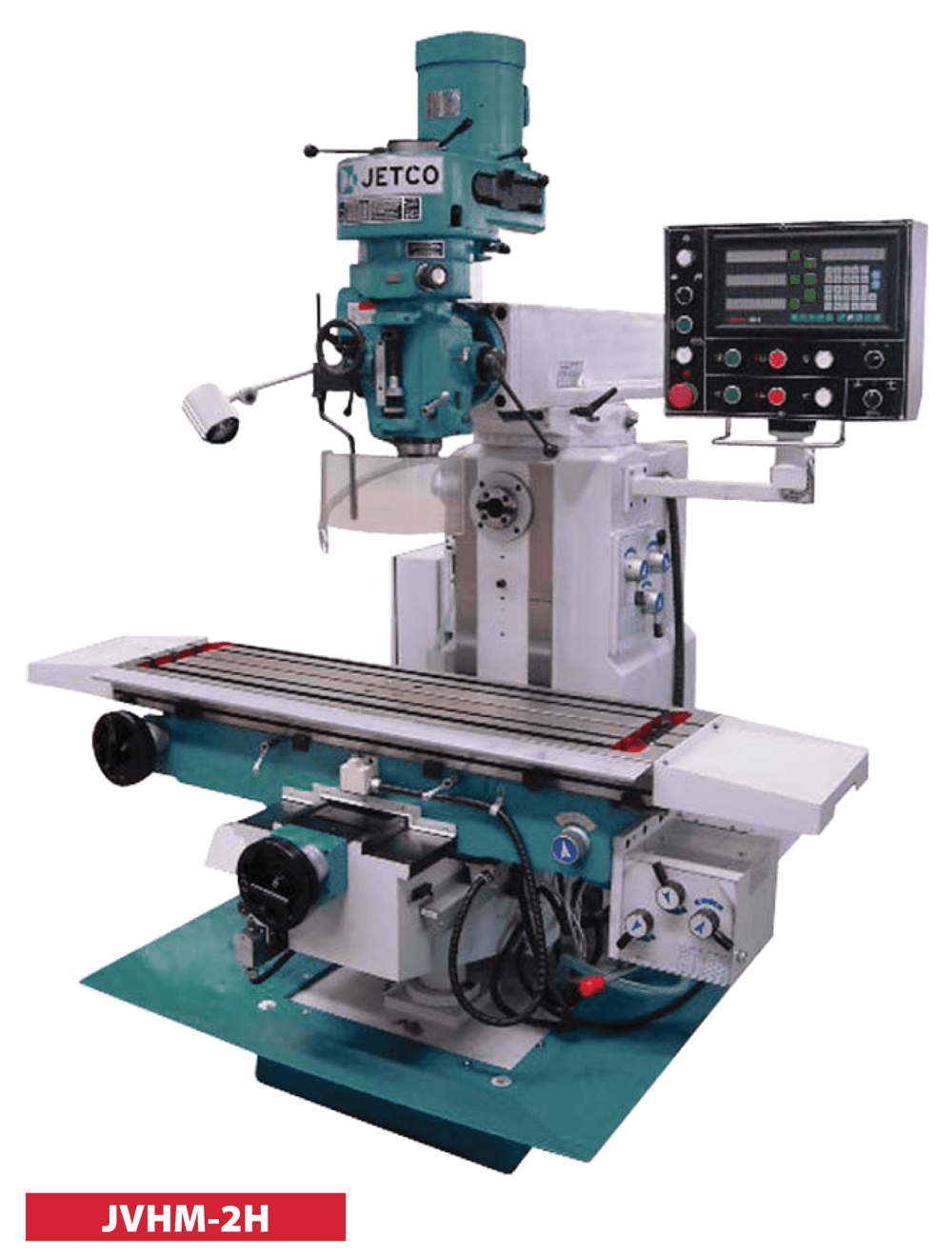

    JVHM 2

    The table size is 1250 x 320 mm. The X, Y, and Z axis movements of the table are 800 x 280 x 350 mm. The spindle diameter is 105 mm.
    Table Size 1250×320 mm
    Spindle Taper (Vertical/Horizontal) ISO40 mm
    Distance Between Spindle and Table 150-500 mm
    Distance Between Spindle and Column 150-550 mm

    Whatsapp

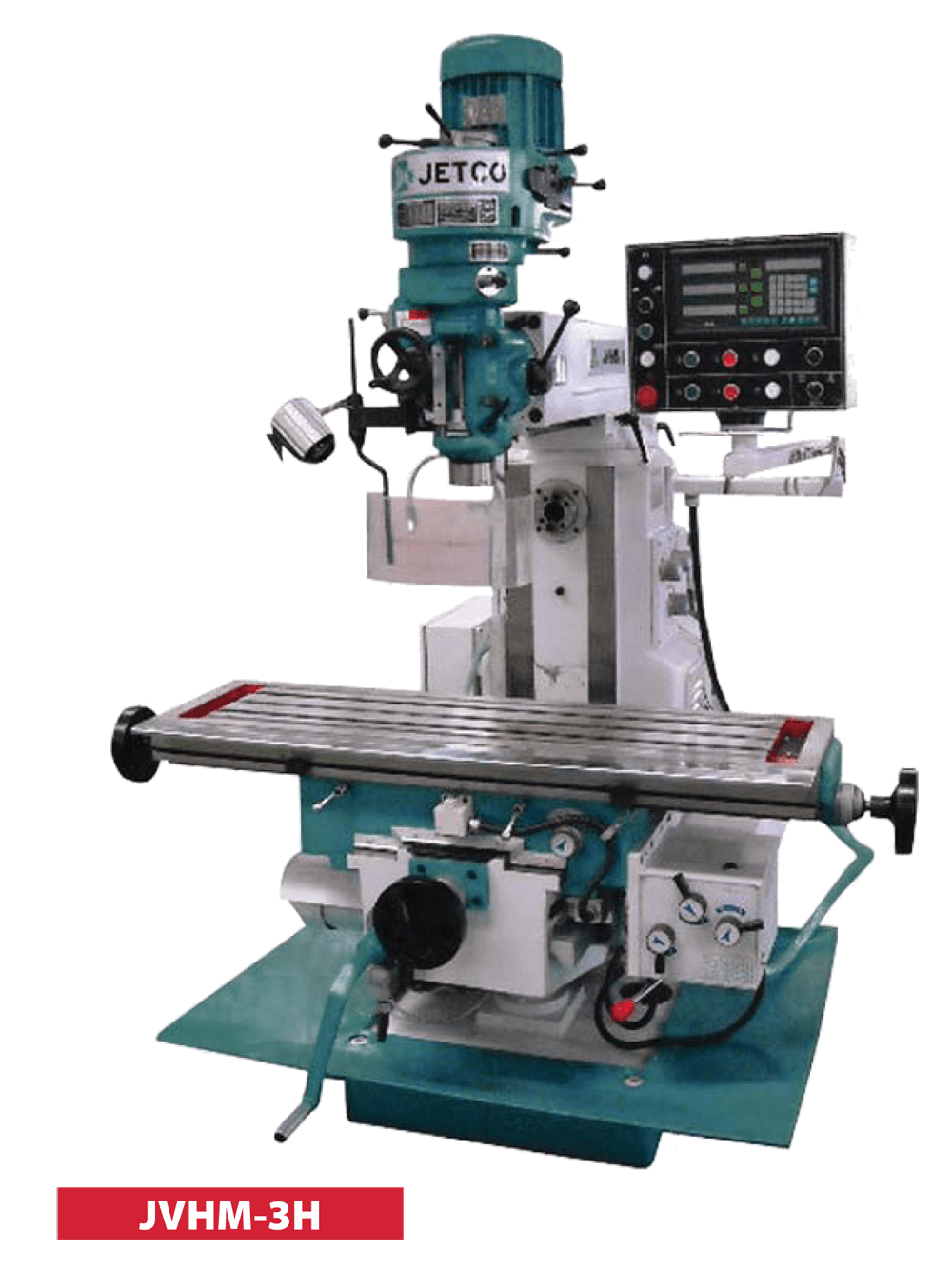

    JVHM 3

    The table size is 1120×280 mm. The X, Y, and Z axis movements of the table are 600 x 280 x 320 mm. The spindle diameter is 105 mm.
    Table Size 1120×280 mm
    Spindle Taper (Vertical/Horizontal) ISO40 mm
    Distance Between Spindle and Table 100-430 mm
    Distance Between Horizontal Spindle and Table 10-330 mm

    Whatsapp

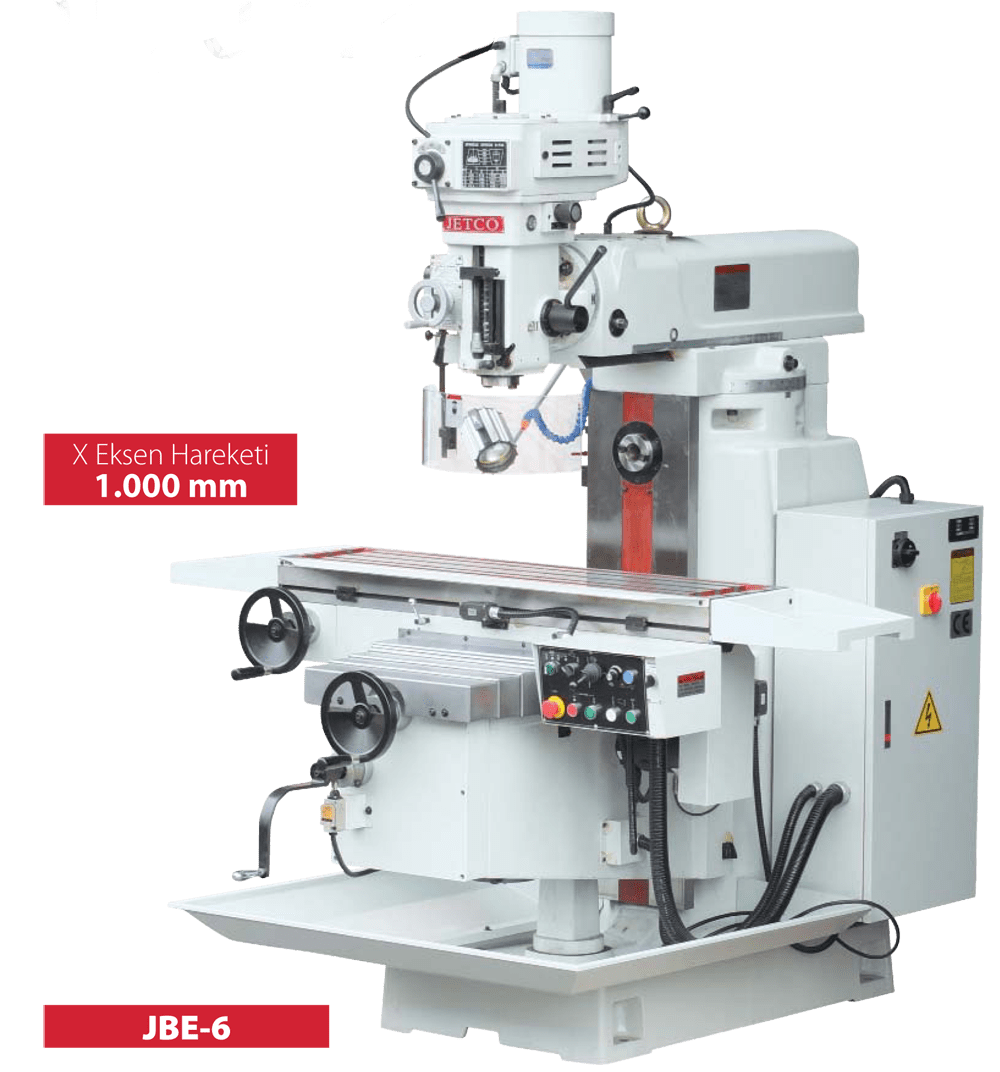

    JBE 6

    The table size is 305 x 1524 mm. The X, Y, and Z axis movements of the table are 1200 x 460 x 500 mm. The T-slot dimensions are 16 x 3 x 63 mm. The spindle diameter is 110 mm. It is of Taiwanese origin.
    Table Size 305 x 1270 mm
    T-Slot 16 x 3 x 63 mm
    Table X & Y & Z Axis Movements 1000 & 480 & 520 mm
    Head Up/Down Movement 610 mm

    Whatsapp

    JBE 3Q

    The X axis is equipped with an align motor. The table size is 254×1270 mm. The X, Y, and Z axis movements of the table are 825 x 400 x 406 mm. The T-slot dimensions are 16 x 3 x 63 mm. The spindle diameter is 85.72 mm. It is of Taiwanese origin.
    Table Size (mm) 254 x 1270 mm
    T-Slot (mm) 16 x 3 x 63 mm
    Table X Axis Movement 825 (manual: 914) mm
    Table Y Axis Movement 400 mm

    Whatsapp

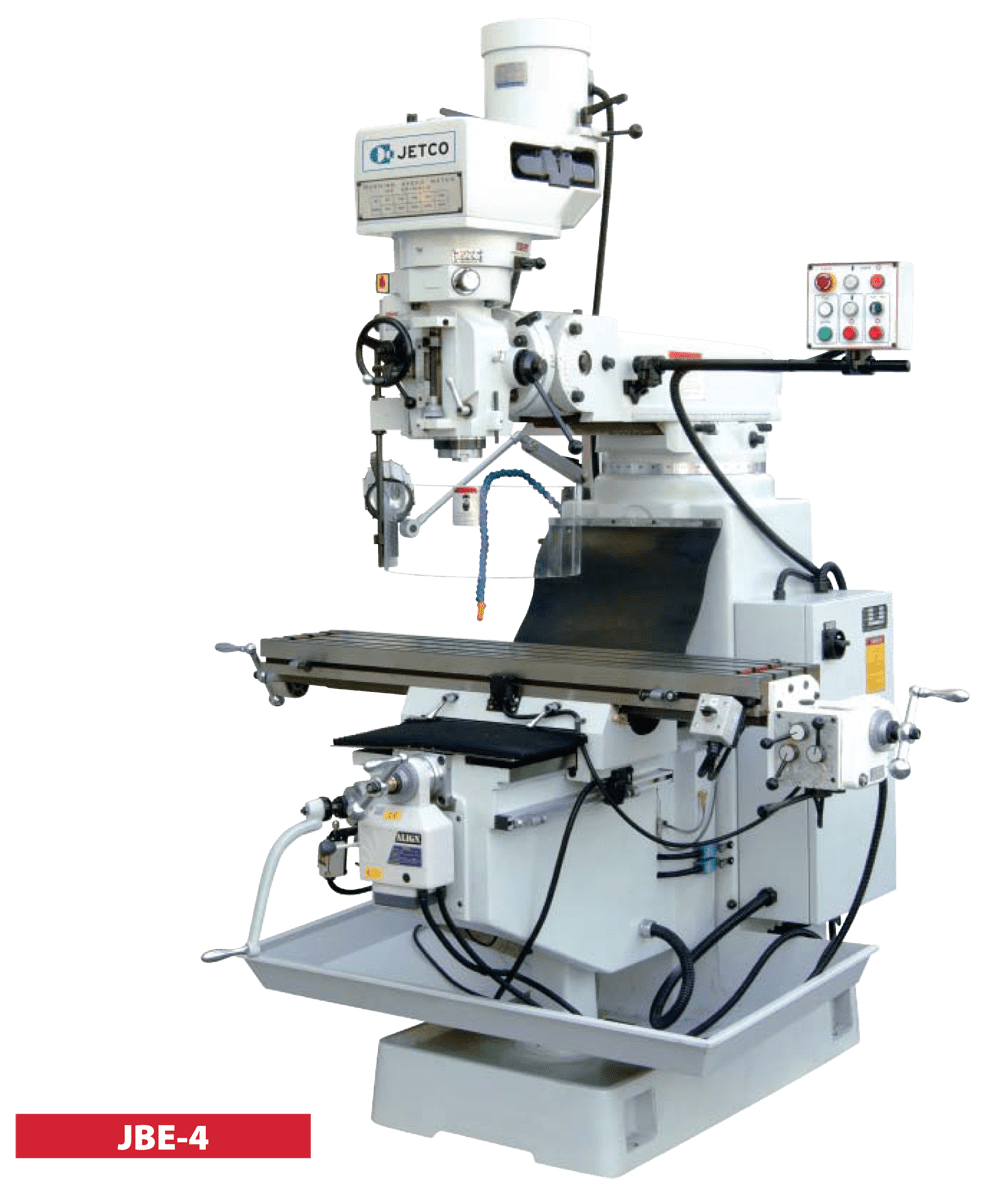

    JBE 4

    The X axis is equipped with a transmission motor. The table size is 254×1270 mm. The X, Y, and Z axis movements of the table are 825 x 400 x 406 mm. The T-slot dimensions are 16 x 3 x 63 mm. The spindle diameter is 105 mm. It is of Taiwanese origin.
    Table Size (mm) 254 x 1270 mm
    T-Slot (mm) 16 x 3 x 63 mm
    Table X Axis Movement 825 (manual: 914) mm
    Table Y Axis Movement 400 mm

    Whatsapp
