    LF Linear Potentiometer

    The LF series potentiometric linear rulers are designed so that the moving rod does not extend from the back of the ruler. They offer analog output options of 4-20 mA (optional 0-20 mA) or 0-10V. Stroke lengths are available up to 300 mm.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

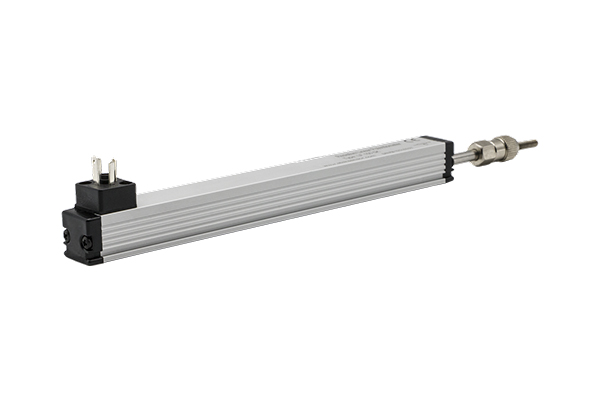

    LF LINEAR POTENTIOMETER

    The LF series potentiometric linear rulers are designed so that the moving rod does not extend from the back of the ruler.

    This allows for easy installation in confined spaces.

    Since they operate on the potentiometric principle, they function in ABSOLUTE mode, meaning they do not lose their position during power outages.

    Analog output options include potentiometric, 4-20 mA (optional 0-20 mA), or 0-10V.

    Thanks to their linearized conductive plastic resistance alloy and special contacts, they are resistant to wear and tear.

    They offer long service life with up to 100 million movements.

    Their linearized structure ensures stable performance and consistent measurements.

    ADVANTAGES OF LF LINEAR POTENTIOMETER

    Front rod extension (no rear rod extension)

    Potentiometric measurement

    Potentiometric, 4-20 mA, or 0-10V analog output

    Standard IP40, optional IP65 protection class

    Optional cable or DIN 43650-C socket connection

    Measurement ranges from 10 mm to 300 mm

    Long lifespan with up to 100 million movements

    High precision

    Operating speed of 5 m/s

    Compact design

    Operating Temperature -30°C ... +100°C
    Operating Speed ≤ 5 m/s
    Electrical Connection DIN 43650-C socket or 3 x 0.14 mm² shielded cable
    Resistance 5K, 10K
    Protection Class IP40
    Displacement/Stroke 10...300 mm
    Linearity ±%1...±%0.1
    Repeatability 0.01 mm
    Supply Voltage 42V max, 12…30 VDC
    Output Signal Potentiometric, 4-20 mA (optional 0…20 mA) or 0-10V
