    Optical Rotary Encoders

    Emos Group Industrial Electronics Rotary Encoders Optical Rotary Encoders

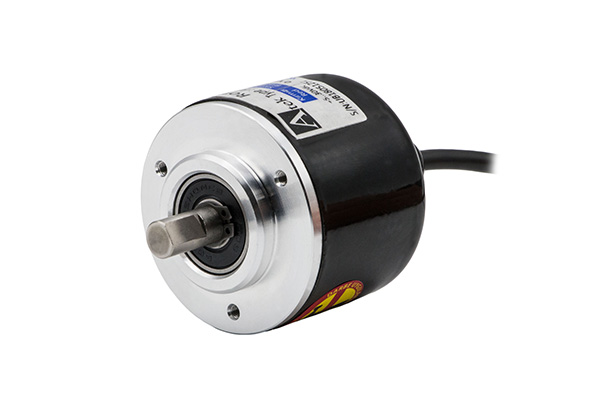

    ARC S 50 Shaft Rotary Enkoder

    Arc S 50 Shaft Rotary ENCODER Incremental precision measurement, 50 mm body diameter, optical principle, high precision measurement, shaft design properties have.
    Resolution Options between 60 and 20000 pulse
    Working temperature -25 ° C ... +85 ° C
    Electrical connection 5 or 8 x 0.14 mm2 display cable M16 socket
    Feeding voltage 10 ... 30 VDC or 5 VDC

    PDF

    Whatsapp

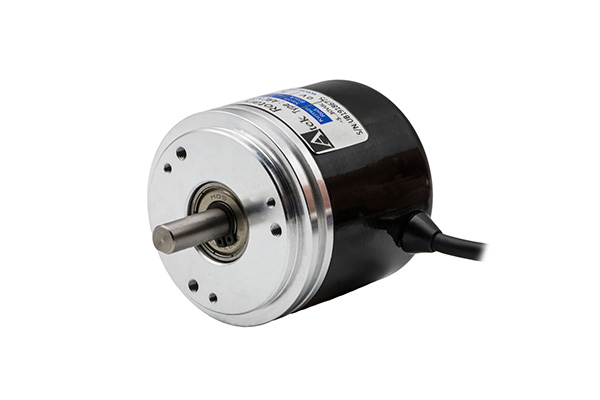

    ARC S 58 Shaft Rotary Enkoder

    Arc S 58 Shaft Rotary ENCODER INCREMENTAL SENSITIVE MEASUREMENT, 58 mM body diameter, high -precision measurement, shaft design, different flange option features.
    Resolution Options between 60 and 20000 pulse
    Working temperature -25 ° C ... +85 ° C
    Electrical connection 5 or 8 x 0.14 mm2 display cable
    Feeding voltage 10 ... 30 VDC or 5 VDC

    PDF

    Whatsapp

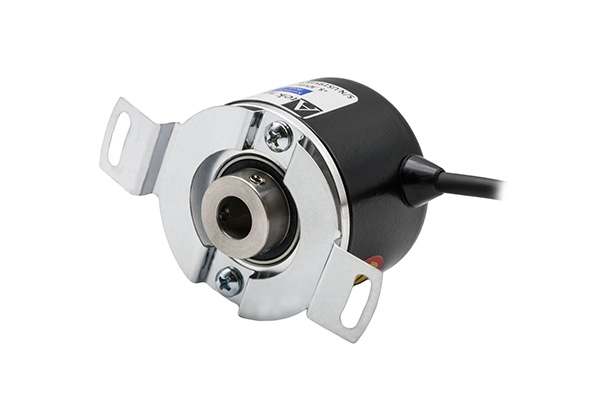

    Arc B 50 End Hollow Rotary Enkoder

    Arc B 50 End Hollow Rotary ENCODER ENCODER Incremental precision measurement, 50 mm body diameter, high -precision measurement, semi -hole (End Hollow) shaft, has different flange options features.
    Working temperature -25 ° C ... +85 ° C
    Electrical connection 5 or 8 x 0.14 mm2 display cable

    PDF

    Whatsapp

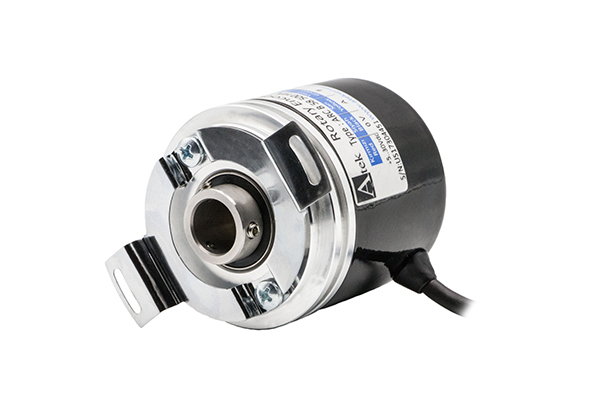

    Arc B 58 End Hollow Rotary Enkoder

    Arc B 58 End Hollow Rotary ENCODER is inkremental precision measured.The 58 mm body diameter has high sensitivity measurement, semi -hole shaft, and has different flange options.
    Resolution Options between 60 and 20000 pulse
    Working temperature -25 ° C ... +85 ° C
    Electrical connection 5 or 8 x 0.14 mm2 display cable
    Feeding voltage 10 ... 30 VDC or 5 VDC

    PDF

    Whatsapp

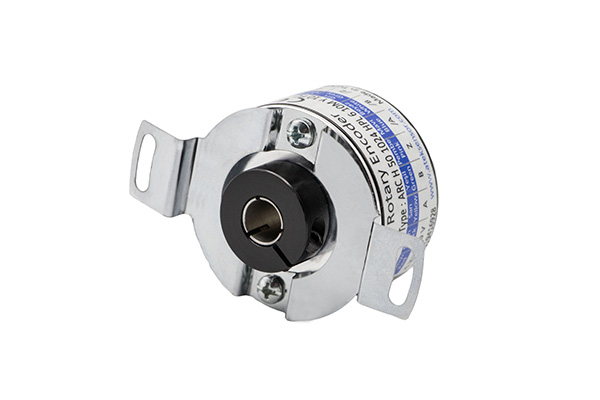

    ARC H 50 Hollow Shaft Rotary Enkoder

    ARC H 50 Hollow Shaft Incremental Sensitive Measurement.The body diameter of 50 mm has a high precision measurement, full -perforated (Hollow) shaft, different flange option features.
    Resolution Options between 60 and 5000 pulse
    Working temperature -25 ° C ... +85 ° C
    Electrical connection 5 or 8 x 0.14 mm2 display cable
    Feeding voltage 10 ... 30 VDC or 5 VDC

    PDF

    Whatsapp

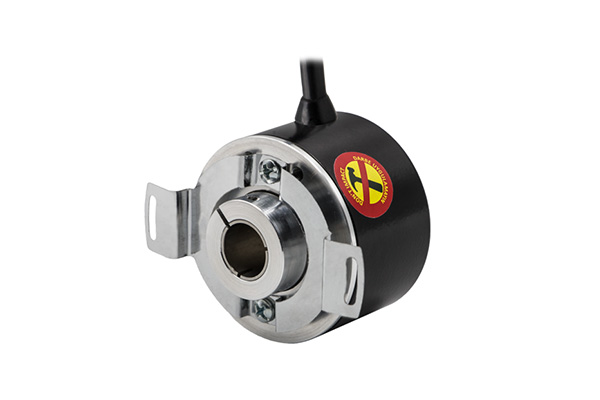

    ARC H 58 Hollow Shaft Rotary Enkoder

    ARC H 58 Hollow Shaft Makes Incremental Sensitive Measurement.The 58 mm body diameter has high sensitivity measurement, full -perforated (Hollow) shaft, different flange option features.
    Resolution 1024 to 20000 pulse between options
    Working temperature -25 ° C ... +85 ° C
    Electrical connection 5 or 8 x 0.14 mm2 display cable
    Feeding voltage 10 ... 30 VDC or 5 VDC

    PDF

    Whatsapp

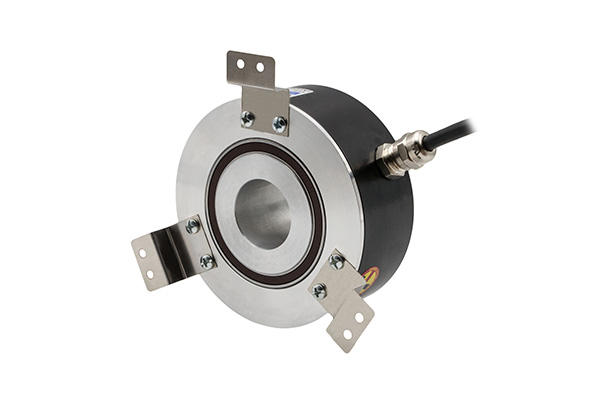

    ARC H 100 Hollow Shaft Rotary Enkoder

    ARC H 100 Hollow Rotary ENCODER Makes Incremental Sensitive Measurement.The 58 mm body diameter has high sensitivity measurement, full -perforated (Hollow) shaft, different flange option features.
    Resolution 1024 pulse
    Working temperature -25 ° C ... +85 ° C
    Electrical connection 5 or 8 x 0.14 mm2 display cable
    Feeding voltage 10 ... 30 VDC or 5 VDC

    PDF

    Whatsapp

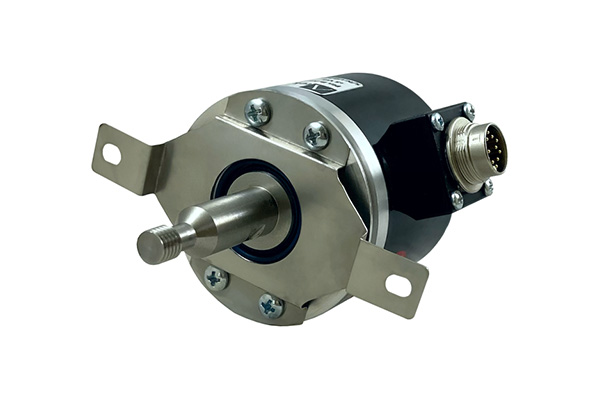

    ARC/ARS-S-1XP8001 Special Serial Rotary Encoder

    ARC/ARS-S-1XP8001 Special Series Special Manufacturing Series product.Incremental precision measurement, 58 mm body diameter, magnetic or optical principle option, special screw special milestone, reverse polarity and short circuit protection features.
    Çözünürlük 1024 pulse
    Working temperature -25 ° C ... +85 ° C
    Electrical connection 5 or 8 x 0.14 mm2 display cable
    Feeding voltage 10 ... 30 VDC or 5 VDC

    PDF

    Whatsapp
