    TR Potentiometric Linear Scale

    TR Series Potentiometric Linear Scales operate linearly based on the potentiometric (resistive) principle. They provide precise and cost-effective position measurements. With a compact design and the ability to operate at high speeds, they feature a spring mechanism that pushes the shaft outward. The scales offer a high repeatability value of 0.002 mm.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

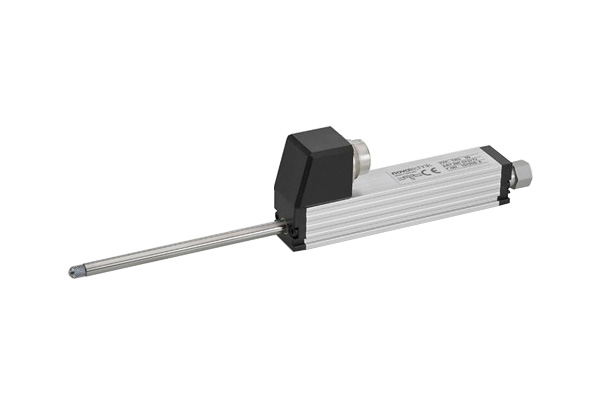

    TR SERIES LINEAR POTENTIOMETER

    The TR Series Potentiometric Linear Scales from the German company Novotechnik operate linearly based on the potentiometric (resistive) principle.

    The TR Series Linear Scales are manufactured with a spring-loaded design.

    Thanks to the return spring, the TR Series scales function as a TASTER.

    With the TR Series Potentiometers, you can perform tension control and tension adjustment.

    These scales measure by touching the material to be measured, rather than attaching to it.

    The TR Series scales are used for thickness, position, and continuously moving material control measurements.

    Thanks to their minimal design, the TR Series scales allow for easy installation in tight spaces.

    Potentiometric Linear Scales are highly sensitive due to their polymer-coated high-quality resistive tracks and platinum/silver-coated multi-finger spring contacts.

    They provide a smooth analog signal with high linearity and have an exceptionally long lifespan.

    As analog devices, they do not lose position data during power outages.

    They do not miss position readings even during fast movements, ensuring accurate position information at all times.

    They are resistant to vibrations and impacts.

    Novotechnik minimizes production losses with its high repeatability value.

    Resolution < 0.01 mm
    Operating Temperature -30°C ... +100°C
    Operating Speed 5m/s
    Electrical Connection 3-pole cable, PVC insulated, 0.14 mm² (AWG 26), shielded, 2 meters length
