    AC Drive

    Emos Group Industrial Electronics Industrial Automation and Control AC Drive

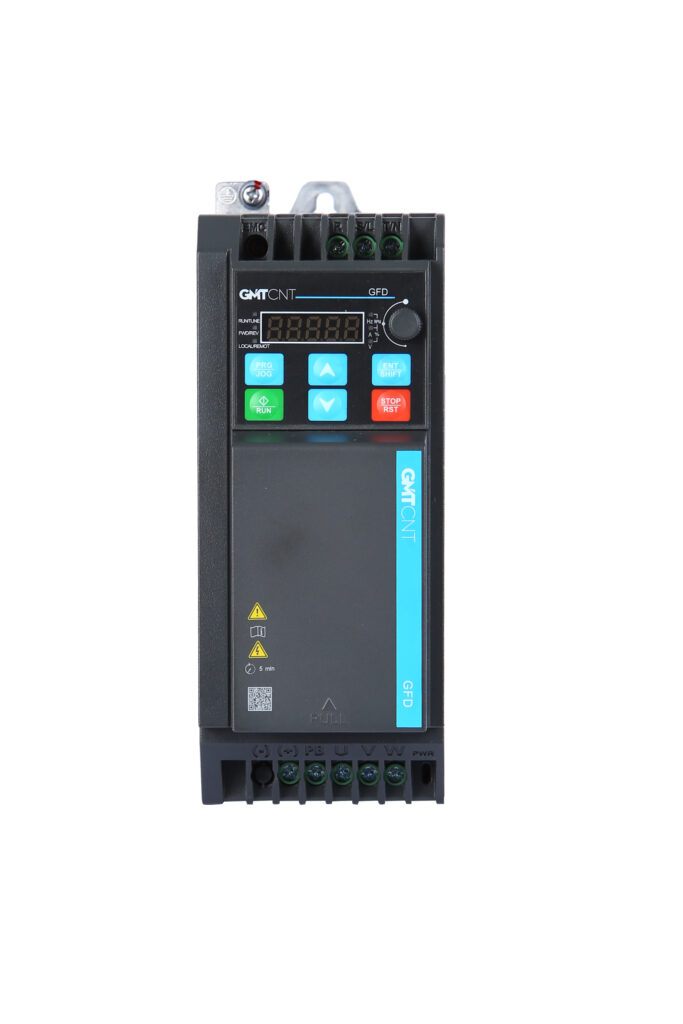

    GFD 0.40kW~2.2kW

    It is an AC drive and inverter. It operates on 200V-240V single phase, supports V/F and sensorless vector control. It drives IM/PM motors, offers 150%/60s overload capacity, includes a brake unit, ModBus communication, and autotune features. Additionally, it provides an EMC filter, STO function, fast parameter copying, and analog/digital input-output.
    Frequency Range 0 Hz to 599 Hz
    Acceleration and Deceleration 0.1 sec to 3600.0 sec
    DC Braking Yes
    PID Function Yes

    Whatsapp

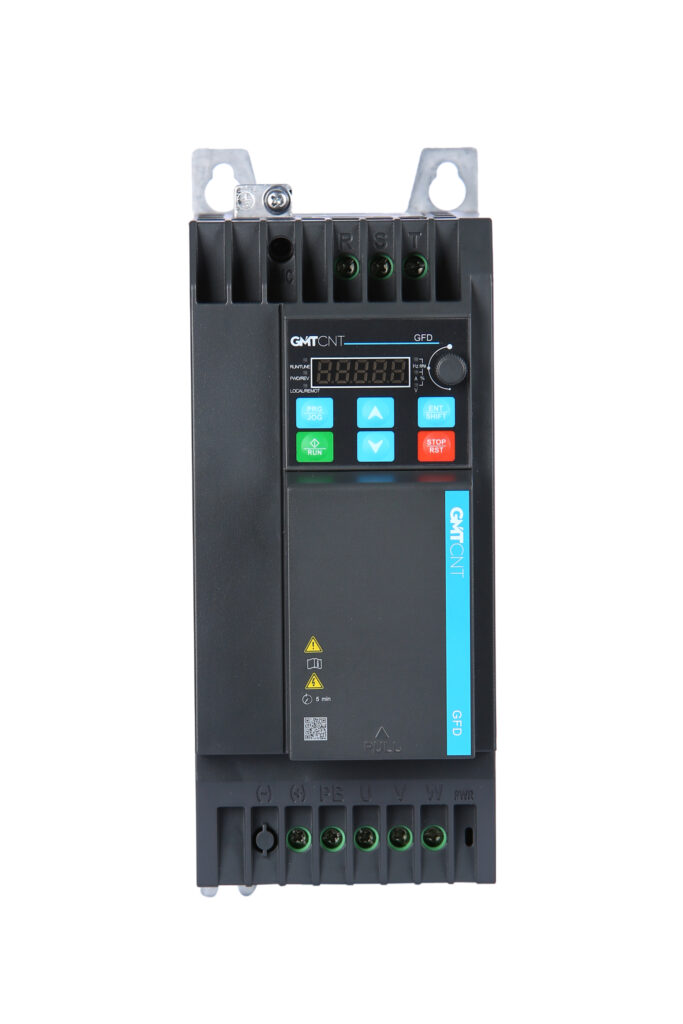

    GFD 0.75 kW~7.5 kW

    GFD AC 3 Phase 380V-480V speed controller offers V/F and sensorless vector control (SVC). It provides %150/60s overload capacity, ModBus RS485 communication, autotune, C3 EMC filter, STO (optional), 2 analog inputs/outputs, 4 digital inputs, and 2 relay outputs. It features an innovative design and long lifespan.
    Frequency Range 0 Hz to 599 Hz
    Acceleration and Deceleration 0.1s to 3600.0s
    DC Braking Yes
    PID Function Yes

    Whatsapp

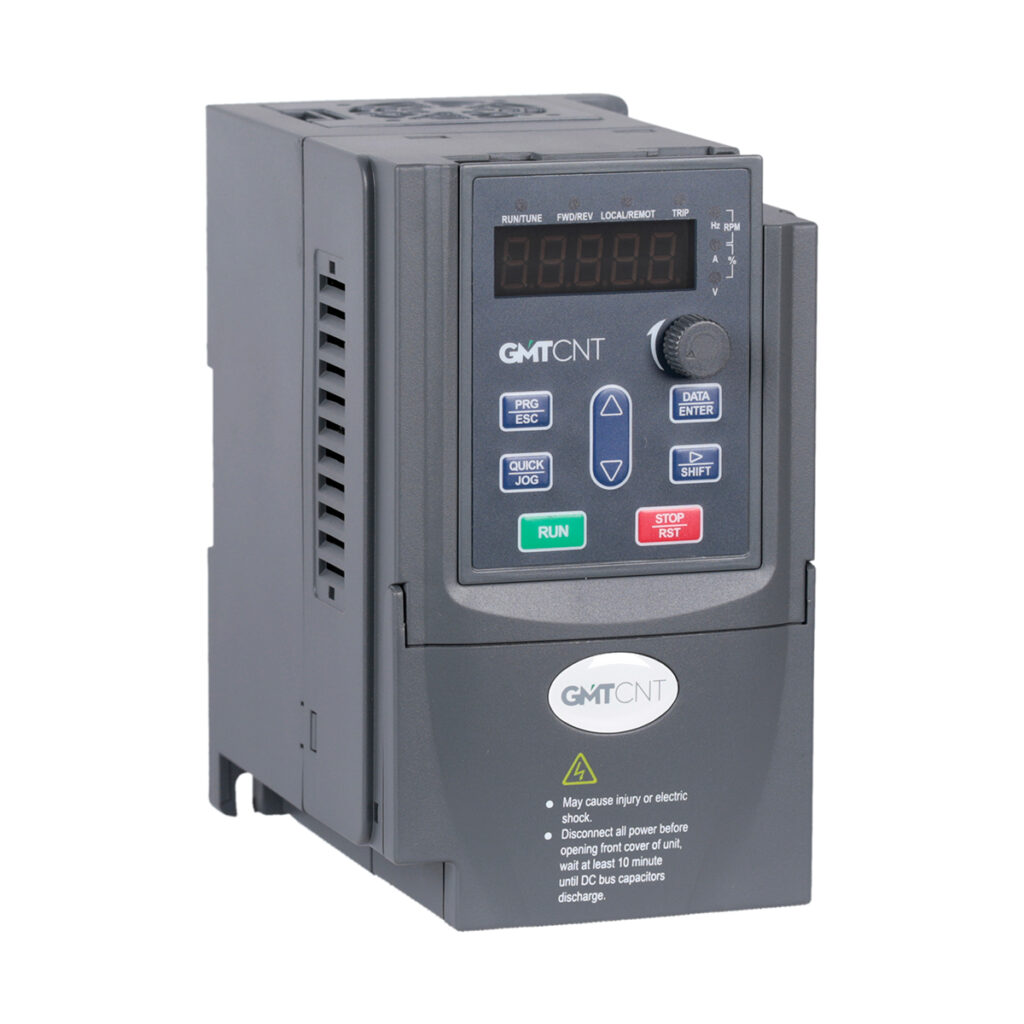

    MICNO 0.40 kW~2.2 kW

    It offers 150% starting torque with V/F and open-loop vector control, powered by 220VAC. Modbus RTU-supported RS-485 communication, PID control, portable panel, and autotune feature automatically adjust motor parameters. With a built-in brake chopper and output frequency up to 3000Hz, it is ideal for fan and pump applications.
    Frequency Range V/f control: 0 Hz to 3000.0 Hz
    Vector control: 0 Hz to 300.00 Hz
    Acceleration and Deceleration From 0.1 sec to 3600.0 sec
    DC Braking Yes
    PID Function Yes

    PDF

    Whatsapp

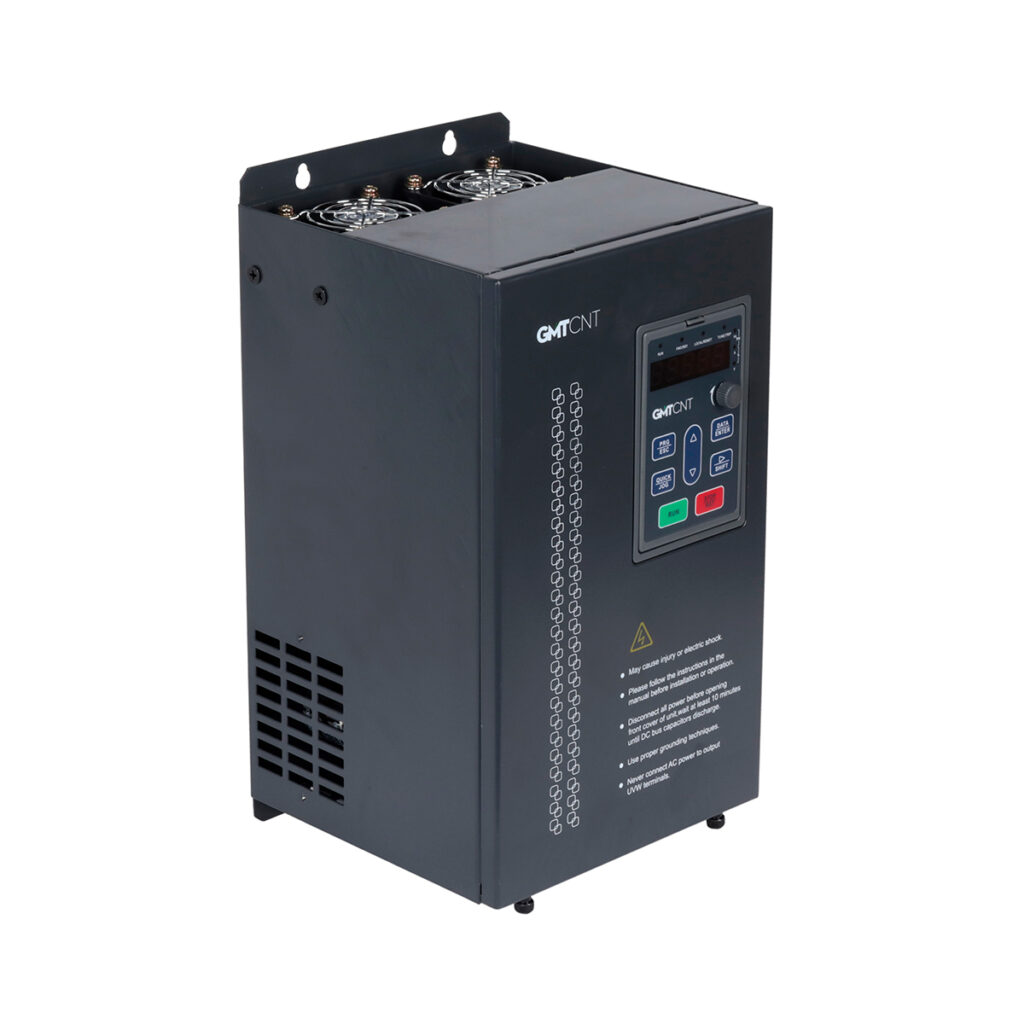

    MICNO 0.75 kW~630 kW

    380VAC powered, offers 150% starting torque with V/F and open-loop vector control. It features 7 digital inputs, 2 analog inputs/outputs, 2 relay outputs, PID, and torque control. With Modbus RTU supported RS-485 port, portable panel, autotune, built-in brake chopper, and up to 3000Hz frequency, it is efficient in fan-pump applications.
    Frequency Range V/f control: from 0 Hz to 3000.0 Hz
    Open-loop vector control: from 0 Hz to 300.00 Hz
    Acceleration and Deceleration From 0.1 sec to 3600.0 sec
    DC Braking Yes
    PID Function Yes

    PDF

    Whatsapp

    GAIN 0.40kW ~ 2.2kW

    Powered by 220VAC, it offers V/F control and 150% starting torque. It features 4 digital inputs, 1 relay output, 1 analog input/output, and PID control. With an RS-485 port supporting Modbus RTU, a built-in brake chopper, energy balancing, autotune, and an adjustable output frequency of up to 3000Hz, it provides an efficient solution.
    Frequency Range 0 Hz to 3000 Hz
    Acceleration and Deceleration 0.1 sec to 3600.0 sec
    DC Braking Available
    PID Function Available

    PDF

    Whatsapp

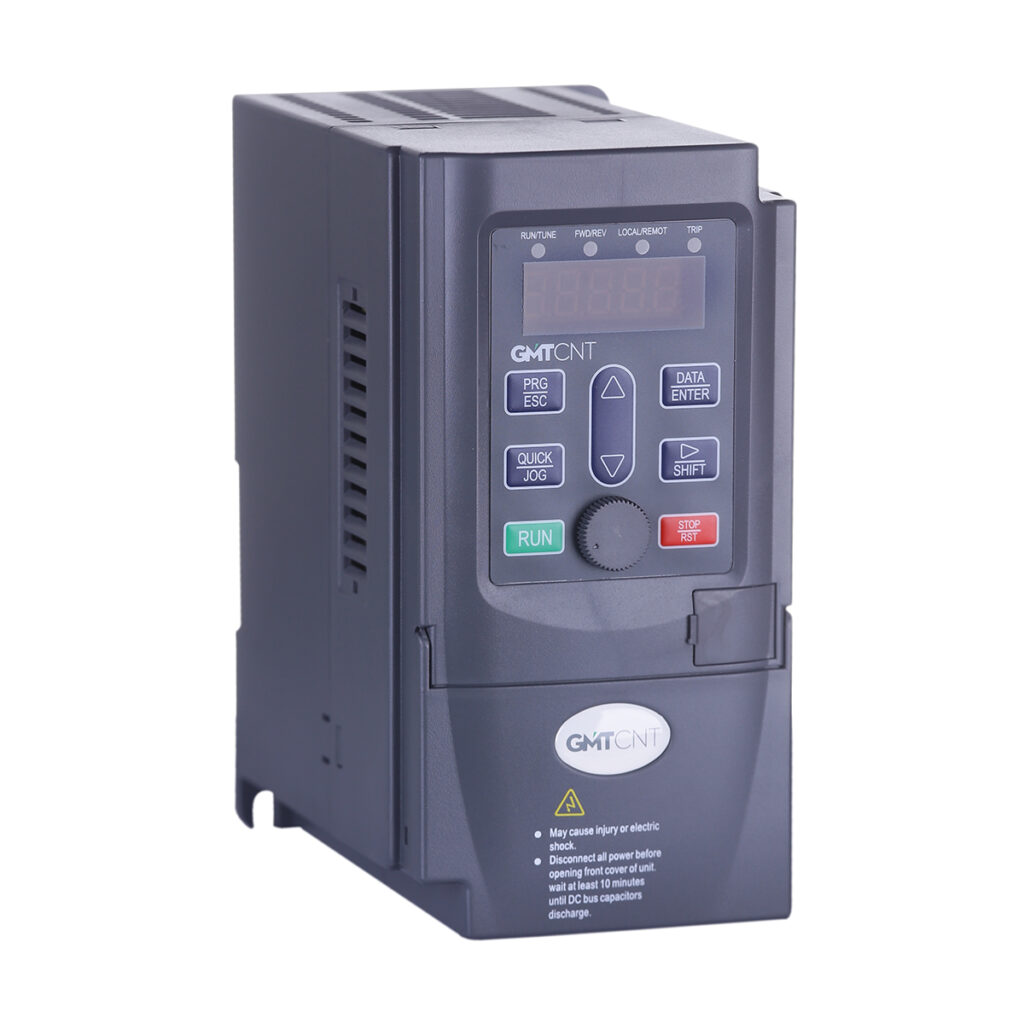

    GAIN 0.75 kW~3.7 kW

    Powered by 380VAC, it provides 150% starting torque with V/F control. It features 4 digital inputs, 1 relay output, 1 analog input/output, and PID control capabilities. The RS-485 port supports Modbus RTU, and it includes an internal brake chopper, energy balancing, autotune, and an adjustable output frequency of up to 3000Hz.
    Frequency Range 0 Hz to 3000 Hz
    Acceleration and Deceleration 0.1 sec to 3600.0 sec
    DC Braking Available
    PID Function Available

    PDF

    Whatsapp
