    TS Potentiometric Linear Scale

    TS Series Potentiometric Linear Scales operate linearly based on the potentiometric (resistive) principle. They provide precise and cost-effective position measurements. With a compact design and the ability to operate at high speeds, they offer a high repeatability value of 0.002 mm.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

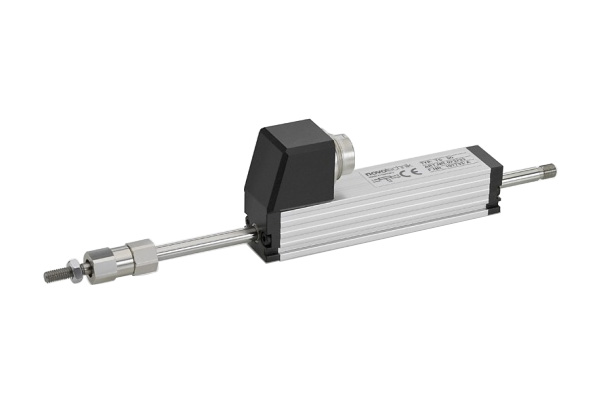

    TS SERIES LINEAR POTENTIOMETER

    The TS Series Potentiometric Linear Scales from Novotechnik, a German company, operate linearly based on the potentiometric (resistive) principle.

    The Novotechnik TS Series Linear Scales are manufactured with internally threaded components.

    They can be connected to the material being measured to perform precise measurements.

    The TS Series Scales are used for thickness and position material control measurements.

    Thanks to their minimal design, the TS Series scales allow for easy installation in tight spaces.

    Potentiometric Linear Scales are highly sensitive due to their polymer-coated high-quality resistive tracks and platinum/silver-coated multi-finger spring contacts.

    They provide a smooth analog signal with high linearity and have an exceptionally long lifespan.

    As analog devices, they do not lose position data in the event of a power outage.

    They do not miss position readings even during fast movements, ensuring accurate position information at all times.

    They are resistant to vibrations and impacts.

    Novotechnik minimizes production losses with its high repeatability value.

    Resolution < 0.01 mm
    Operating Temperature -30°C ... +100°C
    Operating Speed 5m/s

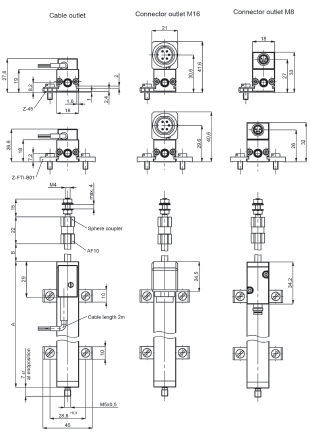

    Electrical Connection 5-pin connector M16x0.75 (IEC 130-9), other connectors available upon request
