    Profile Projector Devices

    Emos Group Quality Control Profile Projector Devices

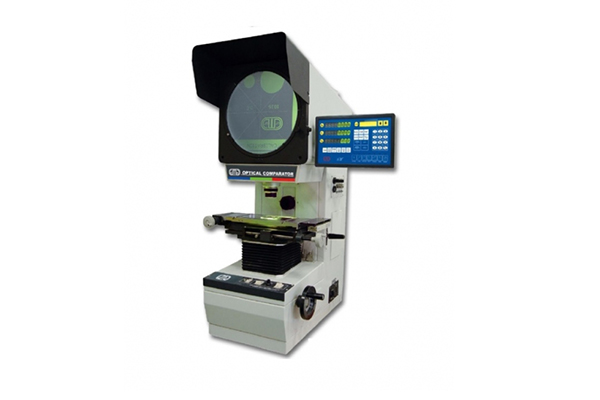

    PV3015AE Profile Projector

    PV3015AE Profile Projectors have high-quality optical measurement performance. They feature a resolution of 0.0005 mm (0.5μm). The projector offers axis movements up to 150x50 mm.
    Table Size (mm) 340 x 152
    Glass Table Size (mm) 196 x 96
    X Axis Movement 150 mm
    Y Axis Movement 50 mm
    Z Axis Movement (mm) 90 mm

    PDF

    Whatsapp

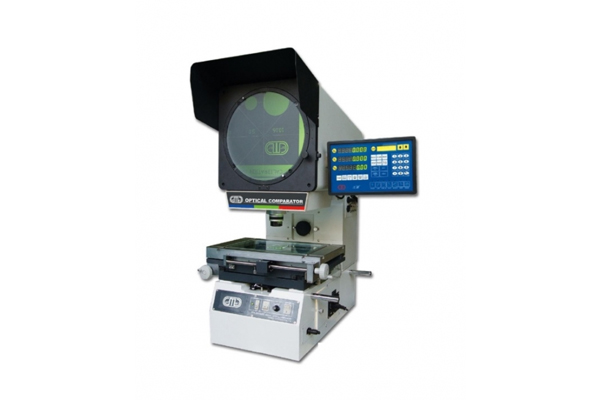

    PV3000AE Profile Projector

    PV3000AE Profile Projectors offer high-quality optical measurement performance. They feature a resolution of 0.0005 mm (0.5μm). Axis movements are available from 150x100 mm to 400x300 mm.
    Table Size (mm) 354 x 228, 404 x 228, 450 x 280, 500 × 330, 450×350
    Glass Table Size (mm) 210 x 160, 260 x 160, 306 x 196, 350 × 250, 606 × 466
    X Axis Movement 150 mm, 200 mm, 250 mm, 295 mm, 400 mm
    Y Axis Movement 100 mm, 150 mm, 195 mm, 300 mm
    Z Axis Movement (mm) 100 mm

    PDF

    Whatsapp

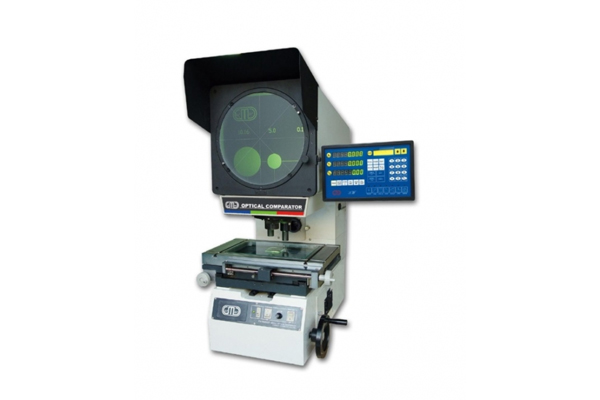

    PV3000CE Profile Projector

    PV3000CE Profile Projectors: These projectors offer high-quality optical measurement performance. They are equipped with a rotating lens turret that includes three different lenses. The projector has a resolution of 0.0005 mm (0.5 μm). The axis movements range from 150x100 mm to 250x150 mm.
    Table Size (mm) 354 x 228, 404 x 228, 450 x 280
    Glass Table Size (mm) 210 x 160, 260 x 160, 306 x 196
    X Axis Movement 150 mm, 200 mm, 250 mm
    Y Axis Movement 100, 150
    Z Axis Movement (mm) 100

    PDF

    Whatsapp

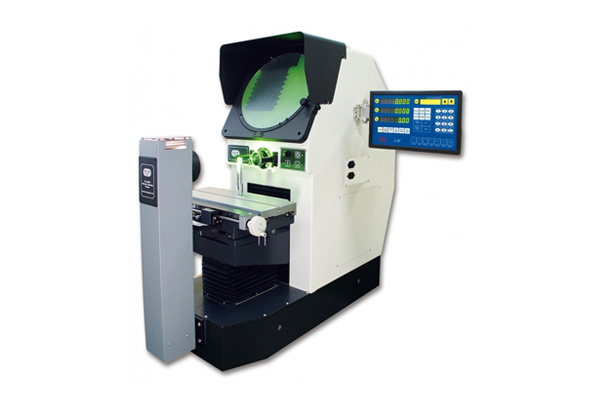

    PH3000 Profile Projector

    The PH3000 Profile Projectors are used for measuring your products horizontally. They offer axis movements up to 200x250 mm. The resolution is 0.001 mm (1μm). It is supplied with a standard 10X lens.
    Table Size (mm) 400 x 150, 450 x 200
    X Axis Movement 200 mm, 250 mm
    Y Axis Movement 100, 75
    Z Axis Movement (mm) 100, 150 mm

    PDF

    Whatsapp

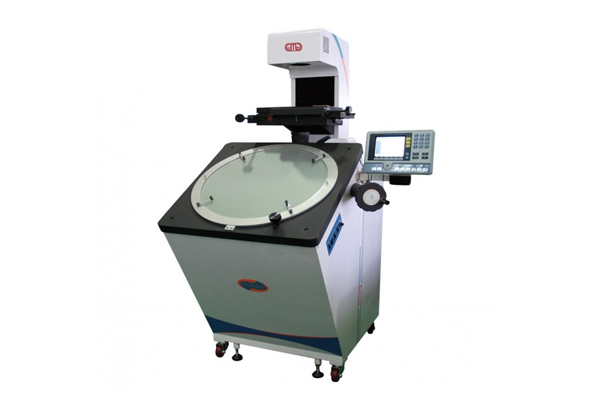

    PV6020V Profile Projector

    The PV6020V Profile Projectors are used for measuring the 2D dimensions of your products. With a screen size of Ф 615 mm, measurements can be taken up to Ф 600 mm. It offers axis movements of 200x100 mm.
    Table Size (mm) 404 x 265
    Glass Table Size (mm) 270 x 170
    X Axis Movement 200 mm
    Y Axis Movement 50
    Z Axis Movement (mm) 100

    PDF

    Whatsapp

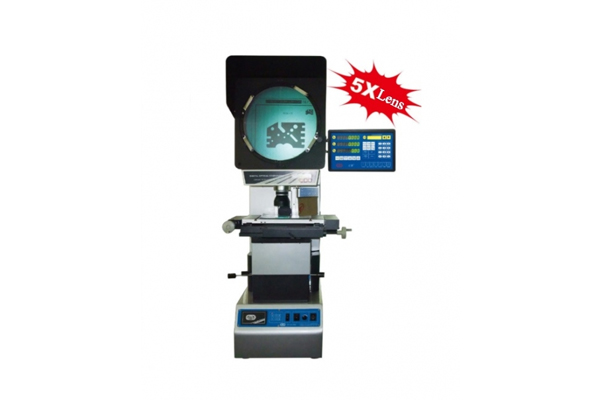

    PV3000D Profile Projector

    The PV3000D Step Motor Profile Projectors feature a stepper motor on the Z axis. It offers a Z-axis movement of 100 mm. It is supplied with a standard 5X lens. The axis movements are available up to 100x200 mm. It has a resolution of 0.5 μm.
    Glass Table Size (mm) 210 x 160, 260 x 160
    X Axis Movement 150 mm, 200 mm
    Y Axis Movement 100
    Z Axis Movement (mm) 100
