    Video Measurement Devices

    Emos Group Quality Control Video Measurement Devices

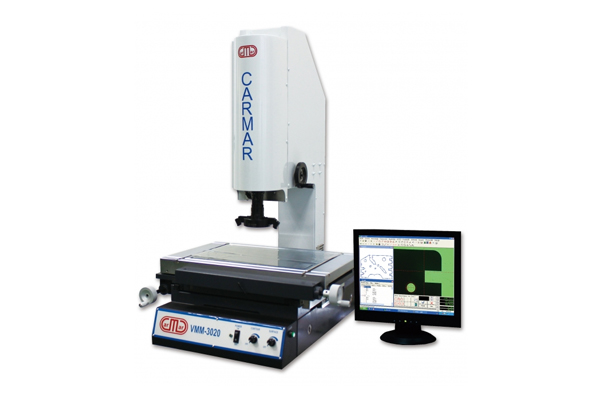

    VMM Manual Video Measurement Machine

    VMM Manual Video Measurement Machines have automatic Z-axis movement. They offer a resolution of 0.0005 mm (0.5μm). The maximum glass plate size is 450x350 mm. It is equipped with a 1/3” Color CCD Camera.
    Resolution 0.0005 mm (0.5 µm)
    Power Supply 110Vac - 220Vac 50/60Hz.
    Weight 100 kg, 110 kg, 120 kg, 140 kg, 240 kg
    Table Dimensions 354x338 mm, 404x228 mm, 450x280 mm, 500x330 mm, 606x466 mm
    Glass Table Size (mm) 450 x 350, 210 x 160, 260 x 160, 306 x 196, 350 × 250

    PDF

    Whatsapp

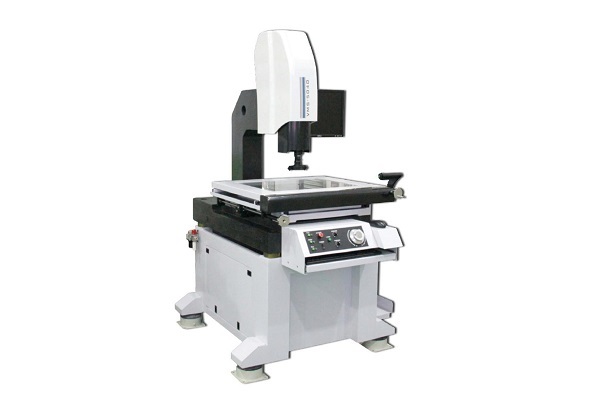

    VMM5040M Manual Video Measuring Machine

    VMM5040M Manual Video Measuring Machines are equipped with servo motor-driven Z-axis movement. They offer a resolution of 0.005 mm (5μm) and feature a maximum glass table size of 570×470 mm. The system includes a 1/2” Color CCD Camera.
    Resolution 5 µm
    Power Supply 110Vac - 220Vac 50/60Hz.
    Weight 800 kg
    Table Dimensions 786x636 mm
    Glass Table Size (mm) 570x470 mm

    Whatsapp

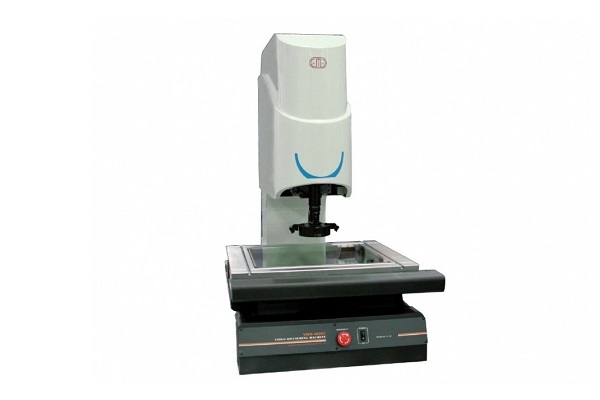

    VMM-C CNC Video Measuring Machine

    VMM-C CNC Video Measuring Machines offer a resolution of 0.0005 mm (0.5μm). They feature a maximum glass table size of 450x350 mm and are equipped with a 1/2” Color CCD Camera and Zoom Lens.
    Resolution 0.0005 mm (0.5 µm)
    Power Supply 110Vac - 220Vac 50/60Hz.
    Weight 201 kg, 223 kg, 321 kg
    Table Dimensions 450x280 mm, 500x300 mm, 606x486 mm
    Glass Table Size (mm) 450 x 350, 306 x 196, 350 × 250

    PDF

    Whatsapp

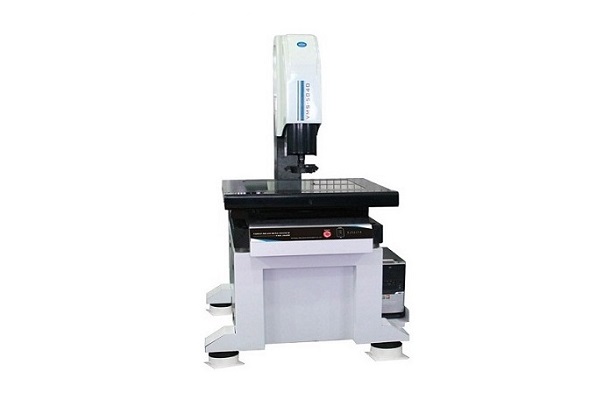

    VMM-5040C CNC Video Measuring Machine

    VMM-5040C CNC Video Measuring Machines offer a resolution of 0.0005 mm (0.5μm). They feature a maximum glass stage size of 450x350 mm. Equipped with a 1/2” color CCD camera and a zoom lens.
    Resolution 0.0005 mm (0.5μm)
    Power Supply 110Vac - 220Vac 50/60Hz
    Weight 850 kg
    Stage Dimensions 786x636 mm
    Glass Stage Size (mm) 570x470 mm

    PDF

    Whatsapp

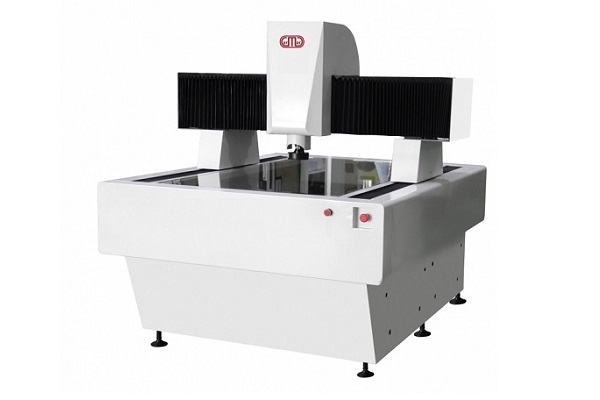

    VMM-K Bridge Type CNC Video Measuring Machine

    The VMM-K Bridge Type CNC Video Measuring Machine offers a resolution of 0.0005 mm (0.5μm). It features a maximum glass stage size of 900 x 1588 mm. Equipped with a 1/2” color CCD camera and a zoom lens.
    Resolution 0.0005 mm (0.5μm)
    Power Supply AC 240V 60Hz. Power: 1800W
    Weight 1500 kg, 1900 kg
    Glass Stage Size (mm) 700x1190 mm, 900x1588 mm

    PDF

    Whatsapp
