    TLH Potentiometric Linear Scale

    TLH Potentiometric Linear Scale are used for linear position control and distance measurement. Thanks to the ball joint connection, they are not affected by axial misalignments. They provide precise and long-lasting position measurement while occupying minimal space with their rodless and top-sliding design.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Sonraki Ürün

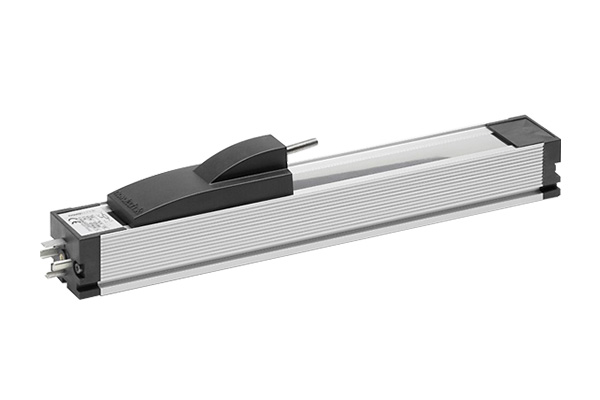

    TLH SERIES LINEAR POTENTIOMETER

    The TLH Series Potentiometric Linear Scales from the German company Novotechnik operate linearly based on the potentiometric (resistive) principle.

    TLH series linear scales are top-mounted sliding gimbal-type linear scales.

    TLH series Potentiometric Scales are used for linear position control and distance measurements.

    Thanks to the moving gimbal, the scales are not affected by parallel misalignments.

    With their shaftless design, TLH Series scales take up less space in applications.

    Potentiometric Linear Scales are highly sensitive due to their polymer-coated, high-quality resistive tracks and platinum/silver-coated multi-finger spring contacts.

    They provide smooth analog signals with high linearity and have a very long lifespan.

    Since they are analog, they do not lose position information during power failures.

    They do not miss during fast movements and always provide accurate position information.

    They are resistant to vibrations and shocks.

    Novotechnik minimizes production losses with high repeatability values.

    Resolution < 0.01 mm
    Operating Temperature -30°C ... +100°C
    Operating Speed 10 m/s
    Electrical Connection 4-pin socket, compliant with DIN 43650
