    Optical Rulers

    Emos Group Digital Measurement Systems Digital Measuring Rulers Optical Rulers

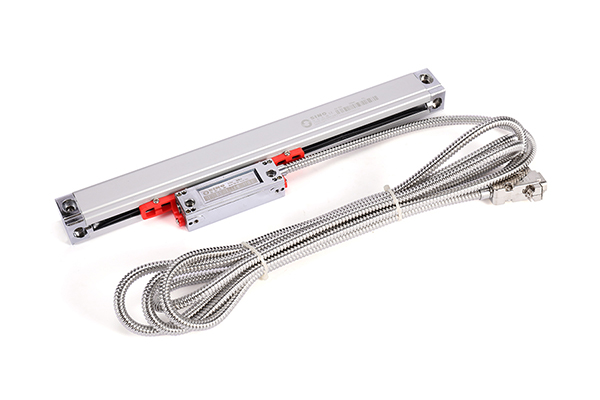

    Sino KA300 Optical Linear Scale

    SINO KA300 Optical Glass Scales are used in lathes, milling machines, boring machines, grinding machines, special machinery, and automation applications. They offer standard resolutions of 1 µm (0.001 mm) and 5 µm (0.005 mm). Available in measurement/stroke lengths up to 3100 mm.
    Resolution 1µm, 5µm, or 1Vpp Sine Wave
    Operating Speed 3 m/s
    Electrical Connection D-Sub 9 pin, 5 or 8 x 0.14 mm² shielded cable
    Supply Voltage 5V DC - TTL Line Driver

    Whatsapp

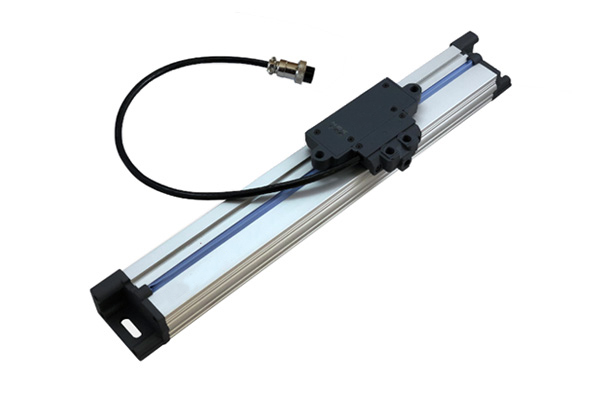

    OLC43X Optical Linear Scale

    OLC43X Optical Linear Encoders consist of a seal-protected aluminum profile housing and a reader sensor that moves along this housing on bearings. OLC43X Optical Scales are available in various measuring lengths ranging from 50 mm to 1000 mm. They support a movement speed of 60 m/min.
    Resolution 5µm
    Operating Temperature 0°C ... +50°C
    Electrical Connection M16 8-pin connector, 5 or 8 x 0.14 mm² shielded cable
    Supply Voltage 5 VDC, 10–30 VDC

    PDF

    Whatsapp

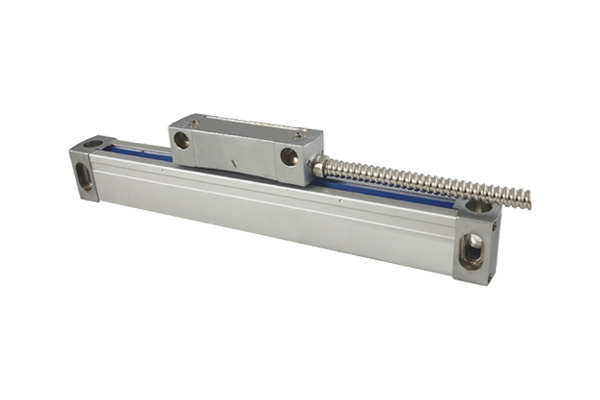

    ALS4 Slim-Body Optical Linear Scale

    ALS4 Optical Glass Scales are used in lathes, milling machines, boring machines, grinding machines, special machinery, and automation applications. They offer standard resolutions of 1 µm (0.001 mm) and 5 µm (0.005 mm). Available in measurement/stroke lengths up to 1100 mm.
    Resolution 1µm, 5µm
    Operating Temperature 0°C ... +50°C
    Operating Speed 3 m/s
    Electrical Connection D-Sub 9 pin, 5 or 8 x 0.14 mm² shielded cable
    Supply Voltage 5 VDC

    PDF

    Whatsapp

    ALS5 Optical Linear Scale

    ALS5 Optical Glass Scales are used in lathes, milling machines, boring machines, grinding machines, special machinery, and automation applications. They offer standard resolutions of 1 µm (0.001 mm) and 5 µm (0.005 mm). Available in measurement/stroke lengths up to 1100 mm.
    Resolution 1µm, 5µm, or 1Vpp Sine Wave
    Operating Temperature 0°C ... +50°C
    Supply Voltage 5 VDC

    PDF

    Whatsapp

    ALS6 Optical Linear Scale

    ALS6 Optical Glass Scales are used in lathes, milling machines, boring machines, grinding machines, special machinery, and automation applications. They offer standard resolutions of 1 µm (0.001 mm) and 5 µm (0.005 mm). Available in measurement/stroke lengths up to 3100 mm.
    Resolution 1µm, 5µm, or 1Vpp Sine Wave
    Operating Temperature 0°C ... +50°C
    Operating Speed 3 m/s
    Supply Voltage 5 VDC

    PDF

    Whatsapp
