    Non-Contact Linear Scales

    Emos Group Industrial Electronics Linear Rulers Non-Contact Linear Scales

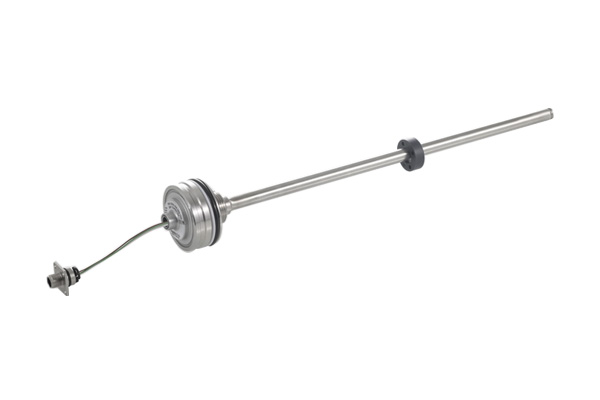

    TM1 (Plug-in Flanged) Non-Contact Linear Scale

    TM1 (Plug-in Flanged) Non-Contact Linear Scales perform non-contact and magnetostrictive measurements. They can be internally mounted to hydraulic or pneumatic cylinders and retain position information during power outages.

    Whatsapp

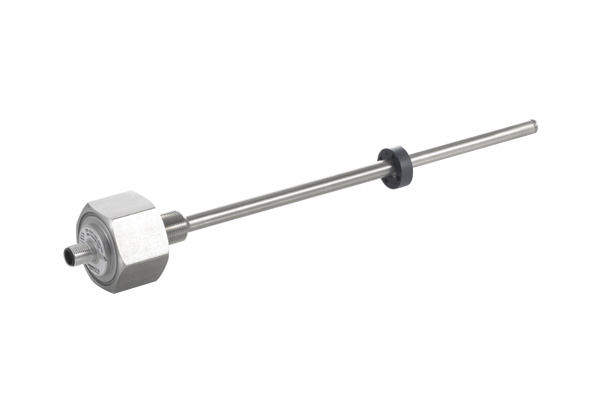

    TM1 (Screw-Flanged) Non-Contact Linear Scale

    TM1 (Screw-Flanged) Non-Contact Linear Scales perform non-contact and magnetostrictive measurements. They have the ability to be internally mounted to hydraulic or pneumatic cylinders and retain position information during power outages.

    PDF

    Whatsapp

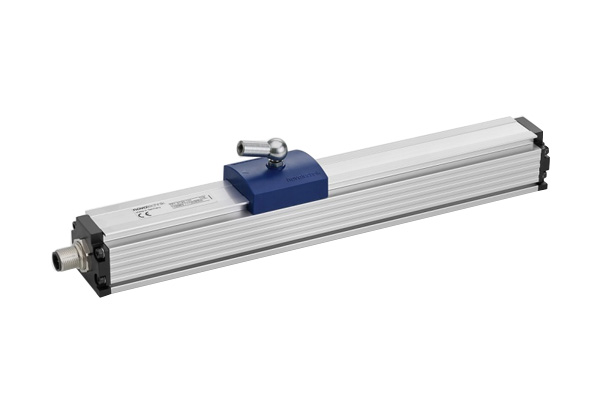

    TP1 Non-Contact Linear Scale

    The TP1 Non-Contact Linear Scale performs measurements using a non-contact and magnetostrictive principle within a robust profile. It operates frictionlessly and offers infinite mechanical life. It retains position information during power outages. The scale is insensitive to dirt, dust, and moisture, making it suitable for operation in harsh industrial environments.
    Resolution Analog: 16 bit (Theoretically infinite), Incremental: 1 μm, 5 μm (For four-phase resolution, one phase)
    Operating Temperature -40°C ... +85°C (ambient temperature -40°C ... +105°C)
    Electrical Connection With cable or socket

    PDF

    Whatsapp

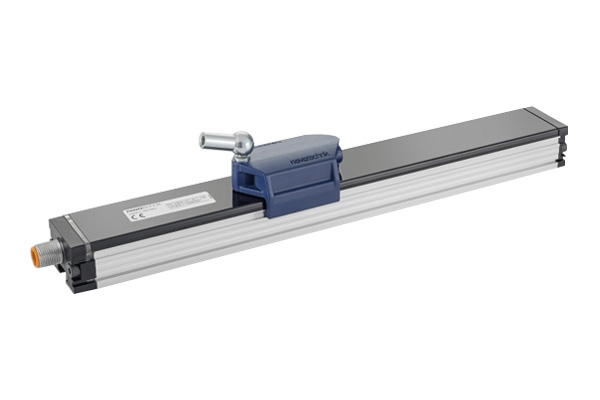

    TF1 Non-Contact Linear Scale

    The TF1 Non-Contact Linear Scale operates on a non-contact and inductive measurement principle. It has the ability to measure at high speeds and features a 10 kHz refresh rate. With infinite mechanical life, it is resistant to magnetic fields and offers extremely high precision and resolution.
    Resolution Analog: 10 μm up to 400 mm, 20 μm after 400 mm, SSI: 1 μm, 5 μm, or 10 μm, IO-Link: 1 μm
    Operating Temperature -40°C ... +85°C (CANopen: -40°C ... +75°C)
    Electrical Connection With cable or socket

    PDF

    Whatsapp

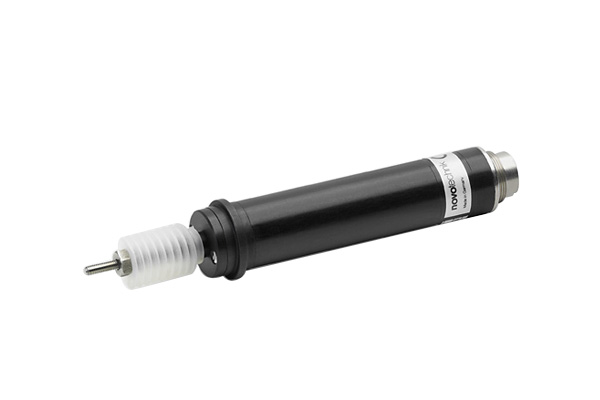

    F200G Inductive Linear Scale

    The F200G Inductive Linear Scale features a centrally-aligned inductive transducer, integrated sealed hybrid electronics, DC power supply, variable DC voltage output, excellent temperature stability, maintenance-free plastic sliding bearings, and bellows. It is designed for long life.

    Whatsapp

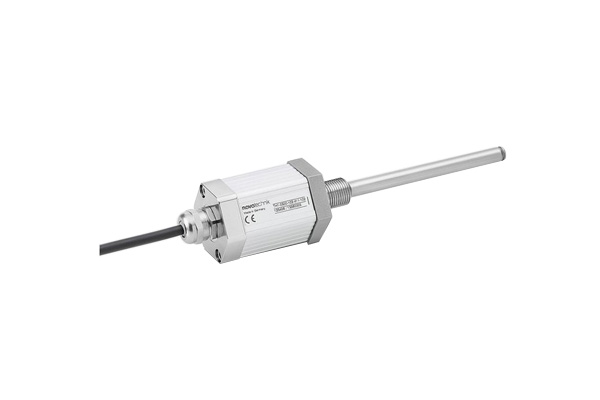

    TH1 Non-Contact Linear Scale

    It operates on a non-contact and magnetostrictive measurement principle. It is specially designed for integration into hydraulic cylinders. It offers infinite mechanical life, an optional float magnet suitable for liquid level measurement, and retains position information even during power outages.
    Resolution Analog: 16 Bit, SSI: 1 µm, 5 µm or 10 µm, IO-Link: 1 µm or 5 µm, CANopen: 1 µm or 5 µm,
    Operating Temperature -40°C ... +80°C,
    Electrical Connection With cable or connector,

    PDF

    Whatsapp

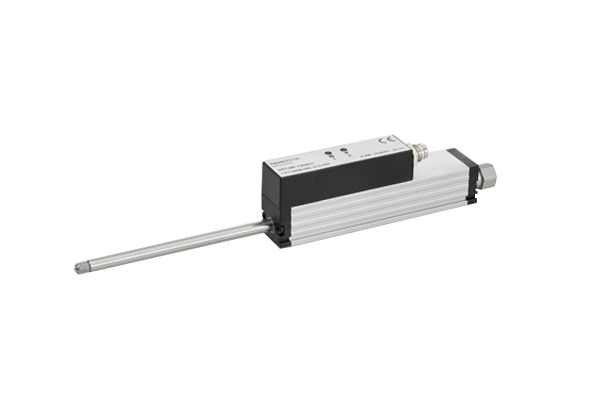

    LS1 Non-Contact Linear Scale

    LS1 Non-Contact Linear Scale features a compact body and a rod design that can operate from both ends. It provides absolute precision measurement based on the inductive principle. Thanks to its non-contact structure, it offers infinite mechanical life and adjustable measurement parameters via the teach-in function.
    Resolution 0.05%
    Operating Temperature Socket models: -40°C ... +85°C, Cable models: -30°C ... +100°C
    Electrical Connection With cable or connector

    PDF

    Whatsapp

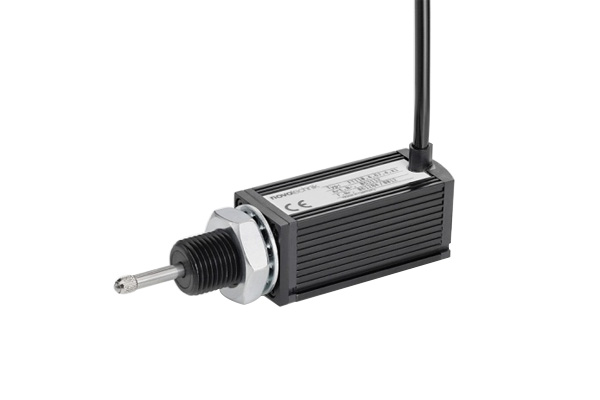

    FTI Non-Contact Linear Scale

    FTI Non-Contact Linear Scale performs absolute and highly precise measurements based on the inductive principle. Its non-contact structure ensures unlimited mechanical life. With its fully enclosed body, it offers extra durability and, thanks to its special coil, it is unaffected by temperature variations.
    Operating Temperature -25°C ... +70°C
    Electrical Connection Cable
    Supply Voltage 18...30 VDC

    PDF

    Whatsapp

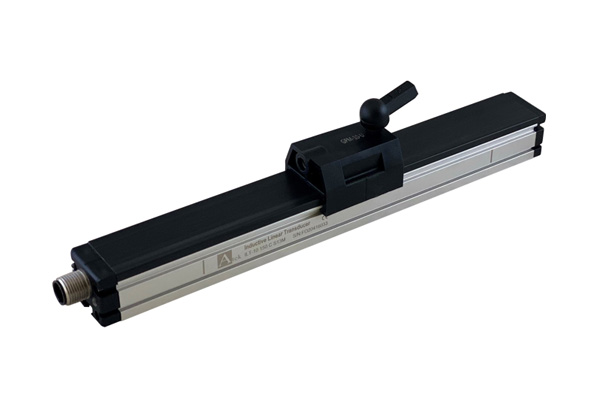

    ILT-10 Non-Contact Linear Scale

    ILT-10 Non-Contact Linear Scale performs measurements using a non-contact and inductive principle within a robust profile. Since it operates without mechanical friction, it offers infinite mechanical life. It features absolute positioning, meaning it retains position information even during power outages.
    Resolution Analog: 16 bit (Theoretically infinite), Incremental: 1 µm, 5 µm (One phase for quadrature resolution)
    Operating Temperature -40°C ... +70°C
    Electrical Connection With cable or connector
    Supply Voltage 15…33 VDC for analog models, 8...33 VDC for CANopen and SSI output models

    Whatsapp
