    LTM Linear Potentiometer

    LTM Series potentiometric linear scales are the most commonly used models in industry. They offer 4-20 mA (optional 0-20 mA) or 0-10V analog output options. Stroke lengths are available up to 1000 mm.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

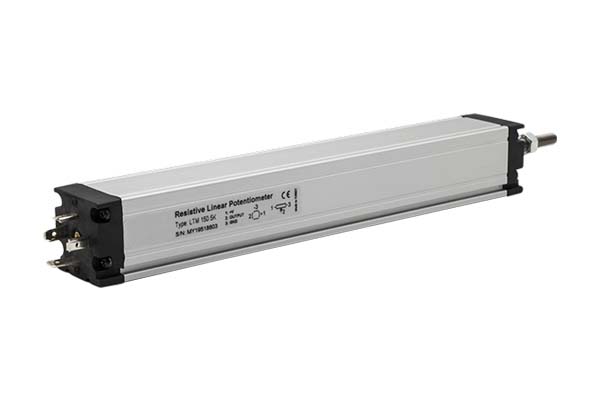

    LTM LINEAR POTENTIOMETER

    LTM Series potentiometric linear scales are the most widely used models in industry.

    They are used to measure linear movements with a one-way moving shaft.

    Since they operate based on the potentiometric principle, they function in ABSOLUTE mode, meaning they do not lose position information during power outages.

    They offer potentiometric, 4-20 mA (optional 0-20 mA), or 0-10V analog output options.

    With a linearized conductive plastic resistance alloy and special contacts, they are resistant to wear.

    They provide a lifespan of up to 100 million movements, ensuring long-term operation.

    Being linearized, they exhibit stable behavior and provide consistent measurements.

    LTM LINEAR POTENTIOMETER ADVANTAGES

    Short-distance measurement scale

    Potentiometric measurement

    Potentiometric, 4-20 mA, or 0-10V analog output options

    Optional cable or DIN 43650-C socket connection

    Measurement distances between 50 mm and 1000 mm

    Long lifespan of up to 100 million movements

    High precision

    5 m/s operating speed

    Compact design

    Operating Temperature -30°C ... +100°C
    Operating Speed ≤ 5 m/s
    Electrical Connection 3 x 0.14 mm² shielded PVC cable or DIN 43650-A 4-pin socket
    Resistance 5K, 10K
    Protection Class IP62
    Displacement/Stroke 50...1000 mm
    Linearity 0.2...0.1
    Repeatability 0.01 mm
    Supply Voltage 42V max, 12…30 VDC
    Output Signal Potentiometric, 4-20 mA (optional 0…20 mA) or 0-10V
