    LTK Linear Potentiometer

    LTK Series Potentiometric Linear Scales feature a shaftless and sliding system as their most distinctive characteristic. They offer potentiometric, 4-20 mA (optional 0-20 mA), or 0-10V analog output options. Available in stroke lengths up to 1000 mm.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

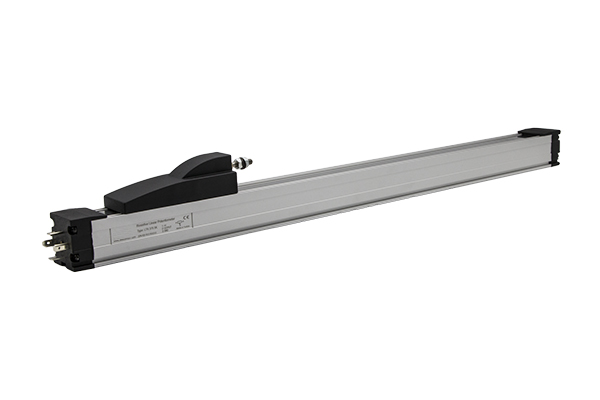

    LTK LINEAR POTENTIOMETER

    LTK Series Potentiometric Linear Scales feature a shaftless and sliding system as their most distinctive characteristic.

    They measure by the movement of the slider along the profile.

    This allows the body to be shorter and enables stroke lengths of up to 1000 mm.

    Since they measure based on the potentiometric principle, they operate in ABSOLUTE mode, meaning they do not lose position information during power outages.

    Potentiometric, 4-20 mA (optional 0-20 mA), or 0-10V analog output options are available.

    With a linearized conductive plastic resistance alloy and special contacts, they are resistant to wear.

    They have a lifespan of up to 100 million movements, allowing long-term operation.

    Being linearized, they exhibit stable behavior and provide consistent measurement.

    LTK LINEAR POTENTIOMETER ADVANTAGES

    Shaftless, sliding system

    Measurement distances between 50 mm and 1000 mm

    Potentiometric measurement

    Potentiometric, 4-20 mA, or 0-10V analog output options

    Long lifespan of up to 100 million movements

    High precision

    Compact design

    DIN43650-A socket connection

    IP40 protection class (IP54 when mounted with the slider facing downward)

    Operating Temperature -30°C ... +100°C
    Operating Speed ≤ 5 m/s
    Electrical Connection DIN 43650-A 4-pin socket
    Resistance 5K, 10K
    Protection Class IP40 (IP54 when mounted with the slider facing downward)
    Displacement/Stroke 50...1000 mm
    Linearity 0.1
    Repeatability 0.01 mm
    Supply Voltage 42V max, 12…30 VDC
    Output Signal Potentiometric, 4-20 mA (optional 0…20 mA) or 0-10V
