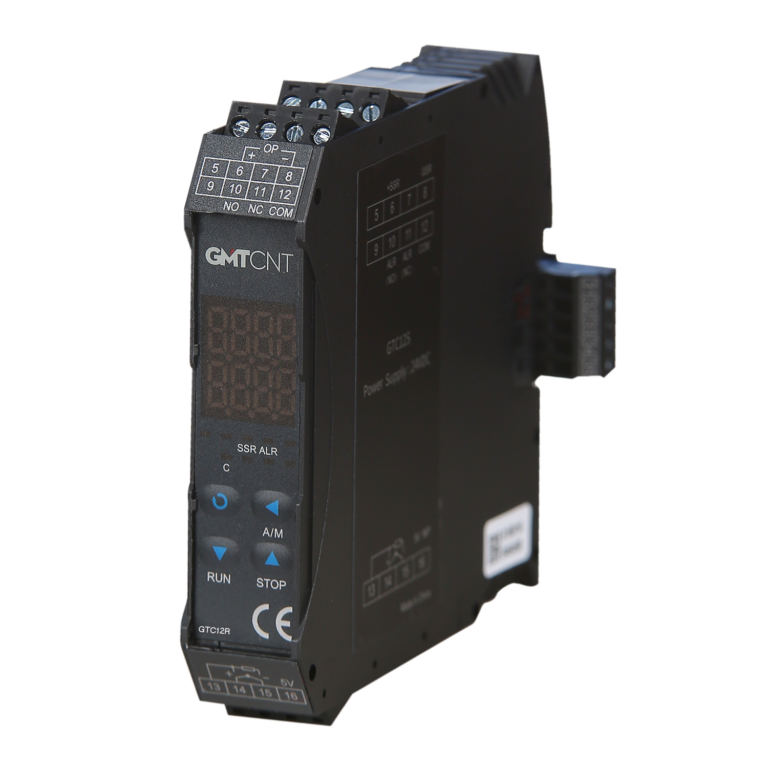

    GTC12R – Universal Input, Relay Output, PID Controller

    Digital calibration technology for input measurement.

    Supports various thermocouples, RTC, DC voltage, DC current.

    Auto tuning (AT) control.

    Provides flexibility and ease of installation.

    User-friendly interface.

    Can be easily adapted to your panels with 24VDC power supply.

    Developed with anti-interference capability for operation in harsh industrial environments.

    Power Supply 24VDC (-15%, +10%)
    Power Consumption ≤5W
    Supported Sensor Types Analog: 4-20mA/0-20mA Thermocouple: J, K, S, R, E, T, B, N, WRe3-WRe25, WRe5-WRe26, Cu50, Pt100
    DC Voltage 0 ~ 5V, 1 ~ 5V, 0 ~ 1V, 0 ~ 100mV, 0 ~ 20mV, 0 ~ 500mV, etc.
    DC Current 4~20mA (with external 250Ω shunt resistor mounted in the device’s sensor input channel)
    Reading Range J(0~1000°C), K(-50~1300°C), S and R (-50~1700°C), T(-200~+350°C), E(0~800°C), B(200~1800°C), N(0~1300°C), Cu50(-50~+150°C), Pt100(-200~+600°C)
    Measurement Accuracy 0.25%FS ±1 measured unit
    Control Mode On-Off control mode (adjustable deadband). Fuzzy logic PID control, AI-PID (advanced AI algorithm) with auto-tuning.
    Output Features 4-20mA, 0-20mA
    Alarm Function Upper limit, lower limit, deviation upper limit, and deviation lower limit
    Electromagnetic Compatibility (EMC) IEC61000-4-4: ±4KV/5KHz; IEC61000-4-5: 4KV.
    Isolation Withstand Voltage ≥600V between terminals.
    Operating Conditions Temperature -10~60°C, Humidity ≤90%RH
    Communication RTU: RS485 9600,8,None,1
    Mounting Information DIN Rail Mounting
