    GTC41S-TC

    4 Channel Thermocouple Input, 4 Channel SSR Output, PID Control

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

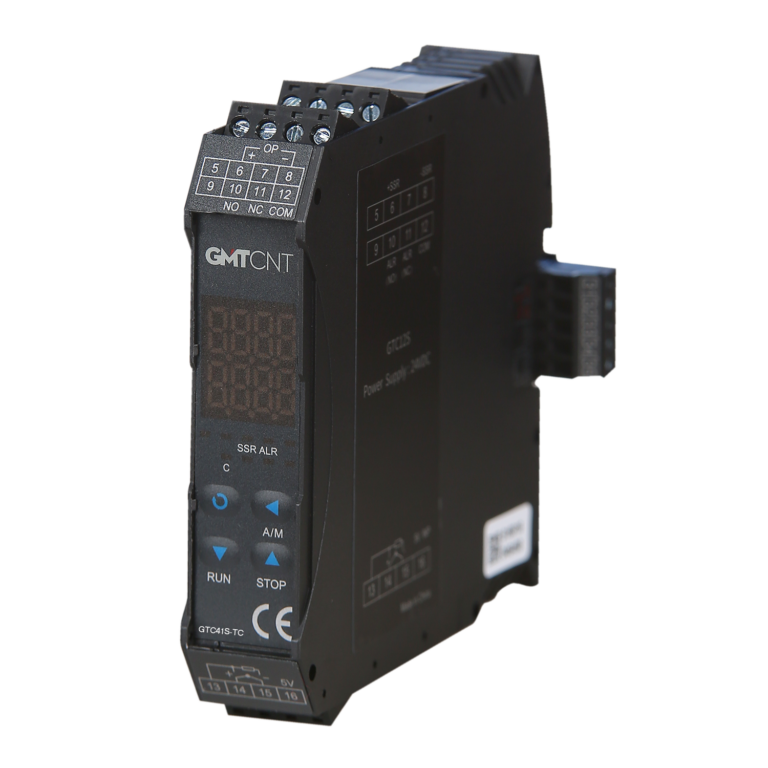

    GTC41S-TC – 4 Channel Thermocouple Input, 4 Channel SSR Output, PID Control Device

    Digital calibration technology for input measurement

    4 channel thermocouple input

    Auto tuning (AT) control

    DIN rail mount

    User-friendly operating interface

    Can be easily adapted to your panels with 24VDC power supply

    Enhanced anti-interference capability for operation in harsh industrial environments

    Power Supply 24VDC (-15%, +10%)
    Power Consumption ≤5W
    Supported Sensor Types Thermocouple: J, K, S, R, E, T, B, N, WRe3-WRe25, WRe5-WRe26
    Reading Range J(0~1000°C), K(-50~1300°C), S and R (-50~1700°C), T(-200~+350°C), E(0~800°C), B(200~1800°C), N(0~1300°C)
    Measurement Accuracy 0.25%FS ±1 measured unit
    Control Mode On-Off control mode (adjustable deadband). Fuzzy logic PID control, AI-PID (advanced AI algorithm) for automatic tuning.
    Output Features Control Outputs: 4 SSR (12VDC), Alarm Outputs: 2 Relay (220VAC) outputs
    Alarm Function Upper limit, lower limit, deviation upper limit, and deviation lower limit
    Electromagnetic Compatibility (EMC) According to IEC61000-4-4 ±4KV/5KHz; according to IEC61000-4-5 4KV.
    Isolation Endurance Voltage Between terminals ≥600V.
    Operating Conditions Temperature -10~60°C, Humidity ≤90%RH
    Communication Modbus RTU: RS485 9600,8,None,1
    Mounting Information DIN Rail Mount
