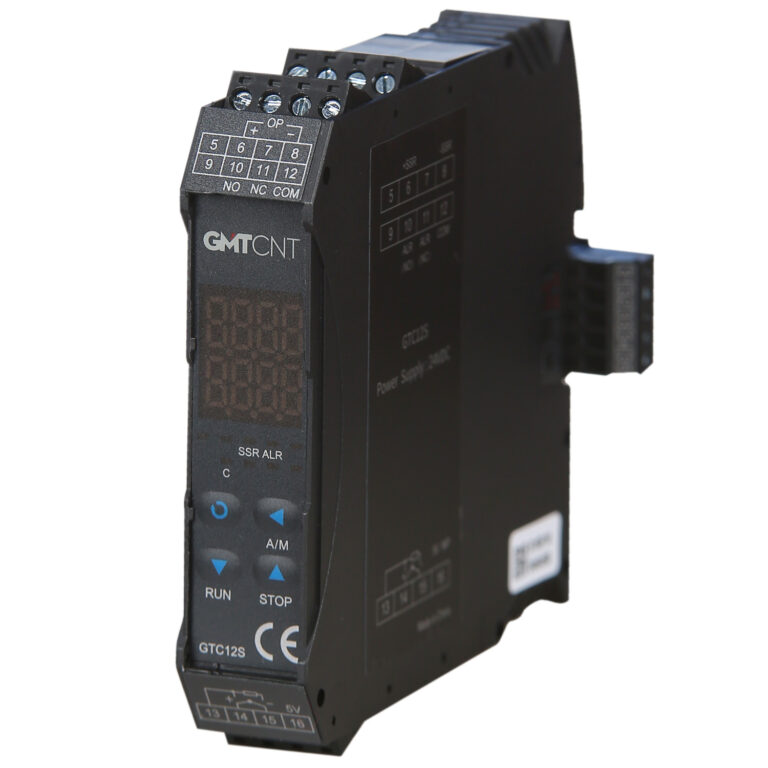

    GTC12S

    Universal Input, SSR Output, PID Control

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Sonraki Ürün

    GTC12S

    Power Supply: 24VDC (-15%, +10%)

    Power Consumption: ≤5W

    Supported Sensor Types: Thermocouple: J, K, S, R, E, T, B, N, WRe3-WRe25, WRe5-WRe26, Cu50, Pt100

    DC Voltage: 0 ~ 5V, 1 ~ 5V, 0 ~ 1V, 0 ~ 100mV, 0 ~ 20mV, 0 ~ 500mV, etc.

    DC Current: 4~20mA (with external 250Ω shunt resistor)

    Reading Range: J(0~1000°C), K(-50~1300°C), S and R (-50~1700°C), T(-200~+350°C), E(0~800°C), B(200~1800°C), N(0~1300°C), Cu50(-50~+150°C), Pt100(-200~+600°C)

    Measurement Accuracy: 0.25%FS ±1 measuring unit

    Control Period: 0.24~300.0 seconds, selectable, and this value must be in integer multiples of 0.5 seconds.

    Control Mode: On-Off control mode (measuring band adjustable). Fuzzy Logic PID control, AI-PID (advanced artificial intelligence algorithm) with automatic adjustment.

    Output Characteristics: SSR (12VDC/30mA output)

    Sampling Period: 8 samples per second. By adjusting the digital filter parameter FILt=0, the response time can be set to 0.5 seconds.

    Alarm Function: Upper limit, lower limit, deviation upper limit, and deviation lower limit

    Electromagnetic Compatibility (EMC): According to IEC61000-4-4 ±4KV/5KHz; according to IEC61000-4-5 4KV.

    Isolation Breakdown Voltage: Between terminals ≥600V.

    Operating Conditions: Temperature -10~60°C, Humidity ≤90%RH

    Communication: Modbus RTU (RS485) 9600,8,None,1

    Mounting Information: DIN rail mounting

    Power Supply

    24VDC (-15%, +10%)

    Power Consumption

    ≤5W

    Supported Sensor Types

    Thermocouple: J, K, S, R, E, T, B, N, WRe3-WRe25, WRe5-WRe26, Cu50, Pt100

    DC Voltage

    0 ~ 5V, 1 ~ 5V, 0 ~ 1V, 0 ~ 100mV, 0 ~ 20mV, 0 ~ 500mV, etc.

    DC Current

    4~20mA (with external 250Ω shunt resistor)

    Reading Range

    J(0~1000°C), K(-50~1300°C), S and R (-50~1700°C), T(-200~+350°C), E(0~800°C), B(200~1800°C), N(0~1300°C), Cu50(-50~+150°C), Pt100(-200~+600°C)

    Measurement Accuracy

    0.25%FS ±1 measuring unit

    Control Period

    0.24~300.0 seconds selectable, and this value must be in integer multiples of 0.5 seconds.

    Control Mode

    On-Off control mode (measuring band adjustable). Fuzzy Logic PID control, AI-PID (advanced artificial intelligence algorithm) with automatic adjustment.

    Output Characteristics

    SSR (12VDC/30mA output)

    Sampling Period

    8 samples per second. By adjusting the digital filter parameter FILt=0, the response time can be set to 0.5 seconds.

    Alarm Function

    Upper limit, lower limit, deviation upper limit, and deviation lower limit

    Electromagnetic Compatibility (EMC)

    According to IEC61000-4-4 ±4KV/5KHz; according to IEC61000-4-5 4KV.

    Isolation Breakdown Voltage

    Between terminals ≥600V.

    Operating Conditions

    Temperature -10~60°C, Humidity ≤90%RH

    Communication

    Modbus RTU (RS485) 9600,8,None,1

    Mounting Information

    DIN rail mounting
