    GTC12S-D

    Universal Input, SSR+Relay Output (Heating/Cooling, Dual PID Control)

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

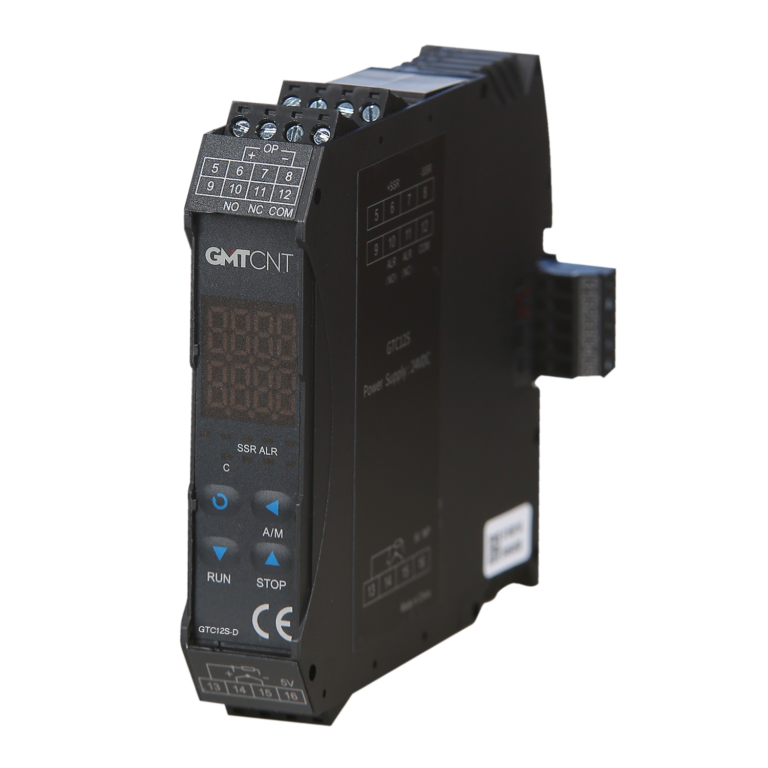

    GTC12S-D – Universal Input, SSR+Relay Output (Heating/Cooling, Dual PID Control Device)

    Digital calibration technology for input measurement

    Supports various thermocouples, RTC, DC voltage, DC current

    Auto tuning (AT) control

    DIN rail mounting

    User-friendly interface

    Can be easily adapted to panels with 24VDC power supply

    Enhanced anti-interference capability for operation in harsh industrial environments

    Power Supply 24VDC (-15%, +10%)
    Power Consumption ≤5W
    Supported Sensor Types Thermocouples: J, K, S, R, E, T, B, N, WRe3-WRe25, WRe5-WRe26, Cu50, Pt100
    DC Voltage 0 ~ 5V, 1 ~ 5V, 0 ~ 1V, 0 ~ 100mV, 0 ~ 20mV, 0 ~ 500mV
    DC Current 4~20mA (with external 250Ω shunt resistor)
    Reading Range J(0~1000°C), K(-50~1300°C), S and R (-50~1700°C), T(-200~+350°C), E(0~800°C), B(200~1800°C), N(0~1300°C), Cu50(-50~+150°C), Pt100(-200~+600°C)
    Measurement Accuracy 0.25%FS ±1 measured unit
    Control Mode On-Off control mode (adjustable hysteresis), Fuzzy Logic PID control, AI-PID (automatic adjustment with advanced artificial intelligence algorithm)
    Output Features Relay Output 230VAC 3A
    Alarm Function Upper limit, lower limit, deviation upper limit, and deviation lower limit
    Electromagnetic Compatibility (EMC) According to IEC61000-4-4 ±4KV/5KHz; IEC61000-4-5 4KV
    Isolation Withstand Voltage ≥600V between terminals
    Operating Conditions Temperature -10~60°C, Humidity ≤90%RH
    Communication Modbus RTU: RS485 9600,8,None,1
    Mounting Information DIN Rail Mounting
