    PV3000D Profile Projector

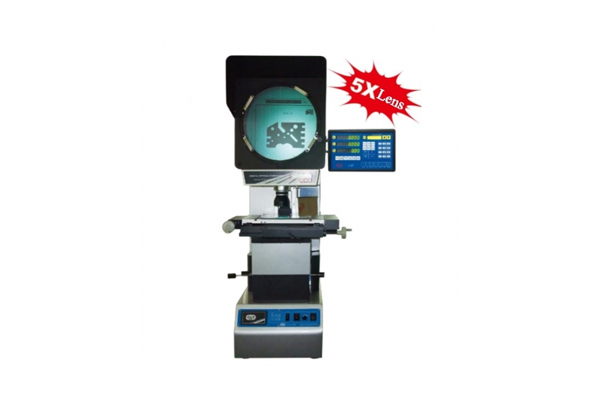

    The PV3000D Step Motor Profile Projectors feature a stepper motor on the Z axis. It offers a Z-axis movement of 100 mm. It is supplied with a standard 5X lens. The axis movements are available up to 100x200 mm. It has a resolution of 0.5 μm.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün

    PV3000D PROFILE PROJECTOR

    The PV-3000DE Series Profile Projectors feature a stepper motor on the Z axis.

    At the same time, the Z-axis grid number increases, and stair components can be measured, significantly enhancing performance.

    The PV-3000DE Series projectors are also available with different lenses.

    It is supplied with a standard 5X lens.

    Glass Table Size (mm) 210 x 160, 260 x 160
    X Axis Movement 150 mm, 200 mm
    Y Axis Movement 100
    Z Axis Movement (mm) 100
    Screen Diameter (mm) Ф 312
    Resolution 0.5 μm
    Angle Resolution 1’ or 0.01°
    Dimensions 670 × 570 × 1250
    Weight 150
