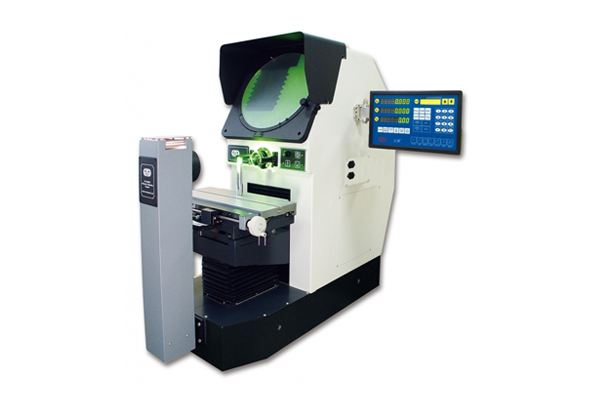

    PH3000 Profile Projector

    The PH3000 Profile Projectors are used for measuring your products horizontally. They offer axis movements up to 200x250 mm. The resolution is 0.001 mm (1μm). It is supplied with a standard 10X lens.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    PH3000 PROFILE PROJECTOR

    Carmar manufactures the entire measurement system, including linear scale, digital readout (optional), working stage, and software,

    which is why the consistency is far better than other brands.

    Horizontal Type Digital Optical Profile Projector

    Helix angle step adjustable: ± 15°

    Heavy-duty, metal construction

    Extended range and high accuracy

    Powerful DRO provides fast geometric calculations in a simple, easy-to-use format.

    Components such as linear scale, digital readout, optical lenses, etc., are all made by Carmar Technology.

    Table Size (mm) 400 x 150, 450 x 200
    X Axis Movement 200 mm, 250 mm
    Y Axis Movement 100, 75
    Z Axis Movement (mm) 100, 150 mm
    Screen Diameter (mm) 12", Ø300, 16", Ø400
    Precision ≦4.0 + L/25 L: measuring length (mm)
    Resolution 0.001 mm (1μm)
    Angle Resolution 1’ or 0.01°
    Dimensions 1090 x 830 x 1010, 1215 x 646 x 1210
    Weight 160, 240
