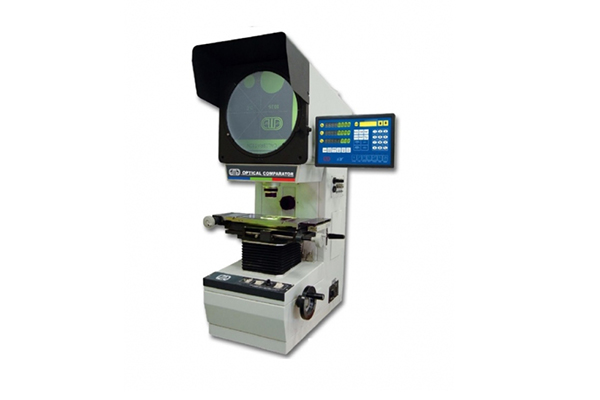

    PV3015AE PROFILE PROJECTOR

    PV series profile projectors are reliable and cost-effective measurement systems with high precision and efficiency.

    They provide an excellent solution for the most critical requirements of high-quality optical profile measurement. Suitable for measuring various shapes.

    Complex profiles such as press components, gears, cams, steps, tools, molds, turned parts, automats, etc.

    The most effective device for measuring most 2D parameters like linear dimensions and angles.

    Components such as linear scales, digital readouts, optical lenses, etc., are all made by Carmar Technology.

    Excellent optical measurement system to reflect the fully magnified image.

    Magnification accuracy: 0.08% contour, 0.12% surface.

    Equipped with DC-3000 data processing system and foot pedal for measurement.

    Vertical image measurement for different requirements.

    Let me know if you'd like further adjustments or any other translations!

    Table Size (mm) 340 x 152
    Glass Table Size (mm) 196 x 96
    X Axis Movement 150 mm
    Y Axis Movement 50 mm
    Z Axis Movement (mm) 90 mm
    Screen Diameter (mm) 12" (Ø312), usable range > Ø300
    Accuracy 4.0 + L/75 L: measuring length (mm)
    Resolution 0.0005 mm (0.5μm)
    Angle Resolution 1’ or 0.01°
    Dimensions 770 x 550 x 1100
    Weight 130 kg
