    PV3000CE Profile Projector

    PV3000CE Profile Projectors: These projectors offer high-quality optical measurement performance. They are equipped with a rotating lens turret that includes three different lenses. The projector has a resolution of 0.0005 mm (0.5 μm). The axis movements range from 150x100 mm to 250x150 mm.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

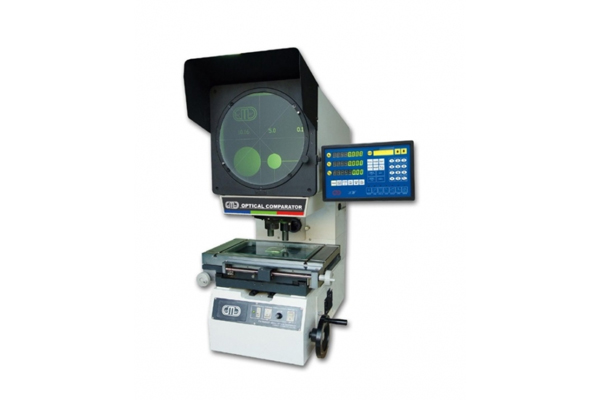

    PV3000CE PROFILE PROJECTOR

    Carmar manufactures the entire measurement system, including linear scale, digital readout (optional), working stage, and software,

    which is why the consistency is far better than other brands.

    Vertical Advanced Type Multi-Lens Digital Optical Comparator

    The PV3000CE offers high-quality optical measurement performance.

    It is equipped with a rotating lens turret with three different lenses. Instead of changing the lens one by one while working with different magnifications, users can simply rotate the turret.

    Components such as linear scale, digital readout, optical lenses, etc., are all made by Carmar Technology.

    The accuracy of the PV-3000 series optical comparator can reach international standards.

    The maximum movement distance can be up to 250 x 150 x 100.

    The high-precision table design can carry a load of 50 kg without affecting measurement performance.

    To ensure stability and high precision, the design includes a projection screen height for focusing.

    Table Size (mm) 354 x 228, 404 x 228, 450 x 280
    Glass Table Size (mm) 210 x 160, 260 x 160, 306 x 196
    X Axis Movement 150 mm, 200 mm, 250 mm
    Y Axis Movement 100, 150
    Z Axis Movement (mm) 100
    Screen Diameter (mm) 12” (Ø312), usable range > Ø300
    Precision ≦3.0 + L/75 ; L: measuring length (mm)
    Resolution 0.0005 mm (0.5 μm)
    Angle Resolution 1’ or 0.01°
    Dimensions 780 x 810 x 1120
    Weight 180, 170
