    PV3000AE Profile Projector

    Emos Group Quality Control Profile Projector Devices PV3000AE Profile Projector
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps

    PV3000AE Profile Projector

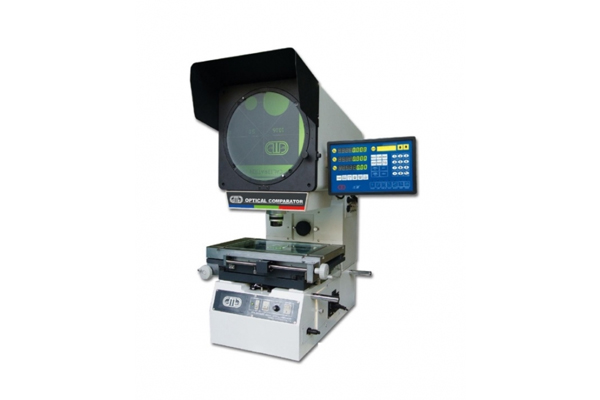

    PV3000AE Profile Projectors offer high-quality optical measurement performance. They feature a resolution of 0.0005 mm (0.5μm). Axis movements are available from 150x100 mm to 400x300 mm.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    PV3000AE PROFILE PROJECTOR

    PV series profile projectors are reliable and cost-effective measurement systems with high precision and efficiency.

    They provide an excellent solution for the most critical requirements of high-quality optical profile measurement. Suitable for measuring various shapes.

    Complex profiles such as press components, gears, cams, steps, tools, molds, turned parts, automats, etc.

    The most effective device for measuring most 2D parameters like linear dimensions and angles.

    Components such as linear scales, digital readouts, optical lenses, etc., are all made by Carmar Technology.

    Excellent optical measurement system to reflect the fully magnified image.

    Equipped with the DC-3000 data processing system and foot pedal for measurement.

    Vertical image measurement for different requirements.

    Table Size (mm) 354 x 228, 404 x 228, 450 x 280, 500 × 330, 450×350
    Glass Table Size (mm) 210 x 160, 260 x 160, 306 x 196, 350 × 250, 606 × 466
    X Axis Movement 150 mm, 200 mm, 250 mm, 295 mm, 400 mm
    Y Axis Movement 100, 150, 195, 300
    Z Axis Movement (mm) 100
    Screen Diameter (mm) 12” (Ø312), usable range > Ø300
    Accuracy ≦3.0 + L/75 ; L: measuring length (mm)
    Resolution 0.001 mm (1μm) or 0.0005 mm (0.5μm)
    Angle Resolution 1’ or 0.01°
    Weight 160, 180, 250, 260
