    PV6020V Profile Projector

    The PV6020V Profile Projectors are used for measuring the 2D dimensions of your products. With a screen size of Ф 615 mm, measurements can be taken up to Ф 600 mm. It offers axis movements of 200x100 mm.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

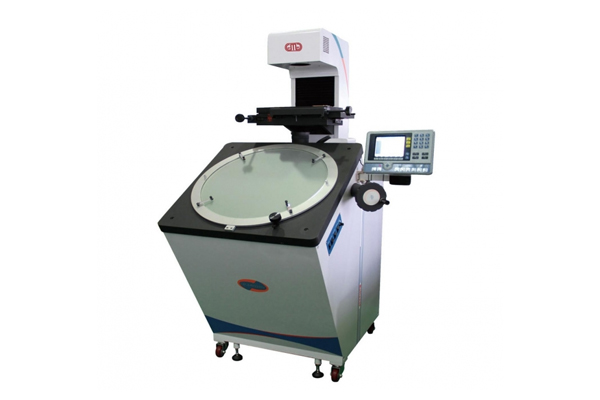

    PV6020V PROFILE PROJECTOR

    The PV6020V Profile Projectors are used for measuring the 2D dimensions of your products.

    With a screen size of Ф 615 mm, measurements can be taken up to Ф 600 mm.

    Helix angle step adjustable: ± 15°

    Heavy-duty, metal construction

    Extended range and high accuracy

    Powerful DRO provides fast geometric calculations in a simple, easy-to-use format.

    Components such as linear scale, digital readout, optical lenses, etc., are all made by Carmar Technology.

    Table Size (mm) 404 x 265
    Glass Table Size (mm) 270 x 170
    X Axis Movement 200 mm
    Y Axis Movement 50
    Z Axis Movement (mm) 100
    Screen Diameter (mm) Ф 615, applying range > Ф600 (engraved with crosshairs)
    Precision 2.5+L/75 (L: Measuring length: mm)
    Resolution 0.5 μm
    Angle Resolution 1’ or 0.01°
    Dimensions 1200 x 1140 x 1940
    Weight 360
