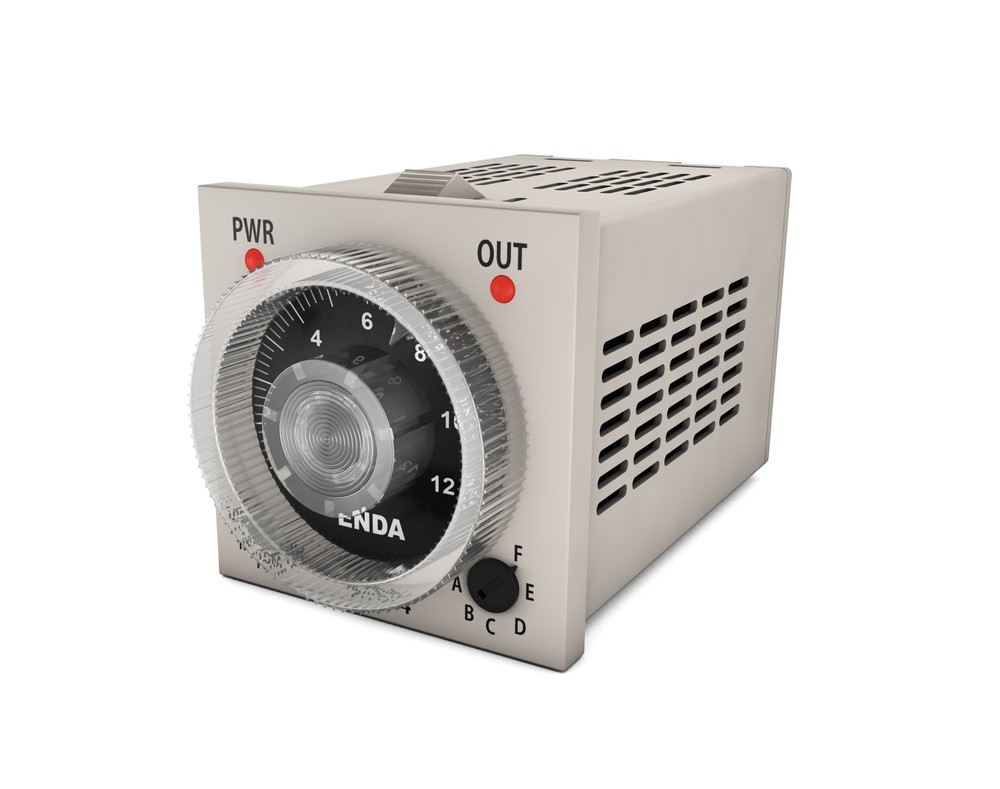

    ATSP4

    48x48 mm Sized, Analog Functional Time Relay

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    ATSP4

    Triggered by supply voltage

    Trigger output (OUT)

    Contact output for timing function (OUT)

    6 different timing modes for OUT (A, B, C, D, E, F)

    6 different time unit selections for OUT (S, 10S, M, 10M, H, 10H)

    8-pin socket or 5-terminal block connection

    CE marked according to EN standards

    Operating/Storage Temperature 0...50 °C / -25...70 °C
    Relative Humidity Up to 31 °C 80% humidity, then decreasing linearly to 50% at 40 °C
    Protection Class According to EN 60529: Front panel: IP50, Rear panel: IP20
    Altitude Maximum 2000m
    Supply Voltage 90-250V AC, 50/60Hz or 24V AC ±10%, 50/60Hz or 24V DC ±10%
    Power Consumption 10VA
    Connection 8-pin socket or 5-terminal block connection
    Scale 0-1.2, 0-3, 0-12, 0-30 or 0-60
    Reset Time 0.3 seconds for UV, 0.01 seconds for LV
    Accuracy Maximum error due to supply voltage is 0.2%
    Maximum error due to set value adjustment is 5%
    Maximum temperature-related error is 1%
    Control Output OUT Relay: 250V AC, 8A (for resistive load), NO+NC
    Relay Life 30,000,000 operations unloaded; 100,000 operations at 250V AC, 8A resistive load
    Control Output Status OUT LED lights up when the output is energized, flashes while the timer is active
    Timing Function Modes A, B, C, D, E, F can be selected on the device
    Timing Unit Seconds, 10 seconds, minutes, 10 minutes, hours, 10 hours can be selected on the device
    Mounting Type Can be mounted to the panel by clamping or to the rail with an 8-pin socket
    Dimensions W48 x H48 x D82 mm
    Weight Approximately 100g (including packaging)
    Housing Material Self-extinguishing plastics used
