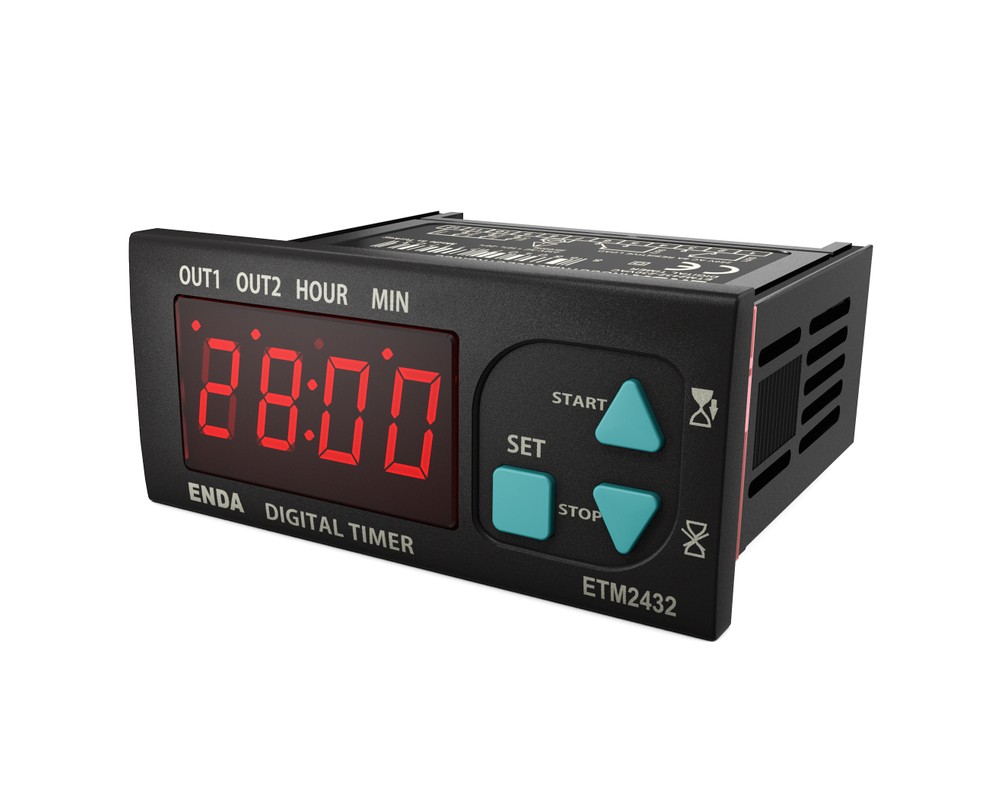

    ETM2432

    77x35 mm Sized, Start-Stop Control from Front Panel, Downward Counting Timer Relay

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    ETM2432

    Dual contact output for timing control

    External start, reset, and gate input

    Choice of hour-minute and minute-second display

    Scale: 0:01....99:59 minutes, 0:01....99:59 hours

    Adjustable time increase and decrease steps

    Downward counting

    Start and stop control from the front panel

    8 selectable warning tones

    Upper and lower limits can be set for the set value

    CE certified according to EN standards

    Ambient/Storage Temperature 0...50 ºC / -25...70 ºC
    Relative Humidity Operates at up to 80% humidity at 31 ºC, then linearly decreases to 50% at 40 ºC
    Protection Class According to EN 60529 standard: Front panel: IP65, Rear panel: IP20
    Altitude Maximum 2000m
    Supply Voltage 230V AC +10%-20% 50/60Hz or 10-30V DC/8-24V AC
    Power Consumption 7VA
    Connection Screw terminals
    Scale Selectable as 99:59 minutes or hours
    Sensitivity 1 second
    Time Accuracy ±1%
    Start Input Mechanical contact (Minimum 50ms)
    Gate Input Mechanical contact (Minimum 50ms)
    Reset Input Mechanical contact (Minimum 50ms)
    Control Output OUT1, OUT2 2 Relays: 250V AC, 8A (for resistive load), NO+NC
    Relay Life 30,000,000 switchings (no load); 100,000 switchings at 250V AC, 8A resistive load
    Mounting Type Inserted into the panel by compression
    Dimensions W77xH35xD61 mm
    Weight Approximately 198g (including packaging)
    Enclosure Materials Self-extinguishing plastics used
