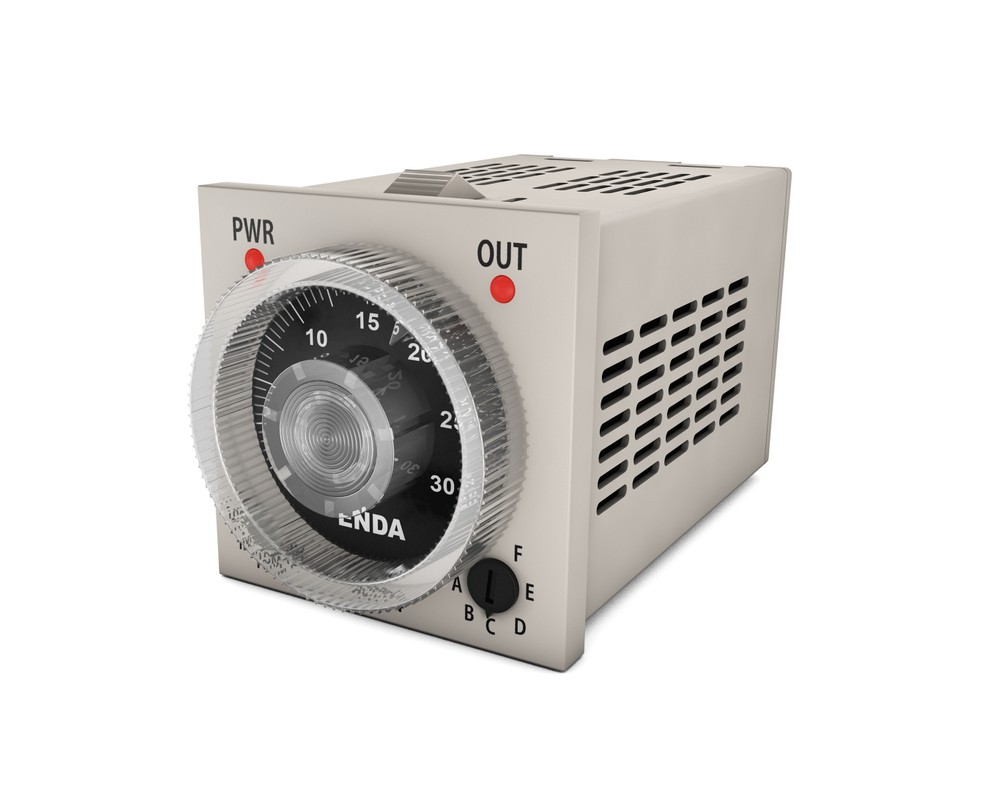

    ATP4

    48x48 mm Sized, External Start-Reset-Gate Input, 2 Relay Outputs, Pin Socket or Terminal Block, Functional Time Relay

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    ATP4

    Triggered by supply voltage

    Trigger output (OUT1)

    Contact output for timing function (OUT2)

    6 different timing modes for OUT2 (A, B, C, D, E, F)

    6 different timing unit selections for OUT2 (S, 10S, M, 10M, H, 10H)

    8/11 pin socket or 7/10 terminal block connection

    Start, reset, gate inputs for 10-terminal block or 11-pin socket

    CE marked according to EN standards

    Operating/Storage Temperature 0...50 °C / -25...70 °C
    Relative Humidity Up to 80% at 31°C, then decreasing linearly to 50% at 40°C
    Protection Class According to EN 60529 standard: Front panel: IP50, Rear panel: IP20
    Altitude Maximum 2000m
    Supply Voltage 90-250V AC, 50/60Hz or 24V AC ±10%, 50/60Hz, and 24V DC ±10%
    Power Consumption 10VA
    Connection 8/11 pin socket or 7/10 terminal block connection
    Scale 0-1.2, 0-3, 0-12, 0-30, or 0-60
    Reset Time 0.3 seconds for UV, 0.01 seconds for LV
    Accuracy Maximum error due to supply voltage: 0.2%, error in setting value adjustment: 5%, error due to temperature effects: 1%
    Start Input Contact input (pulse duration at least 3ms) for 10 terminal or 11 pin socket models
    Reset Input Contact input (pulse duration at least 3ms) for 10 terminal or 11 pin socket models
    Gate Input Contact input (pulse duration at least 3ms) for 10 terminal or 11 pin socket models
    Trigger Output OUT1 Relay: 250V AC, 8A (resistive load), NC
    Control Output OUT2 Relay: 250V AC, 8A (resistive load), NO+NC
    Relay Lifetime 30,000,000 switchings without load; 100,000 switchings at 250V AC, 8A resistive load
    Control Output Status OUT LED lights up when control output is energized, flashes while the timer is working
    Timing Function Modes A, B, C, D, E, F can be selected via the device
    Timing Unit Seconds, 10 seconds, minutes, 10 minutes, hours, 10 hours can be selected via the device
    Mounting Type Can be mounted on a panel or with 8/11 pin socket on a rail
    Size G48xY48xD82 mm
    Weight Approximately 100g (with packaging)
    Box Material Self-extinguishing plastics used
