    ATP02

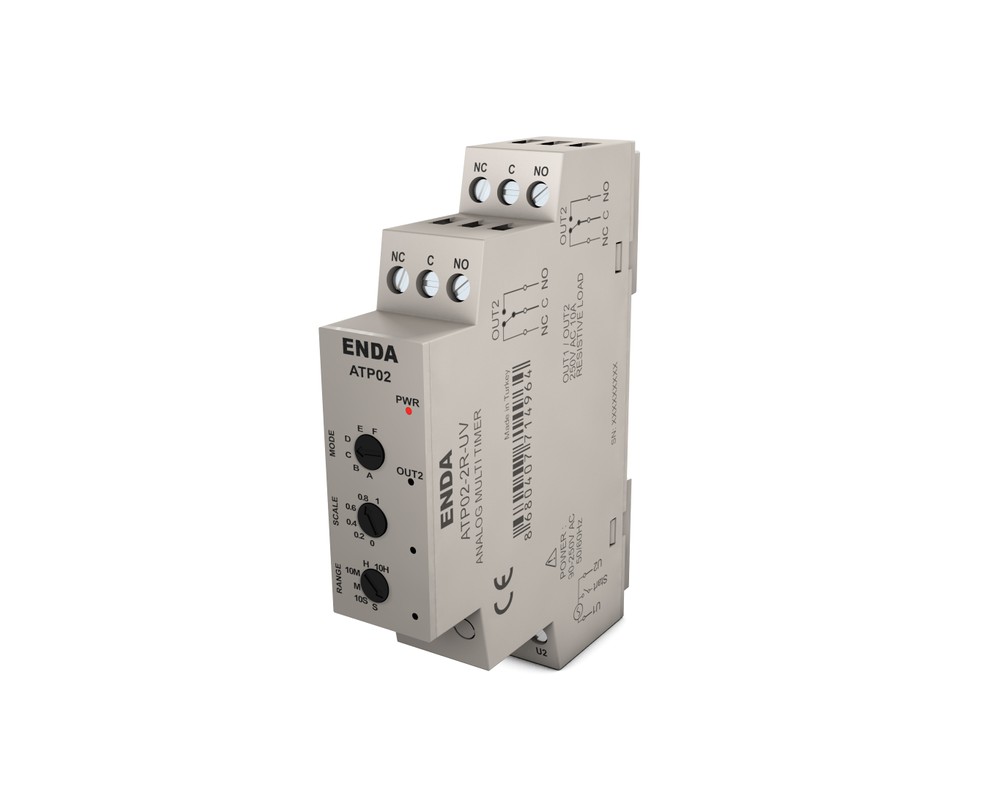

    18x90 mm size, Rail-mounted, Multi-function Analog Timer Relay.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    ATP02

    Triggering with supply voltage

    Trigger output (OUT1 optional)

    Contact output for timing function (OUT2)

    6 different timing modes (A, B, C, D, E, F)

    6 different timing units (S, 10S, M, 10M, H, 10H)

    Selectable control input with delay-on timer function

    Rail mountable

    Terminal connection

    CE marked according to EN standards

    Operating/Storage Temperature 0...50 °C / -25...70 °C
    Relative Humidity Works at up to 80% humidity at 31 °C, then decreases linearly to 50% at 40 °C
    Protection Class IP20, according to EN 60529 standard
    Altitude Maximum 2000m
    Supply Voltage 90-250V AC +10%, 50/60Hz or 24V AC ±10%, 50/60Hz, 24V DC ±10%
    Power Consumption 10VA
    Connection Screw terminal
    Scale 0-1 adjustable within the desired range
    Reset Time Maximum 0.04 seconds
    Accuracy Max error of 0.2% due to supply voltage
    Max error of 4.5% when setting value is adjusted
    Max error of 1% due to temperature effects
    Control Output OUT1/OUT2 2 Relays: 250V AC, 10A (for resistive load), NO+NC
    Relay Life 30,000,000 switching without load; 250V AC, 10A resistive load 50,000 switching
    Control Output Status OUT2 LED lights up when the control output (OUT2) is energized and flashes as long as the timer is running
    Timing Function Modes A, B, C, D, E, F can be selected via the device
    Timing Units Seconds, 10 seconds, minutes, 10 minutes, hours, 10 hours can be selected via the device
    Mounting Type Mountable on TH35 rail
    Dimensions G18xY90xD66 mm
    Weight Approximately 90g (with packaging)
    Enclosure Material Self-extinguishing plastics used
