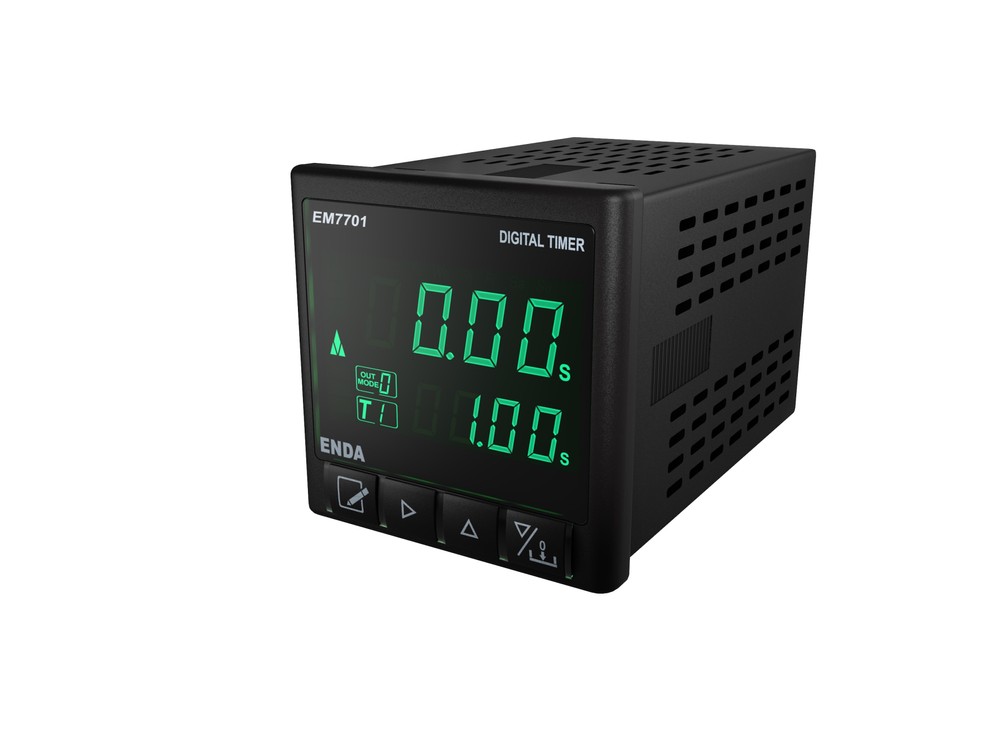

    EM7701

    72x72 mm Size, LCD Display, PNP / NPN Sensor Input, Memory Time Relay.

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    EM7701

    2x4 digit LCD display

    Easily adjustable parameters via buttons on the front panel

    9 levels of time intervals (from 0-99.99 seconds to 0-9999 hours)

    Selectable sensor input type (PNP, NPN)

    Selectable forward/backward counting direction

    Adjustable pulse and space time for input signals

    Can operate with or without memory

    12 different output modes

    Two NO contact outputs and two NPN 50mA current-limited SSR outputs

    Selectable display brightness

    Selectable parameter security

    Easy installation and maintenance with socket terminals

    RS-485 Modbus communication input

    CE certified according to EN standards

    Ambient/Storage Temperature 0...50 ºC / -25...70 ºC
    Relative Humidity Operates up to 80% humidity at 31 ºC, then linearly decreases to 50% at 40 ºC
    Protection Class According to EN 60529 standard: Front panel: IP65, Rear panel: IP20
    Altitude Maximum 2000m
    Supply Voltage 90-250V AC 50/60Hz or 10-30V DC / 8-24V AC
    Power Consumption 5VA
    Connection Socket terminals
    Accuracy ±% 0.01 ± 1ms
    Start, Gate, and Reset Input These inputs can be set as PNP or NPN from the menu
    Minimum pulse and space times adjustable between 1ms and 100ms
    Active level for PNP inputs: 4V to 30V pulse
    Active level for NPN inputs: 0V to 2V pulse
    Control Output OUT1, OUT2 OUT1: 250V AC, 2A (for resistive load), NO, NC - OUT2: 250V AC, 2A (for resistive load), NO
    SSR1, SSR2 Output Open collector output (S.S. OUT): Maximum 30V DC, 50mA
    Sensor Supply Output 12V DC, maximum 50mA (unregulated)
    Relay Life 30,000,000 switchings (no load); 200,000 switchings at 250V AC, 2A resistive load
    Mounting Type Inserted into the panel by compression
    Dimensions W72xH72xD9
