    ATM9321

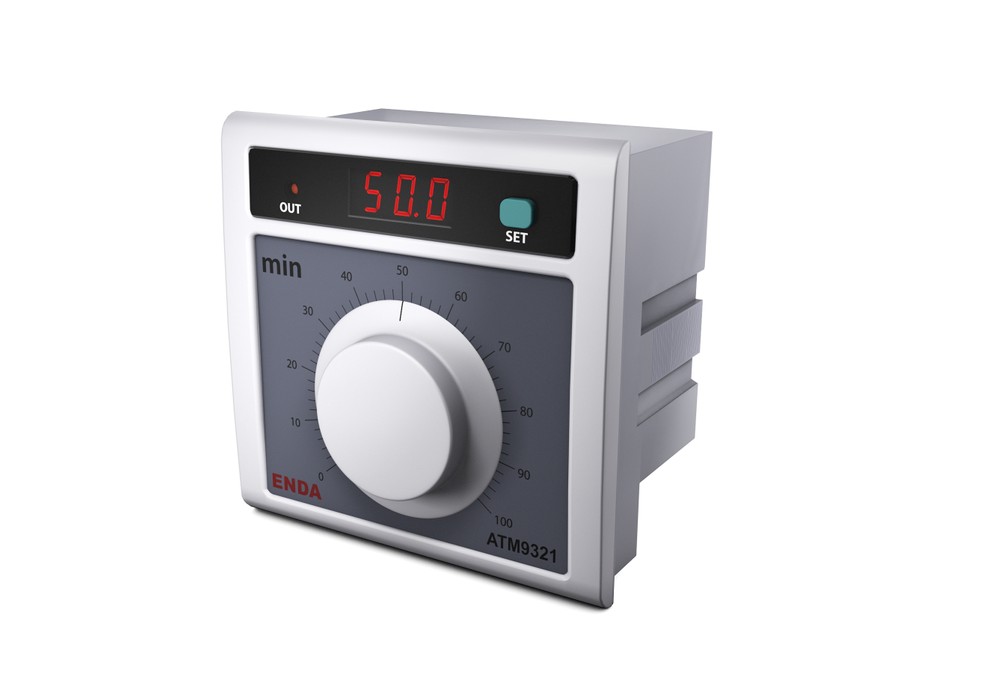

    96x96 mm Sized, Digital Display Analog Adjustable, Easy-to-Use Time Relay

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    ATM9321

    Digital display for timer value

    Selectable scale: 0...9.99 or 0...99.9 or 0...999 minutes

    Selectable Output Functions: Mode A (delayed on) and Mode B (delayed off)

    Triggering with Start input

    Reset with Reset input

    Easy to adjust

    CE marked according to EN standards.

    Ambient/Storage Temperature 0...50 °C / -25...70 °C
    Relative Humidity Up to 80% at 31 °C, decreasing linearly to 50% at 40 °C
    Protection Class EN 60529 standard: Front panel: IP60, Rear panel: IP20
    Altitude Up to 2000m
    Supply Voltage 230V AC +10%-20% 50/60Hz or 10-30V DC/8-24V AC
    Power Consumption 6VA
    Connection Screw terminal
    Scale 0...9.99 or 0...99.9 or 0...999 minutes (selectable)
    Sensitivity ±1 digit
    Accuracy For analog scale: ±4%, for time display: ±0.5% (of full scale)
    Start Contact input (minimum duration 5ms)
    Reset Contact input
    Control Output Relay: 250V AC, 2A (for resistive load), NO+NC or 12V DC 20mA logic output
    Relay Life No load: 30,000,000 operations; 250V AC, 2A resistive load: 300,000 operations
    Output Function “Mod A: Control output is energized with a delay for the set time”
    “Mod B: Control output remains energized for the set time”
    A/D Converter 10 bit
    Mounting Method Mounted by compression on the panel
    Dimensions W96xH96xD50 mm
    Weight Approximately 250g (including packaging)
    Enclosure Material Self-extinguishing plastics used
