    EUP4420

    Dual setpoint input, selectable sensor types, profile control (16 steps), programmable outputs for each step, resume after power failure, PID automation, digital inputs, soft-start, analog/relay output, heating/cooling control, probe fault mode, and RS-485 ModBus support. CE marked.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

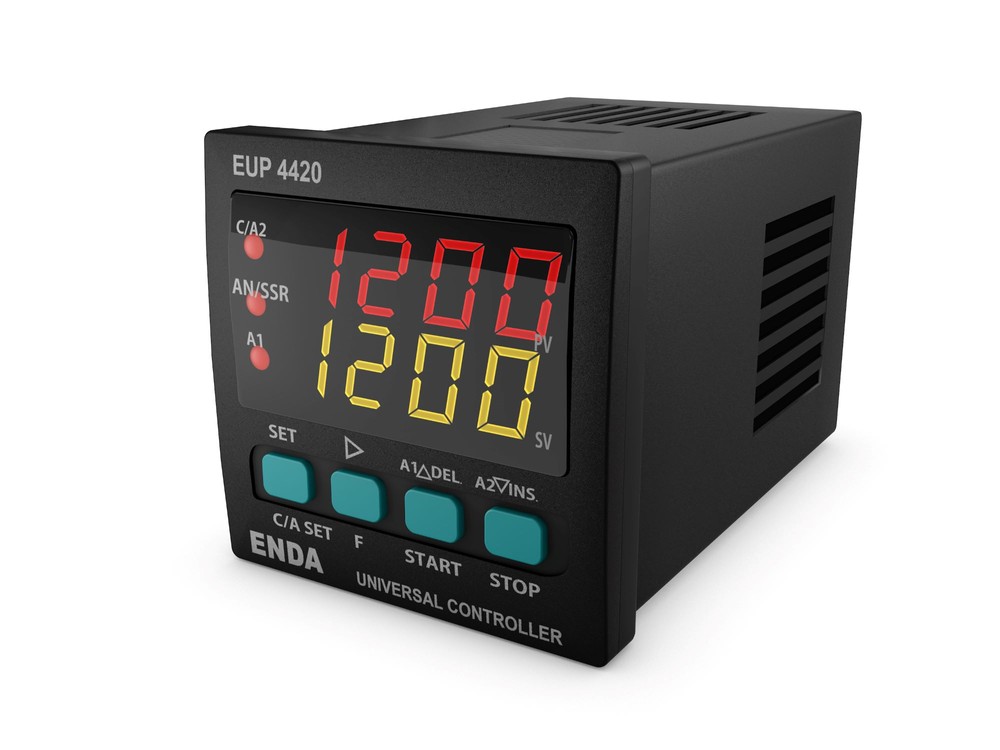

    EUP4420

    Selectable dual setpoint input

    Selectable sensor types: Pt-100, J, K, L, T, S, R

    Selectable input options: 0-20mA, 4-20mA, 0-10V, 2-10V, 0-25mV, and 0-50mV

    Profile control up to 16 steps

    Programmable AL1 and AL2 outputs for each step

    Ability to resume from where it left off in case of power failure

    Automatic calculation of PID parameters (SELF TUNE)

    Three programmable digital inputs

    Three programmable function keys (F)

    Soft-Start feature

    Selectable Analog, SSR, or relay control outputs

    Selectable 0-20mA and 4-20mA analog control outputs

    C/A2 relay output that can be used as a second alarm or control output

    A1 relay output that can be used as the first alarm output or PID cooling control output

    Selectable Heating/Cooling control

    Offset feature for input

    Ability to select relay positions in case of probe failure or periodic and automatic periodic operation

    Communication via RS-485 ModBus protocol

    CE marked according to EN standards

    Operating/Storage Temperature 0...50 °C / -25...70 °C
    Relative Humidity Up to 80% at 31 °C, then linearly decreasing to 50% at 40 °C
    Protection Class IP65 for front panel, IP20 for rear panel according to EN 60529
    Height Maximum 2000m
    Supply Voltage 90-250V AC 50/60Hz or 10-30V DC / 8-24V AC
    Power Consumption 5VA
    Connection Screw terminal
    Scale Pt-100 resistance thermometer -199.9...600.0 °C / -200...600 °C
    J (Fe-CuNi) thermocouple -30.0....600.0 °C / -30....600 °C
    K (NiCr-Ni) thermocouple -30.0...999.9 °C / -30...1300 °C
    L (Fe-CuNi) thermocouple -30.0....600.0 °C / -30....600 °C
    T (Cu-CuNi) thermocouple -30.0...400.0 °C / -30....400 °C
    S (Pt10Rh-Pt) thermocouple -40...1700 °C
    R (Pt13Rh-Pt) thermocouple -40...1700 °C
    0-20mA, 4-20mA, 0-10V, 2-10V, 0-25mV, 0-50mV inputs -1999...9999 (max scale range 10000)
    Accuracy For Pt-100 (resistance thermometer), 0-20m, 4-20mA, 0-10V, 2-10V, 0-25mV, 0-50mV input: ±0.2% (of full scale) ±1 digit
    For Thermocouples: ±0.5% (of full scale) ±1 digit
    Lead Resistance Maximum 100ohm for thermocouples, maximum 20ohm for 3-wire Pt-100
    C/A2 Output Relay: 250V AC, 2A (for resistive load), NO+NC (can be selected as Control or Alarm2 output)
    A1 Output Relay: 250V AC, 2A (for resistive load), NO (can be selected as Alarm1 and Cooling control output)
    ANL/SSR Output 0-20mA, 4-20mA, 24V 20mA maximum SSR output. Max load resistance 600 ohm (12-bit accuracy ±0.2%)
    Relay Life 30,000,000 switching cycles; 250V AC, 2A resistive load 300,000 switching cycles
    Control Type Single setpoint and alarm control
    Control Method On-Off, P, PI, PD, PID
    A/D Converter 14 bit
    Sampling Time 100ms
    Proportional Band Adjustable from 0.0% to 100.0%. If Pb=0.0%, On-Off control is selected.
    Control Period Adjustable from 1 to 125 seconds
    Hysteresis Adjustable from 1 to 50 °C/F
    Output Power Adjustable from 0% to 100% of set value
    Mounting Type Mounted on a rail
    Dimensions G48xY48xD87 mm
    Weight Approximately 250g (with packaging)
    Enclosure Material Self-extinguishing plastics used
