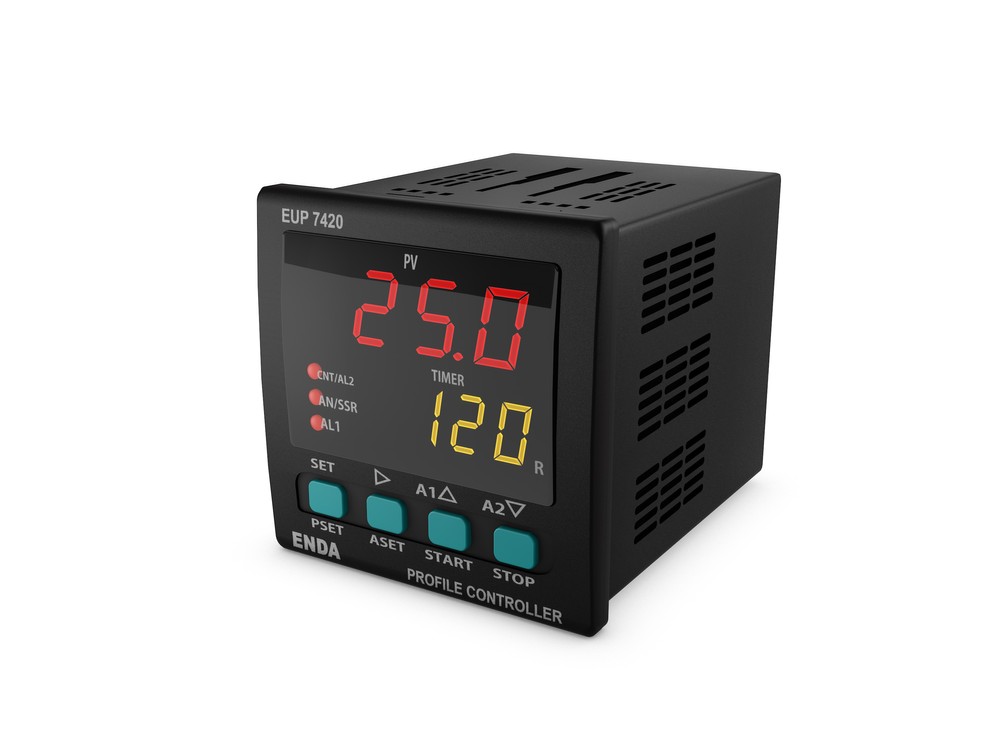

    EUP7420

    Emos Group Industrial Electronics Industrial Automation and Control Process Measurement and Control Devices EUP7420
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps

    EUP7420

    Dual setpoint input, selectable sensor types, 16-step profile control, programmable outputs for each step, resume after power failure, PID automation, digital inputs, soft-start, analog/relay output, heating/cooling control, probe fault mode, and RS-485 ModBus support. CE certified.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    EUP7420

    Selectable dual set value input

    Selectable Pt-100, J, K, L, T, S, R sensor types

    Selectable 0-20mA, 4-20mA, 0-10V, 2-10V, 0-25mV, and 0-50mV inputs

    Ability to perform profile control up to 16 steps

    Programmable AL1 and AL2 outputs for each step

    Ability to resume from where it left off in case of power failure

    Automatic calculation of PID parameters (SELF TUNE)

    Three different features assignable to digital input

    Three different features assignable to F function key

    Soft-Start feature

    Selectable analog, SSR, or relay control output

    Selectable 0-20mA and 4-20mA analog control outputs

    Relay output C/A2 that can be used as second alarm or temperature control output

    Relay output A1 that can be used as first alarm output or PID cooling output

    Selectable heating/cooling control

    Offset feature for input

    Ability to select relay positions or periodic and automatic periodic operation in case of probe failure

    Communication via RS-485 ModBus protocol

    CE marked according to EN standards

    Ambient/Storage Temperature 0...50 °C / -25...70 °C (Without icing)
    Power Supply Voltage 90-250V AC 50/60Hz or 10-30V DC / 8-24V AC
    Power Consumption 5VA
    Weight Approximately 400g (with packaging)
