    EUC9526

    It features a 3.5-inch TFT screen and a 5-digit display. It offers TC, RTD, NTC inputs, offset, and 32-point linearization. PID control with relay, SSR, or analog outputs, automatic parameter adjustment, soft start, 24V sensor power supply, RS-485 Modbus communication, and is CE compliant

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

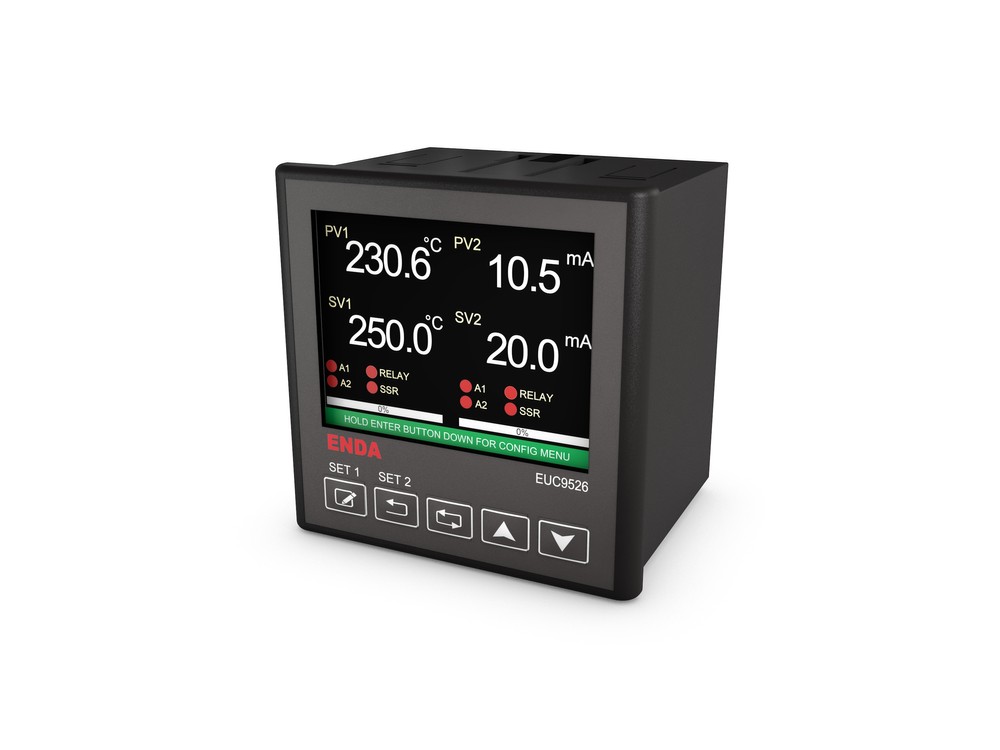

    EUC9526

    5-digit display with a 3.5-inch TFT graphic display

    2 selectable TC, RTD, NTC, R, mA, V, or mV inputs

    Offset feature for the input

    32-point linearization for analog inputs

    Selectable relay, SSR, or analog outputs

    Selectable transfer output (mA or V) proportional to the input

    50ms sampling time

    PID control capability

    Automatic calculation of PID parameters (SELF TUNE)

    Automatic adjustment of PID parameters (AUTO TUNE)

    Soft-Start feature

    24V DC sensor power supply

    Relay position selection or periodic operation in case of probe failure

    Security levels for the keypad

    Programming via keypad and ModBus

    Communication via RS-485 ModBus protocol

    CE marked according to EN standards

    Ambient/Storage Temperature 0...50 °C / -25...70 °C
    Relative Humidity Works at up to 80% humidity at 31°C, then linearly decreasing to 50% at 40°C
    Protection Class According to EN 60529 standard: Front panel: IP65, Rear panel: IP20
    Altitude Up to 2000m
    Power Supply Voltage 90-250V AC 50/60Hz
    Power Consumption 7VA
    Connection Socket terminal
    Scale Pt-100 resistance thermometer -200.0...850.0 °C / -100.0...160.0 °C
    Pt30Rh-Pt6Rh (B) thermocouple 200.0...1800.0 °C
    NiCr-Con (E) thermocouple -100.0...900.0 °C
    Fe-Con (J) thermocouple -100.0...900.0 °C
    NiCr-Ni (K) thermocouple -100.0...1300.0 °C
    Fe-Con (L) thermocouple -100.0...900.0 °C
    NiCrSi-NiSi (N) thermocouple -200.0...1300.0 °C
    Pt13Rh-Pt (R) thermocouple 0.0...1700.0 °C
    Pt10Rh-Pt (S) thermocouple 0.0...1700.0 °C
    Cu-Con (T) thermocouple -250.0...300.0 °C
    Cu-Con (U) thermocouple -200.0...400.0 °C
    NTC -60.0...150.0 °C
    0/4 - 20mA, 0 - 150mV, 0/1 - 5V, 0 - 10V, 0 - 550ohm, 0 - 10kohm:
    -32768...32767 (decimal point adjustable between 1st and 3rd digits)
    Accuracy ±0.1% or ±2 °C (for B-type thermocouples)
    ±0.1% or ±0.5 °C (for E, J, K, N, T, U thermocouples, Pt-100 resistance thermometer, NTC)
    ±0.1% or ±1.5 °C (for L-type thermocouple)
    ±0.1% or ±1 °C (for R, S-type thermocouples)
    ±0.1% or ±1 digit (for 0/4 - 20mA, 0/1 - 5V, 0 - 10V)
    ±0.1% or ±20µV (for 0 - 150mV)
    ±0.2% or ±0.1ohm (for 0 - 550ohm)
    ±0.5% or ±10ohm (for 0 - 10kohm)
    Input Resistance For thermocouples, Pt-100, NTC, mV, V, ohm: Ri > 100kohm
    For mA: Ri = 50ohm
    Control/Alarm 3 Outputs Relay: 250V AC, 2A (for resistive load), NO+NC
    Alarm 1 Output Relay: 250V AC, 2A (for resistive load), NO+NC
    Alarm 2 Output Relay: 250V AC, 2A (for resistive load), NO
    SSR Output 0 - 12V DC, maximum 40mA, with short-circuit protection
    mA Output 0-20mA or 4-20mA, load resistance maximum 750ohm
    V Output 0-10V DC, maximum 30mA, with short-circuit protection
    Relay Life No load 10,000,000 switching; 250V AC, 2A resistive load 200,000 switching
    Mounting Method Mounted by compression into the panel
    Dimensions W96xH96xD81 mm
    Weight Approximately 400g (with packaging)
    Enclosure Materials Self-extinguishing plastics used
