    EUP1222

    Emos Group Industrial Electronics Industrial Automation and Control Process Measurement and Control Devices EUP1222
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps

    EUP1222

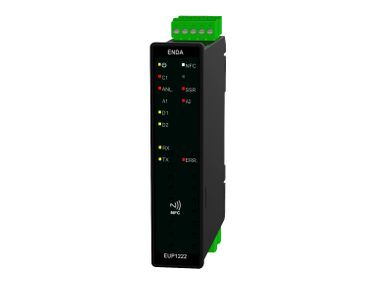

    It has a rail-mountable design and supports different sensor and input types. It offers PID automatic calculation, manual control, alarm, profile control, and soft-start features. It is easily programmable via ModBus and NFC and complies with CE standards.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Sonraki Ürün

    EUP1222

    Rail-mountable enclosure

    Selectable dual set point input

    Selectable sensor types: PT100, J, K, L, T, S, R

    Selectable input options: 0-20mA, 4-20mA, 0-10V, 2-10V, 0-25mV, and 0-50mV

    Programmable D1 and D2 digital contact inputs

    Automatic calculation of PID parameters (SELF TUNE)

    Ability to disable control outputs (for measurement purposes)

    Manual control of C/A2 or ANL/SSR outputs

    Soft-Start feature

    Communication via RS485 ModBus protocol

    Selectable analog, SSR, or relay control outputs

    Selectable analog control output: 0-20mA and 4-20mA

    C/A2 relay output that can be programmed as second alarm or control output

    A1 relay output that can be programmed as first alarm or PID cooling control output

    Selectable Heating/Cooling control

    Offset feature for input

    Ability to select relay positions in case of probe failure or periodic operation

    Programming via ModBus

    Profile control up to 16 steps

    Optional contact output for profile steps

    Ability to use timer and thermostat features in profile control mode

    Heating failure monitoring control available

    Access to all parameters via NFC

    CE marked according to EN standards

    Supply Voltage 24V DC ±20%
    Power Consumption Maximum 5VA
    A/D Converter 14 bit
    Sampling Time 100ms
    Relative Humidity Up to 80% at 31°C, then linearly decreasing to 50% at 40°C
    Protection Class IP20 according to EN 60529
    Altitude Maximum 2000m
    Connection 1.5mm² terminal block
    Scale PT100 resistance thermometer -199.9...600.0°C / -200...600°C
    J (Fe-CuNi) thermocouple -30.0...600.0°C / -30...600°C
    K (NiCr-Ni) thermocouple -30.0...999.9°C / -30...1300°C
    L (Fe-CuNi) thermocouple -30.0...600.0°C / -30...600°C
    T (Cu-CuNi) thermocouple -30.0...400.0°C / -30...400°C
    S (Pt10Rh-Pt) thermocouple -40...1700°C
    R (Pt13Rh-Pt) thermocouple -40...1700°C
    0-20mA, 4-20mA, 0-10V, 2-10V, 0-25mV, 0-50mV input -10000...10000 (max scale range 10000)
    Accuracy PT100 resistance thermometer, 0-20m, 4-20mA, 0-10V, 2-10V, 0-25mV, 0-50mV input: ±0.2% (full scale) ±1 digit
    Thermocouples: ±0.5% (full scale) ±1 digit
    Wire Resistance Maximum 100ohm for thermocouples, Maximum 20ohm for 3-wire PT100
    C/A2 Output Relay: 250V AC, 5A (for resistive load), NO control or Alarm2 output selectable
    A1 Output Relay: 250V AC, 5A (for resistive load), NO control (A1 output)
    ANL/SSR Output 0-20mA, 4-20mA analog and SSR selectable mA output, SSR mode max load resistance 500ohm
    Relay Life No load 30,000,000 switchings; 250V AC, 5A resistive load 300,000 switchings
    Control Mode Single set-point and alarm control
    Control Method On-Off, P, PI, PD, PID
    A/D Converter 14 bit
    Sampling Time 100ms
    Proportional Band Adjustable between 0.0% and 100.0%. If Pb=0.0, On-Off control is selected
    Control Period Adjustable between 1 and 125 seconds
    Hysteresis Adjustable between 1 and 50°C/F
    Output Power Adjustable between 0% and 100% of set value
    Mounting Type Rail-mountable enclosure
    Dimensions W22.5xH96xD86 mm
    Weight Approximately 158g (with packaging)
    Housing Material Self-extinguishing plastics used
