    EU4430

    The device features a 2x4 LCD display, selectable sensors, PID automation, digital inputs, and soft-start functionality. It includes analog/relay outputs, heating/cooling control, probe fault modes, RS-485 ModBus support, and is CE certified.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

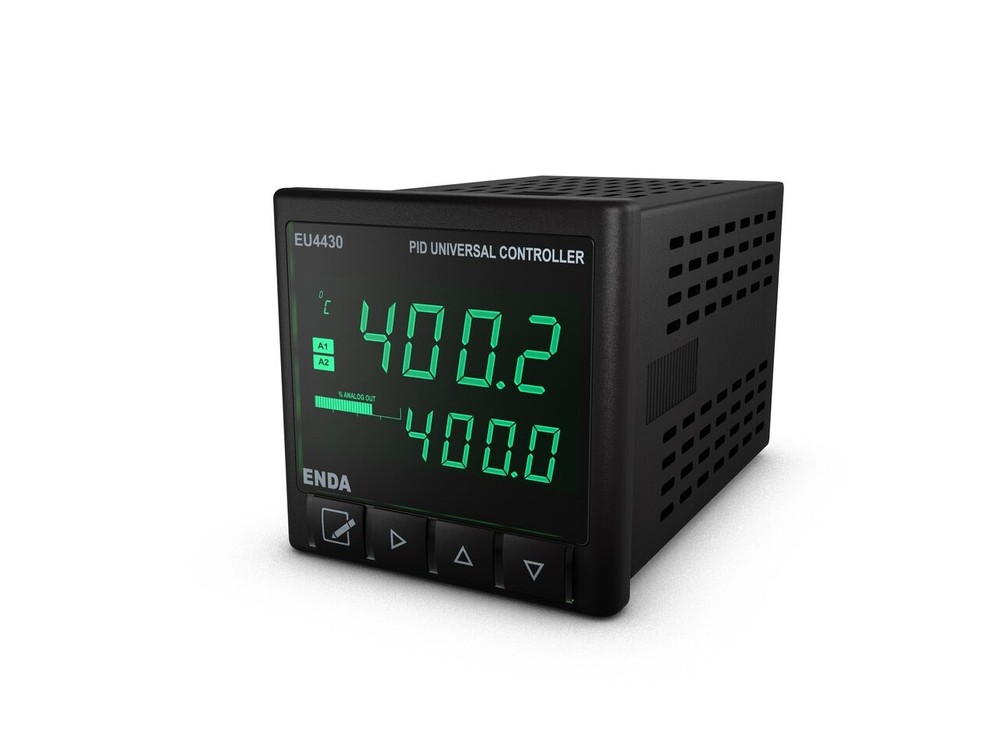

    EU4430

    2x4 digit LCD display

    Selectable dual set value input

    Selectable sensor types: Pt-100, J, K, L, T, S, R

    Selectable input types: 0-20mA, 4-20mA, 0-10V, 2-10V, 0-25mV, and 0-50mV

    Automatic calculation of PID parameters (SELF TUNE)

    Three programmable digital inputs with assignable functions

    Three programmable function keys (F)

    Soft-Start feature

    Selectable analog, SSR, or relay control output

    Selectable 0-20mA and 4-20mA analog control output

    C/A2 relay output, which can be used as a second alarm or temperature control output

    A1 relay output, which can be used as the first alarm output or PID cooling output

    Selectable heating/cooling control

    Offset functionality for input

    Relay positions can be selected in case of probe failure or enable periodic and automatic periodic operation

    Communication via RS-485 ModBus protocol

    CE marked according to EN standards

    Ambient/Storage Temperature 0...50 °C / -25...70 °C
    Relative Humidity Up to 80% at 31°C, linearly decreasing to 50% at 40°C
    Protection Class According to EN 60529 standard: Front panel: IP65, Rear panel: IP20
    Altitude Up to 2000m
    Supply Voltage 90-250V AC 50/60Hz or 10-30V DC / 8-24V AC
    Power Consumption 5VA
    Connection Screw terminal
    Scale Pt-100 resistance thermometer -199.9...600.0 °C / -200...600 °C
    J (Fe-Const) thermocouple -30.0....600.0 °C / -30....600°C
    K (NiCr-Ni) thermocouple -30.0...999.9 °C / -30...1300°C
    L (Fe-CuNi) thermocouple -30.0....600.0 °C / -30....600°C
    T (Cu-CuNi) thermocouple -30.0...400.0 °C / -30....400°C
    S (Pt10Rh-Pt) thermocouple -40...1700 °C
    R (Pt13Rh-Pt) thermocouple -40...1700 °C
    0-20mA, 4-20mA, 0-10V, 2-10V, 0-25mV, 0-50mV input -1999...9999 (max scale range 10000)
    Accuracy Pt-100 (resistance thermometer), 0-20mA, 4-20mA, 0-10V, 2-10V, 0-25mV, 0-50mV input: ±%0.2 (of full scale) ±1 digit
    Thermocouple: ±%0.5 (of full scale) ±1 digit
    Line Resistance Up to 100ohm for thermocouples, up to 20ohm for 3-wire PT100
    C/A2 Output Relay: 250V AC, 2A (for resistive load), NO+NC Control or Alarm2 output selectable
    A1 Output Relay: 250V AC, 2A (for resistive load), NO (Alarm1 and Cooling control output selectable)
    ANL/SSR Output 0-20mA, 4-20mA, 24V 20mA maximum SSR output. Max load resistance 600 ohms (12 bit %0.2 accuracy)
    Relay Life No load 30,000,000 switching; 250V AC, 2A resistive load 300,000 switching
    Control Type Single set-point and alarm control
    Control Method On-Off, P, PI, PD, PID
    A/D Converter 14 bit
    Sampling Time 100ms
    Proportional Band Adjustable between %0.0 and %100.0. Pb=%0.0 sets On-Off control.
    Control Period Adjustable between 1 and 125 seconds
    Hysteresis Adjustable between 1 and 50 °C/F
    Output Power Adjustable between %0 and %100 of the set value
    Mounting Method To be mounted on a rail
    Dimensions G48xY48xD87 mm
    Weight Approximately 250g (with packaging)
    Enclosure Material Self-extinguishing plastics used
