    Rail mount, Modbus address and baud rate adjustment with dip switch, dual set input, sensor and input selection, PID calculation, control output cancel, soft-start, RS-485 ModBus, analog/SSR/relay output, alarm/control output, heating/cooling, input offset, probe fault mode, 7 slave, 16-step profile control, contact output, timer/thermostat, software update.

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

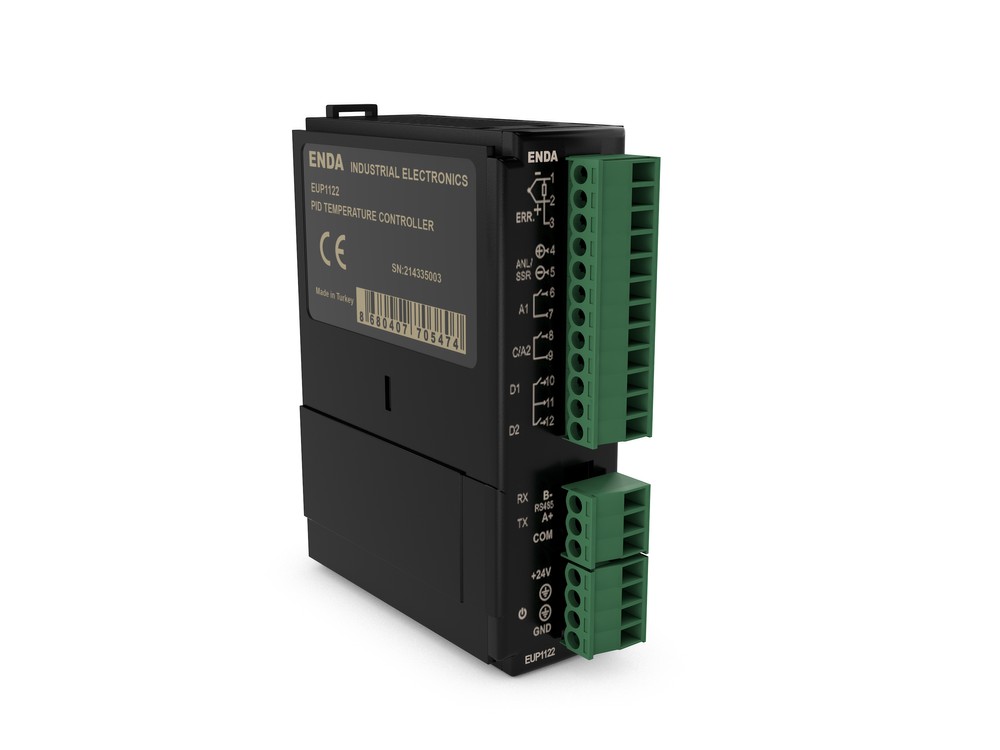

    EUP1122

    Mountable box for rail installation

    Modbus address and baud rate adjustable via dip switch, device can be restored to factory settings if desired.

    Selectable dual set value input

    Selectable sensor types: Pt-100, J, K, L, T, S, R

    Selectable input types: 0-20mA, 4-20mA, 0-10V, 2-10V, 0-25mV, and 0-50mV

    Programmable D1 and D2 digital contact input

    Automatic calculation of PID parameters (SELF TUNE)

    Ability to disable control outputs (for measurement purposes)

    Manual control of C/A2 or ANL/SSR outputs

    Soft-Start feature

    Communication via RS-485 ModBus protocol

    Selectable analog, SSR, or relay control output

    Selectable 0-20mA, 4-20mA, 0-10V, and 2-10V analog control outputs

    C/A2 relay output programmable as second alarm or control output

    A1 relay output programmable as first alarm or PID cooling control output

    Selectable Heating/Cooling control

    Input offset feature

    Ability to select relay positions or periodic operation in case of probe failure

    Programming via ModBus

    Ability to connect up to 7 slaves

    Ability to perform profile control with up to 16 steps

    Optional contact output for profile steps

    Ability to use timer and thermostat functions in profile control mode

    Software update capability via RS-485

    EUP1122

    Temperature / Storage Temperature: 0...50°C / -25...70°C

    Relative Humidity: Up to 80% until 31°C, then decreases linearly to 50% at 40°C

    Protection Class: According to EN 60529 standard, Front panel: IP65, Rear panel: IP20

    Altitude: Maximum 2000m

    Power Supply Voltage: 24V DC ±20%

    Power Consumption: Max 5VA

    Connection: Socket terminal

    Scale: Pt-100 resistance thermometer -199.9...600.0°C / -200...600°C, J (Fe-CuNi) thermocouple -30.0....600.0°C / -30....600°C, K (NiCr-Ni) thermocouple -30.0...999.9°C / -30...1300°C, L (Fe-CuNi) thermocouple -30.0....600.0°C / -30....600°C, T (Cu-CuNi) thermocouple -30.0...400.0°C / -30....400°C, S (Pt10Rh-Pt) thermocouple -40...1700°C, R (Pt13Rh-Pt) thermocouple -40...1700°C, 0-20mA, 4-20mA, 0-10V, 2-10V, 0-25mV, 0-50mV inputs -10000...10000 (max scale range 10000)

    Accuracy: Pt-100 resistance thermometer, 0-20mA, 4-20mA, 0-10V, 2-10V, 0-25mV, 0-50mV input: ±0.2% (of the full scale) ±1 digit, Thermocouples: ±0.5% (of the full scale) ±1 digit

    Line Resistance: For thermocouples, maximum 100 ohms, for 3-wire Pt-100, maximum 20 ohms

    C/A2 Output: Relay: 250V AC, 2A (for resistive load), NO, can be selected as Control or Alarm2 output

    A1 Output: Relay: 250V AC, 2A (for resistive load), NO/NC selectable (A1 output)

    ANL/SSR Output: 0-20mA, 4-20mA, 0-10V, 2-10V analog and SSR selectable mA output and SSR mode, max load resistance 600ohm, V output source resistance 500ohm

    Relay Life: No load 30,000,000 switching, 250V AC, 2A resistive load 300,000 switching

    Control Type: Single set-point and alarm control

    Control Method: On-Off, P, PI, PD, PID

    A/D Converter: 14-bit

    Sampling Time: 100ms

    Proportional Band: Adjustable between 0.0% to 100.0%. Pb=0.0 will select On-Off control

    Control Period: Adjustable between 1 to 125 seconds

    Hysteresis: Adjustable between 1°C/F to 50°C/F

    Output Power: Adjustable between 0% and 100% of the set value

    Mounting Type: Can be mounted on a rail

    Dimensions: G29xY90xD64 mm

    Weight: Approximately 200g (with packaging)

    Housing Material: Self-extinguishing plastics used
