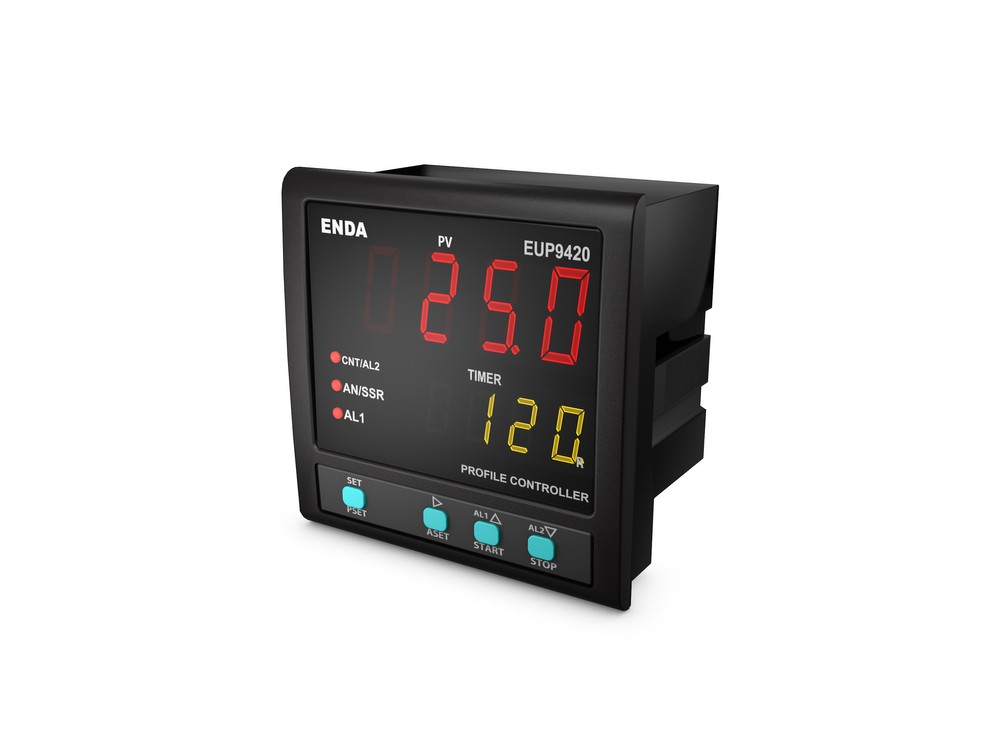

    EUP9420

    Dual set input, selectable sensors and inputs, 16-step profile control, programmable outputs, continue after power failure, PID automatic calculation, digital input/function button, soft-start, analog/relay output, heating/cooling control, probe fault mode, RS-485 ModBus. CE marked.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    EUP9420

    Selectable dual setpoint input

    Selectable sensor types: Pt-100, J, K, L, T, S, R

    Selectable input types: 0-20mA, 4-20mA, 0-10V, 2-10V, 0-25mV, 0-50mV

    Ability to perform profile control up to 16 steps

    Programmable AL1 and AL2 outputs for each step

    Ability to resume from where it left off in case of power failure

    Automatic PID parameter calculation (SELF TUNE)

    Three different functions can be assigned to digital inputs

    Three different functions can be assigned to the F function key

    Soft-start feature

    Selectable analog, SSR, or relay control output

    Selectable 0-20mA and 4-20mA analog control output

    C/A2 relay output that can be used as second alarm or temperature control output

    A1 relay output that can be used as first alarm output or PID cooling output

    Selectable heating/cooling control

    Offset feature for input

    Ability to select relay positions in case of probe failure or periodic and automatic periodic operation

    Communication via RS-485 ModBus protocol

    CE certified according to EN standards

    Ambient/Storage Temperature 0...50 °C / -25...70 °C
    Relative Humidity Works in environments with up to 80% humidity at 31°C, then decreasing linearly to 50% at 40°C
    Protection Class According to EN 60529 standard: Front panel: IP65, Rear panel: IP20
    Altitude Up to 2000m
    Supply Voltage 90-250V AC 50/60Hz or 10-30V DC / 8-24V AC
    Power Consumption 5VA
    Connection Socketed terminal block
    Scale Pt-100 resistance thermometer: -199.9...600.0 °C / -200...600 °C
    J (Fe-Const) thermocouple: -30.0...600.0 °C / -30...600 °C
    K (NiCr-Ni) thermocouple: -30.0...999.9 °C / -30...1300 °C
    L (Fe-CuNi) thermocouple: -30.0...600.0 °C / -30...600 °C
    T (Cu-CuNi) thermocouple: -30.0...400.0 °C / -30...400 °C
    S (Pt10Rh-Pt) thermocouple: -40...1700 °C
    R (Pt13Rh-Pt) thermocouple: -40...1700 °C
    0-20mA, 4-20mA, 0-10V, 2-10V, 0-25mV, 0-50mV inputs: -1999...9999 (maximum scale range 10000)
    Accuracy Pt-100 (resistance thermometer), 0-20mA, 4-20mA, 0-10V, 2-10V, 0-25mV, 0-50mV input: ±0.2% (of full scale) ±1 digit
    Thermocouple: ±0.5% (of full scale) ±1 digit
    Line Resistance Maximum 100ohm for thermocouple, maximum 20ohm for 3-wire Pt-100
    C/A2 Output Relay: 250V AC, 2A (for resistive load), NO+NC (can be selected as Control or Alarm2 output)
    A1 Output Relay: 250V AC, 2A (for resistive load), NO (can be selected as Alarm1 and Cooling control output)
    ANL/SSR Output 0-20mA, 4-20mA, 24V 20mA maximum SSR output. Max. load resistance 600 ohms (12-bit accuracy ±0.2%)
    Relay Life No load: 30,000,000 switching; 250V AC, 2A resistive load: 300,000 switching
    Control Mode Single set-point and alarm control
    Control Method On-Off, P, PI, PD, PID
    A/D Converter 14-bit
    Sampling Time 100ms
    Proportional Band Adjustable between 0.0% and 100.0%. Pb=0.0% selects On-Off control.
    Control Period Adjustable between 1 and 125 seconds
    Hysteresis Adjustable between 1 and 50 °C/F
    Output Power Adjustable between 0% and 100% of the set value
    Mounting Method Mounted by compression onto a panel
    Dimensions 96x96x50 mm
    Weight Approximately 400g (with packaging)
    Case Material Self-extinguishing plastics used
