    EI2041

    4-digit digital display, adjustable scale from -1999 to 4000, decimal point (1-3 digits), measurement unit display, 4 input types (0-20mA, 4-20mA, 0-1V, 0-10V), user calibration, 4-step sampling time, max/min value storage, 2 contact outputs, lower/upper set value control, independent/deviation alarm, sensor power supply output, RS-485 Modbus RTU, CE marked.

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

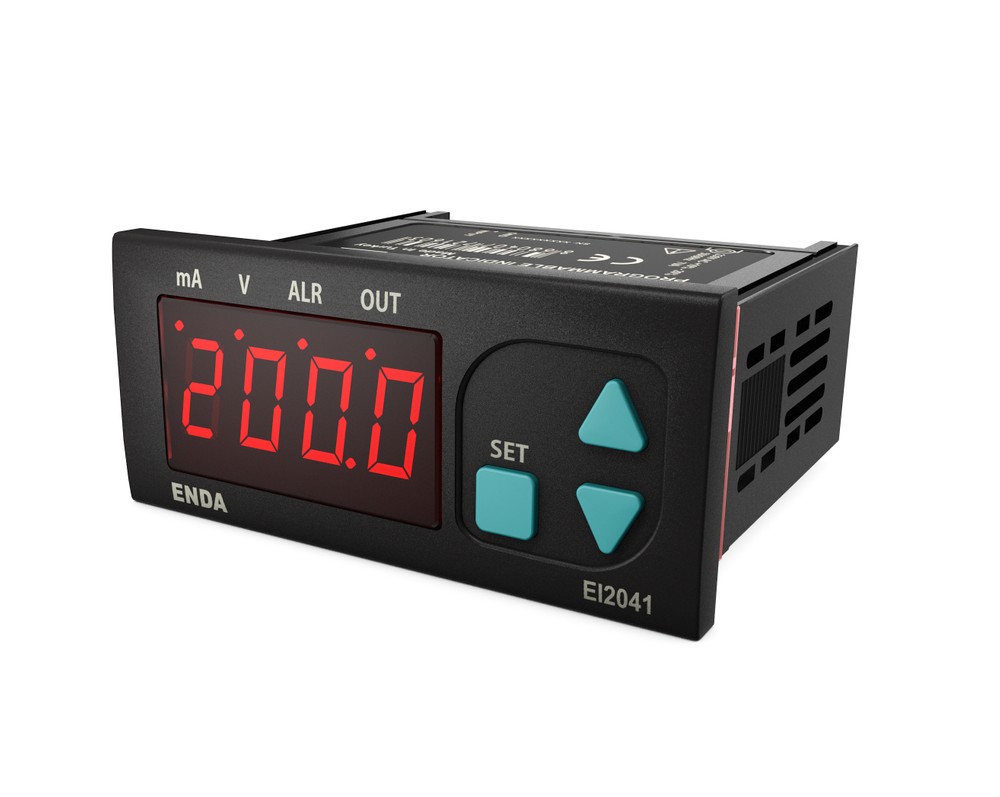

    EI2041

    4-digit digital display

    The display scale is adjustable between -1999...4000

    Decimal point can be adjusted between 1st and 3rd decimal places

    Measurement unit can be displayed

    Four different selectable standard input types (0-20mA, 4-20mA, 0-1V, 0-10V)

    The user can calibrate the device based on the input type they choose

    Sampling time adjustable in four steps

    Maximum and minimum measurement values can be stored and held on the display

    Two contact outputs for output and alarm control

    Control options for below and above set point

    Selectable independent, deviation, and band alarms

    Sensor power output

    Communication via RS-485 Modbus RTU protocol

    CE marked according to EN standards

    Operating/Storage Temperature 0...+50 °C / -25...+70 °C
    Supply Voltage 90-250V AC 50/60Hz or 10-30V DC/ 8-24V AC
    Power Consumption 7VA
    Weight Approximately 350g (with packaging)
    Connection Screw terminal block
    Scale -1999...4000 adjustable
    Accuracy 0-1V DC: ±0.5% (of full scale)
    0-10V DC: ±0.5% (of full scale)
    0-20mA DC: ±0.5% (of full scale)
    4-20mA DC: ±0.5% (of full scale)
    Measurement Range 0-1V DC: Max 1.1V
    0-10V DC: Max 12V
    0-20mA DC: Max 25mA
    4-20mA DC: Max 25mA
    Input Impedance 0-1V DC: 100kohm
    0-10V DC: 100kohm
    0-20mA DC: 10ohm
    4-20mA DC: 10ohm
    Sensor Power Output All sensor power outputs are max 50mA (regulated and isolated)
    Alarm Output 2 Relays: 250V AC, 8A (for resistive load), NO
    Relay Life No load: 30,000,000 switching operations; 250V AC, 8A resistive load: 100,000 switching operations
    Control Type Dual set-point control
    Control Method On-Off
    Hysteresis Adjustable between 1...200
    Mounting Method Mounted in panel
    Dimensions G77xY35xD61 mm
    Weight Approximately 350g (with packaging)
    Housing Material Self-extinguishing plastics
