    EMM9510

    It features a 3.5-inch TFT display with 5-digit reading, 10 adjustable address readings, slave register updates, multiple/single value display, and adjustable baud rate. It is CE compliant.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

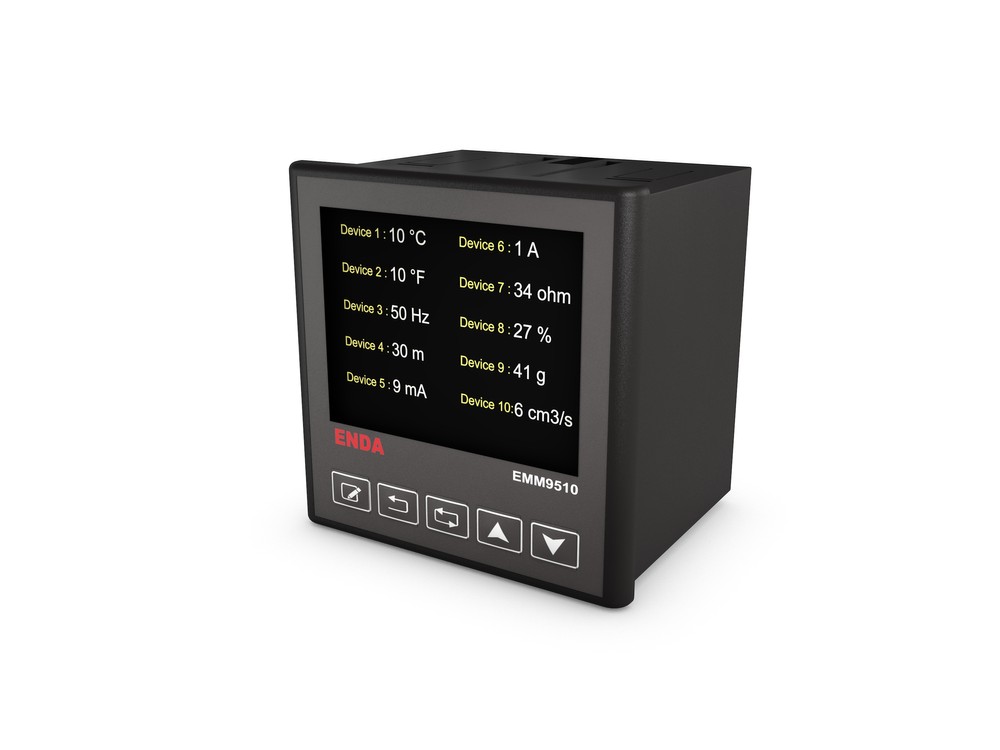

    EMM9510

    5-digit display with a 3.5-inch TFT graphic display

    10 adjustable address readings

    Updating slave registers via the master

    Multiple and single value display of the read values

    Adjustable baud rate

    CE marked according to EN standards

    Ambient/Storage Temperature 0...+50 °C / -25...+70 °C
    Relative Humidity Works at up to 80% humidity at 31°C, then linearly decreasing to 50% at 40°C
    Protection Class According to EN 60529 standard: Front panel: IP65, Rear panel: IP20
    Altitude Up to 2000m
    Power Supply Voltage 90-250V AC 50/60Hz
    Power Consumption 7VA
    Connection Socket terminal
    Mounting Method Mounted by compression into the panel
    Dimensions W96xH96xD81 mm
    Weight Approximately 400g (with packaging)
    Enclosure Materials Self-extinguishing plastics used
