    EI4430

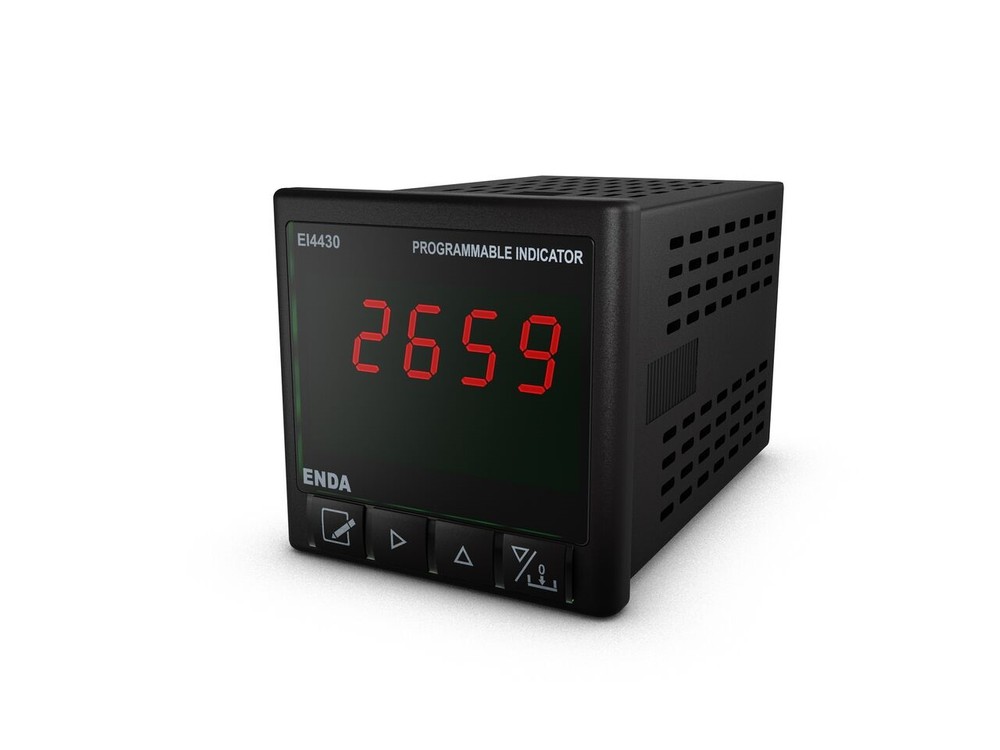

    4-digit LCD display, adjustable scale from -1999 to 9999, decimal point (0-0.000 digits), 4 selectable input types (0-20mA, 4-20mA, 2-10V, 0-10V), numerical filter setting, RS-485 Modbus RTU communication, CE marked.

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    EI4430

    4-digit LCD display

    Display scale adjustable between -1999...9999

    Decimal point adjustable between 0 to 0.000 digits

    Four selectable standard input types (0-20mA, 4-20mA, 2-10V, 0-10V)

    Adjustable numerical filter value for the input

    RS-485 Modbus RTU communication feature

    CE marked according to EN standards

    Operating/Storage Temperature 0...+50 °C / -25...+70 °C
    Relative Humidity Up to 80% at 31 °C, then decreasing linearly to 50% at 40 °C
    Protection Class According to EN 60529 standard: Front panel: IP65, Rear panel: IP20
    Altitude Up to 2000m
    Power Supply Voltage 90-250V AC 50/60Hz or 10-30V DC / 8-24V AC
    Power Consumption 5VA
    Connection Screw terminal
    Scale Adjustable between -1999...9999
    Accuracy 2-10V DC: ±0.2% (of full scale) ±1 digit
    0-10V DC: ±0.2% (of full scale) ±1 digit
    0-20mA DC: ±0.2% (of full scale) ±1 digit
    4-20mA DC: ±0.2% (of full scale) ±1 digit
    Mounting Type Mounted by compression on the panel
    Dimensions G48xY48xD87 mm
    Weight Approximately 230g (with packaging)
    Case Material Self-extinguishing plastics used
