    EI7041

    4-digit digital display, adjustable scale from -1999 to 4000, decimal point (1-3 digits), 4 input types (0-20mA, 4-20mA, 0-1V, 0-10V), user calibration, 4-step sampling, max/min value storage, 2 outputs, alarm options, sensor power output, RS-485 Modbus RTU, CE marked.

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün

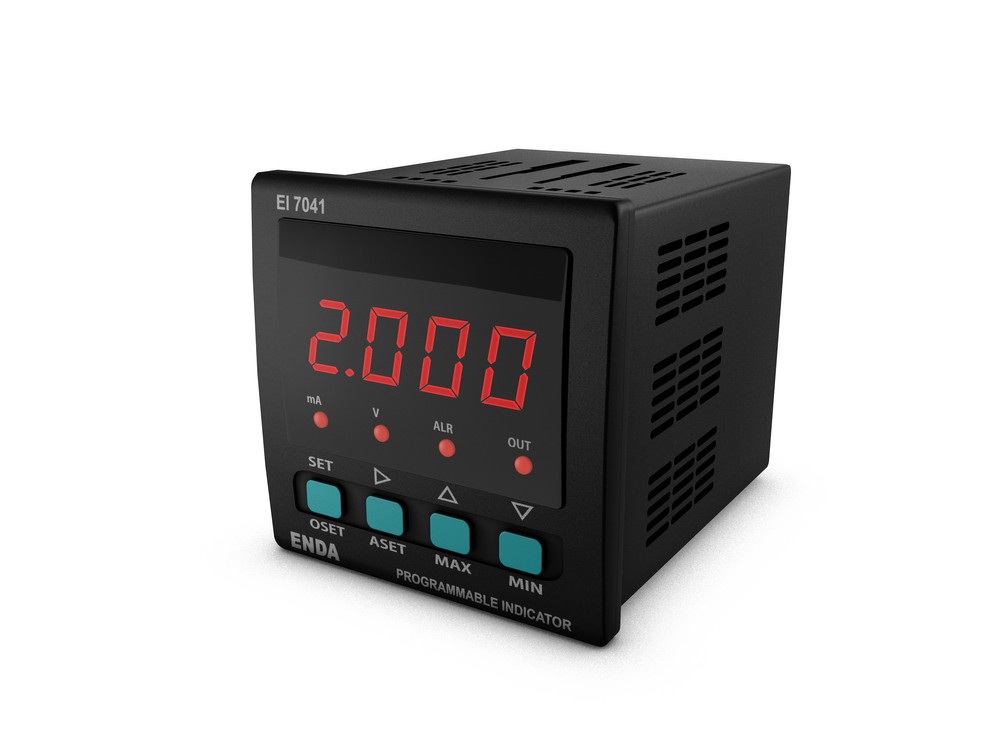

    EI7041

    4-digit digital display

    Display scale adjustable between -1999...4000

    Decimal point adjustable between 1st to 3rd decimal places

    Measurement unit can be displayed

    Four different selectable standard input types (0-20mA, 4-20mA, 0-1V, 0-10V)

    User can calibrate the device according to the chosen input type

    Sampling time adjustable in four steps

    Ability to store and display maximum and minimum measurement values

    Two contact outputs for output and alarm control

    Control options for below and above set value

    Selectable independent, deviation, and band alarm

    Sensor power output

    RS-485 Modbus RTU communication protocol support

    CE marked according to EN standards

    Ambient/Storage Temperature 0...50 °C / -25...70 °C
    Supply Voltage 90-250V AC 50/60Hz or 10-30V DC / 8-24V AC
    Power Consumption 7VA
    Weight Approx. 350g (with packaging)
