    EMS420 Magnetic Linear Encoders

    EMS420 Magnetic Scales are used in press brakes. They are compatible with DELEM, CYBELEC, ESA, and STEP devices. They offer a standard resolution of 5 µm (0.005). Supply voltage options are 5Vdc - TTL or 24Vdc - PPL.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Sonraki Ürün

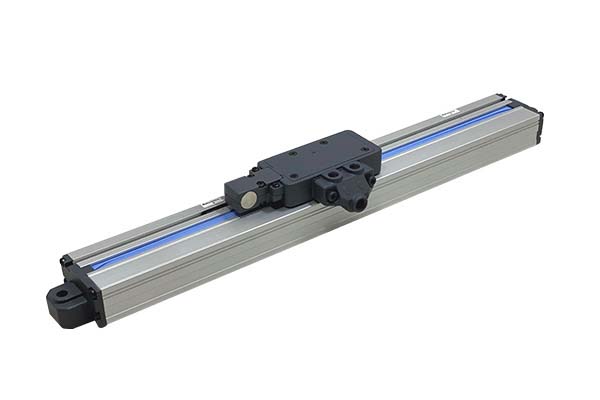

    EMS420 MAGNETIC LINEAR ENCODERS

    EMS420 Magnetic Scales are used in press brakes.

    EMS420 Magnetic Scales perform non-contact measurements as there is no mechanical friction between the reader sensor and the scale.

    Special precautions have been taken against vibrations caused by press brake machines.

    The orientation of the scale can be easily changed by the user.

    Magnetic scale lengths are manufactured up to 2000 mm.

    Supply voltage options: 5Vdc - TTL or 24Vdc - PPL.

    Provides incremental (encoder/pulse) output signal.

    Standard resolution is 5 µm (0.005). Optional resolutions are also available.

    The reader sensor bearing minimizes mechanical contraction and parallelism issues, protecting the sensor against breakage.

    With IP65 Protection Class, it is resistant to oil, water, dust, etc.

    Cable lengths are produced as standard 3.5 and 5 meters. Optionally, single-piece cables up to 50 meters can be manufactured.

    Features movable reference point capability.

    Offers high stability and quadrature output features.

    Compatible with DELEM, CYBELEC, ESA, and STEP devices.
