    EMG130 MAGNETIC LINEAR ENCODERS

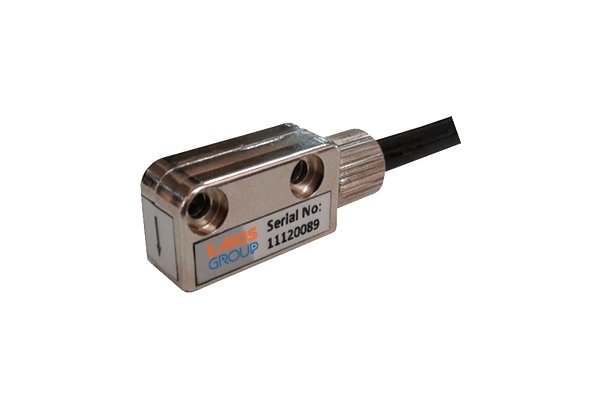

    EMG130 Magnetic Reader Encoders work with EMS110 and EMS200 Series Magnetic Linear Scales.

    They read position data precisely without contacting the magnetic band, moving at a distance of 0.1 – 2 mm, and transmit it as encoder pulses.

    Available in both cabled and coiled models, with or without chip wipers.

    Supply voltage options: 5Vdc - TTL or 24Vdc - PPL.

    Provides incremental (encoder/pulse) output signals.

    Magnetic Linear Encoders offer a standard resolution of 5 µm (0.005).

    With IP67 Protection Class, they are resistant to oil, water, dust, etc.

    Cables are protected with Steel Galvanized Spiral tubing to withstand harsh industrial conditions.

    Standard cable lengths are 3 and 5 meters. Optionally, single-piece cables up to 50 meters can be produced.

    Thanks to the wipers integrated into the sensor body, the system is effectively protected against external elements such as dust, dirt, and chips that may accumulate on the magnetic band or profile during movement.

    Resolution 5µm, 10µm, 20µm, 25µm, 62.5µm, 80µm, 100µm
    Operating Temperature -25°C ... +85°C
    Operating Speed 3 m/s
    Electrical Connection D-Sub 9 pin, 5 or 8 x 0.14 mm² shielded cable
    Supply Voltage PP: 10..30 VDC or TTL: 5 VDC
    Output Type Push-Pull or TTL RS422 Line Driver
    Protection Class IP67
    Magnetic Band Type B1, B2, B5
    Output Signals A, /A, B, /B, Z, /Z
    Current Consumption Maximum 40 mA (Per Channel)
    Housing Material Aluminum
    Repeatability ±1 Pulse
    Measuring Principle Magnetic
    Measuring Length Up to 100 meters
